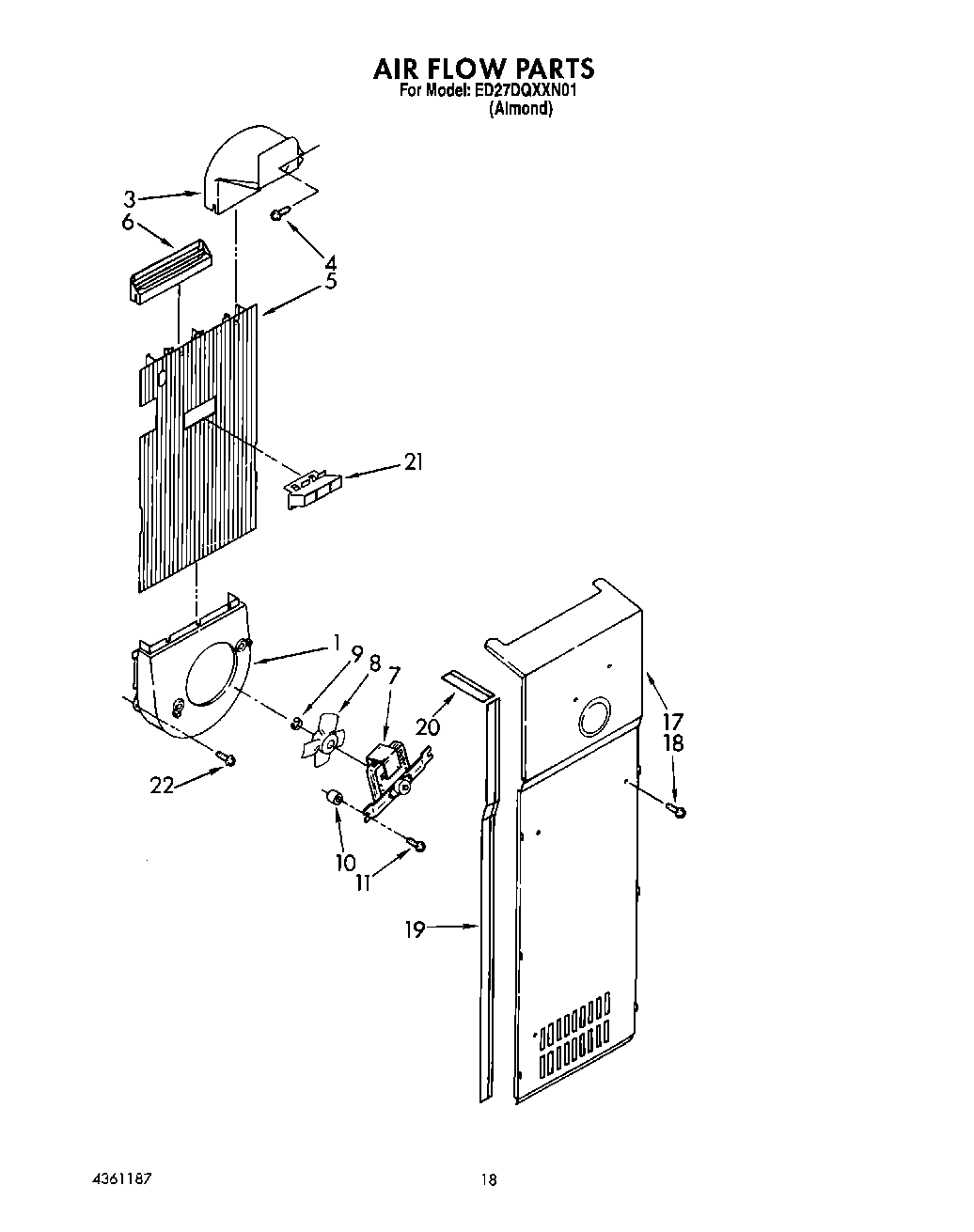

ED27DQXXN01 11 – AIR FLOW

Products

Position	Product
1	Fan Scroll
3	Air Scoop
4	WP488729 Whirlpool Refrigerator Door Screw
5	Air Duct Freezer
6	Diffuser Air Duct
7	Fan Motor
8	Blade, Fan
9	Ring, Compression
10	Fan Grommet (2)
11	Screw (2)
17	Cover, Evaporator
18	SCREW
19	Gasket, Evaporator Cover (2)
20	Gasket, Evaporator Cover Top (2)
21	2182146 Whirlpool Refrigerator Duct
22	WP489478 Whirlpool Refrigerator Screw
