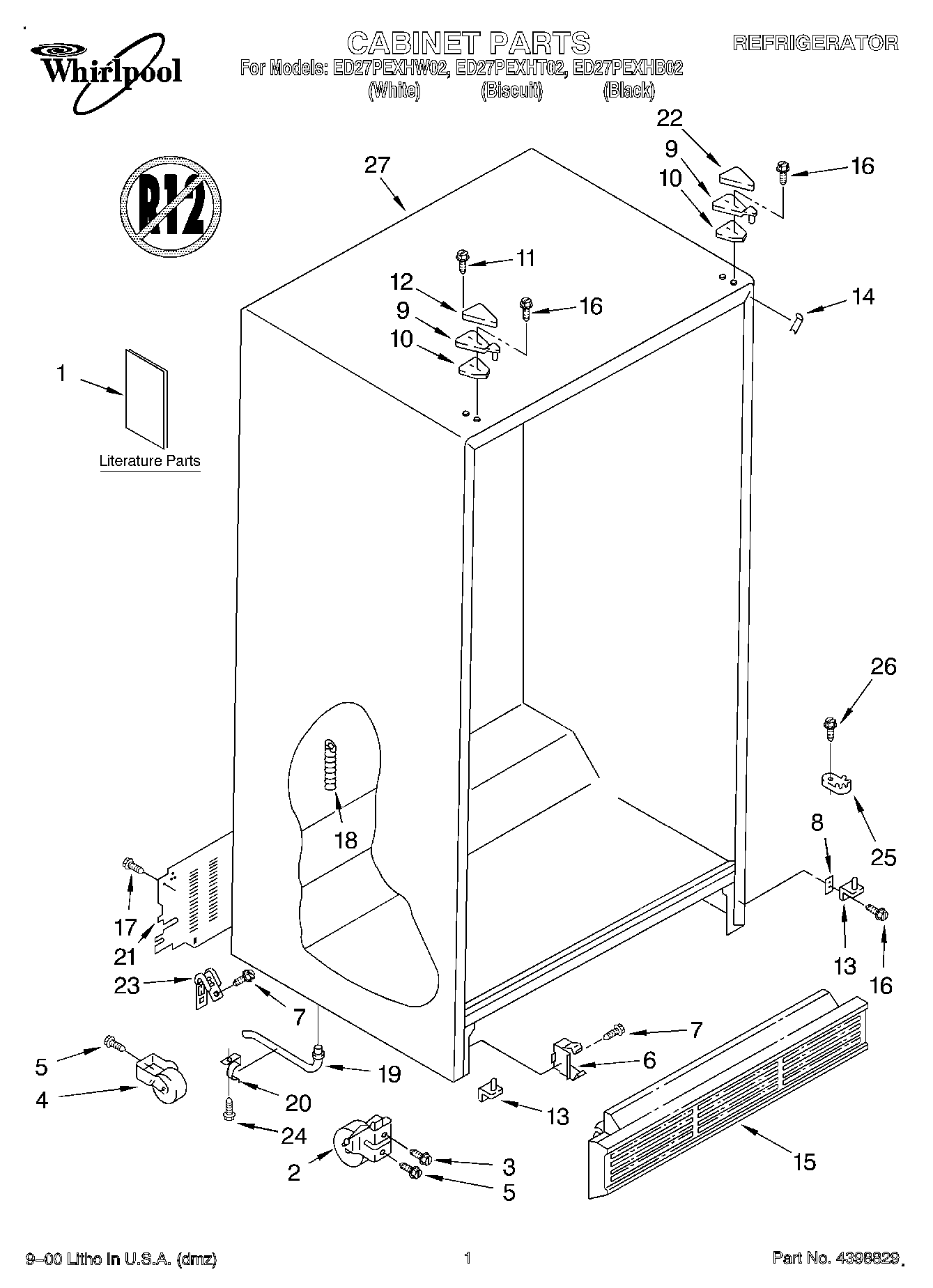

ED27PEXHT02 01 – CABINET, LITERATURE

Products

Position	Product
	Modular Icemaker Service Sheet
	Energy Label
	Literature Parts (Service & Wiring Sheet)
1	LITERATURE PARTS (Use & Care Guide)
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
8	WP2181911 Whirlpool Refrigerator Shim
9	WP2196046 Whirlpool Refrigerator Door Hinge
10	Shim, Hinge Top
11	Screw
12	WP1129262 Whirlpool Refrigerator Cover
13	8201707 Whirlpool Door Hinge
14	Filler, Wrapper (Biscuit)
14	Filler, Wrapper (Black)
14	Filler, Wrapper (White)
15	WPW10283946 Whirlpool Refrigerator Grille
15	W10283947 Whirlpool Grille Assembly
16	WP489497 Whirlpool Screw
17	WP489464 Whirlpool Refrigerator Screw
18	W11566763 Whirlpool Fitting
19	WP1108438 Whirlpool Refrigerator Extension
20	WP1108439 Whirlpool Refrigerator Clip
21	WP2188755 Whirlpool Rear Panel
22	1119787 Whirlpool Refrigerator Hinge Cover
22	Hinge Cover (Black)
23	549193 Whirlpool Refrigerator Power Clamp
25	WPW10329686 Whirlpool Door Cam Black
26	WP489483 Whirlpool Screw
27	Cabinet (Not A Serviceable Part)
