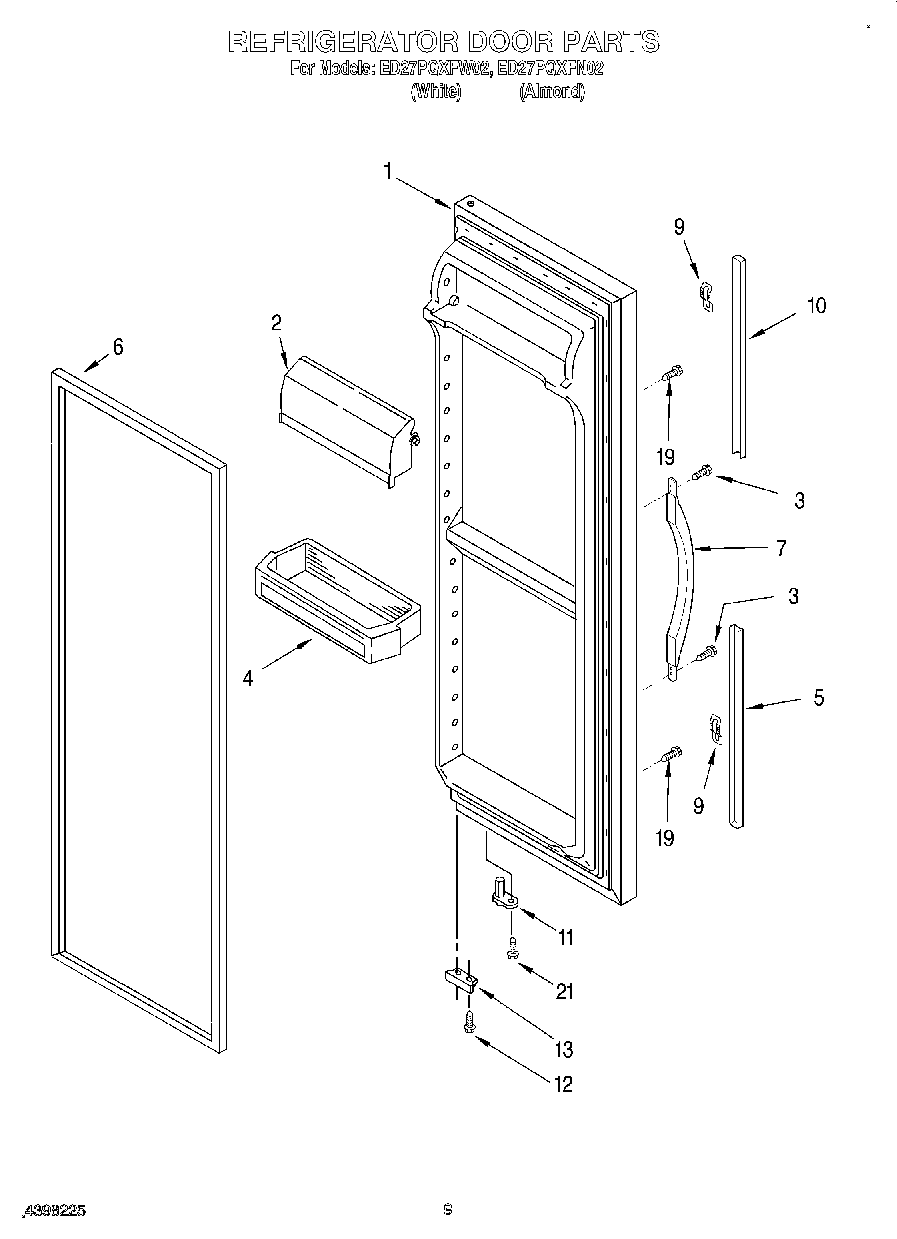

ED27PQXFN02 06 – REFRIGERATOR DOOR

ED27PQXFN02 06 – REFRIGERATOR DOOR

Written by

in

ED27PQXFN02 06 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes Item No.8) (Almond)
1Refrigerator Door (Includes Item No.8) (White)
2WP2256101 Whirlpool Dairy Door
3WP489491 Whirlpool Refrigerator Screw
4Shelf Bin (4)
5Extension, Bottom (White)
5Extension, Bottom (Almond)
62159075 Whirlpool Door Gasket Seal
7Handle, Center (White)
7Handle, Center (Almond)
9WP2195327 Whirlpool Refrigerator Clip
10Extension, Top (Almond)
10WP2194973W Whirlpool Door Trim
11WP2182179 Whirlpool Cam Closer
12WP489483 Whirlpool Screw
13Bracket, Door Stop (Chrome)
19WP3400852 Whirlpool Refrigerator Screw
21WP3400012 Whirlpool Refrigerator Screw
