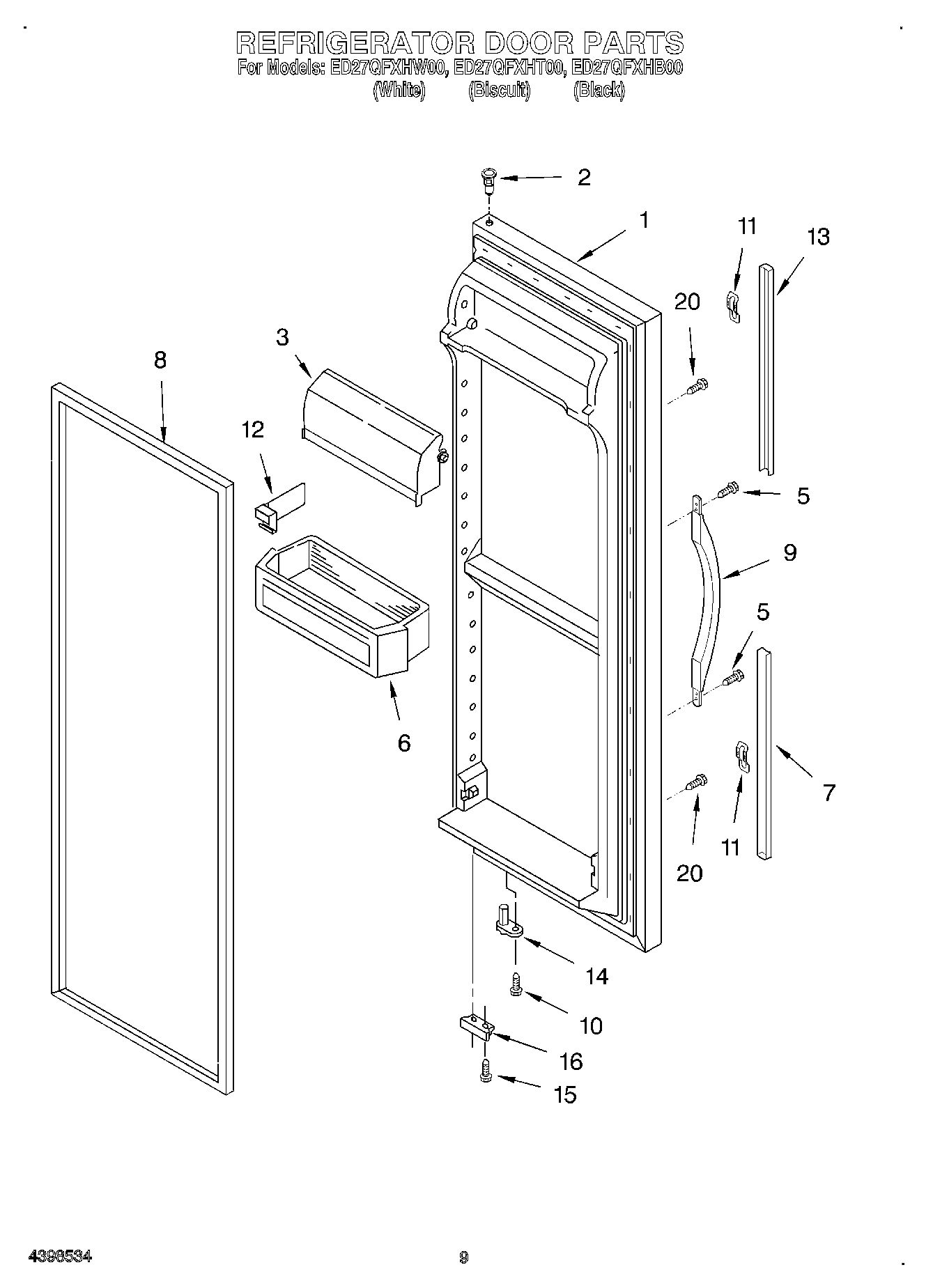

ED27QFXHB00 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Includes Item 6) (Biscuit)
1	Refrigerator Door (Includes Item No.8) (Black)
1	Refrigerator Door (Includes Item No.8) (White)
2	WP2182181 Whirlpool Refrigerator Thimble
3	WP2256101 Whirlpool Dairy Door
5	WP489491 Whirlpool Refrigerator Screw
6	WP2203872 Whirlpool Refrigerator Cantilever Bin
7	Extension, Bottom (Biscuit)
7	Extension, Bottom (White)
7	WP2194969B Whirlpool Refrigerator Handle Trim
8	2159083 Whirlpool Gasket Door
8	2159075 Whirlpool Door Gasket Seal
9	WP2186649B Whirlpool Refrigerator Handle
9	Handle, Center (White)
9	Handle, Center (Biscuit)
10	WP3400012 Whirlpool Refrigerator Screw
11	WP2195327 Whirlpool Refrigerator Clip
12	Divider, Bin
13	WP2194973W Whirlpool Door Trim
13	Extension, Top (Biscuit)
13	Extension, Top (Black)
14	WP2182179 Whirlpool Cam Closer
15	WP489483 Whirlpool Screw
16	Bracket, Door Stop (Chrome)
20	WP3400852 Whirlpool Refrigerator Screw
