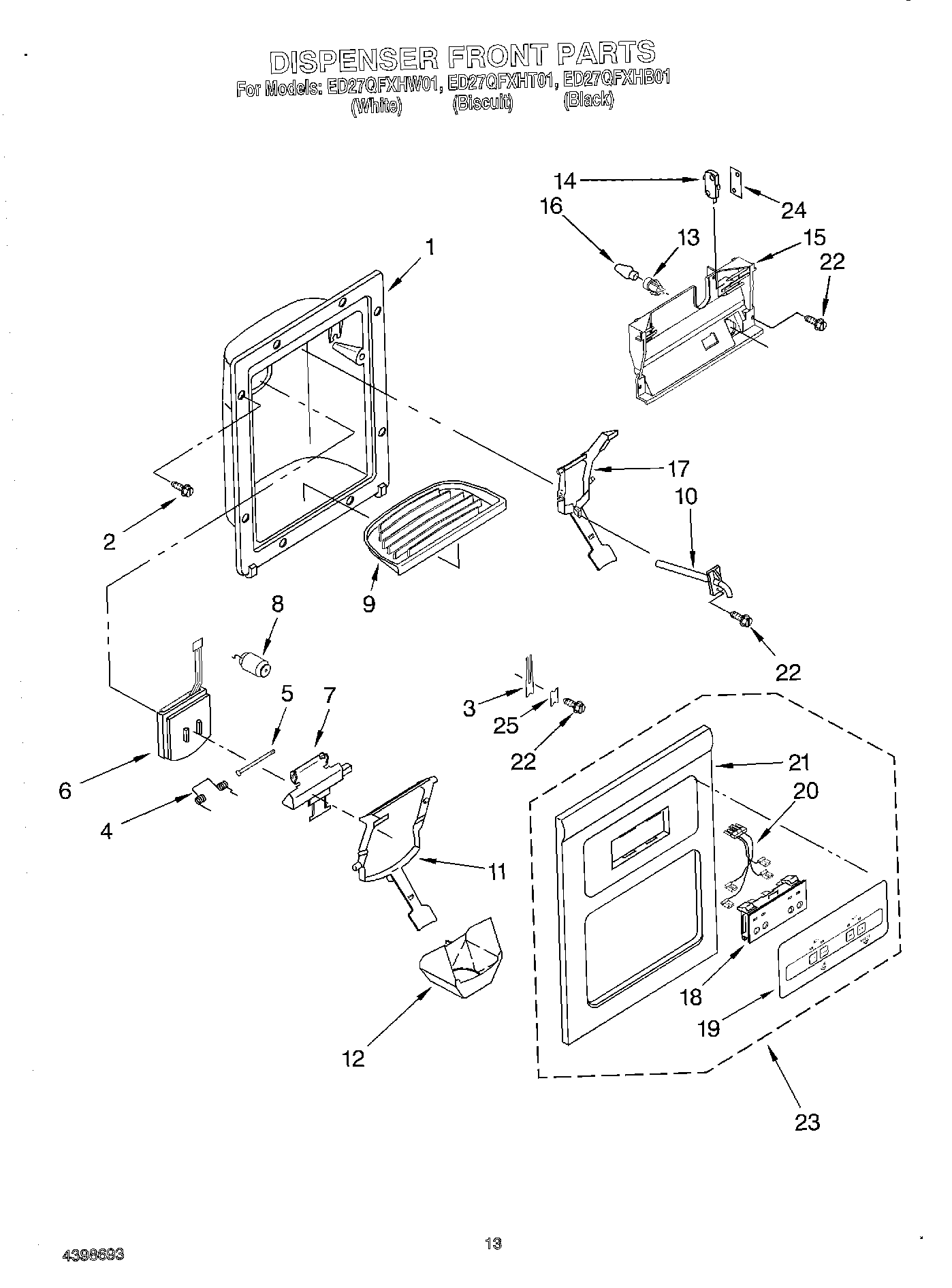

ED27QFXHT01 08 – DISPENSER FRONTadmin2025-04-26T09:45:56+00:00ED27QFXHT01 08 – DISPENSER FRONT
Products
| Position | Product |
|---|
| 1 | Housing, Dispenser (Not a Serviceable Part) |
| 2 | WP489069 Whirlpool Compactor Screw |
| 3 | WP2194719 Whirlpool Refrigerator Clip |
| 4 | WPW10224328 Whirlpool Refrigerator Spring |
| 5 | WP2196195 Whirlpool Refrigerator Door Pin |
| 6 | WP2180353 Whirlpool Dispenser Door |
| 7 | Door Mechanism Assembly |
| 8 | Delay Mechanism |
| 9 | Grille, Overflow (Black) |
| 9 | Grille, Overflow (White) |
| 9 | Grille, Overflow (Biscuit) |
| 10 | WP4388152 Whirlpool Refrigerator Fitting |
| 11 | Lever, Ice Dispenser (Biscuit) |
| 11 | Lever, Ice Dispenser (Black) |
| 11 | Lever, Ice Dispenser (White) |
| 12 | WP2180224 Whirlpool Dispenser Funnel Guide |
| 13 | 2180200 Whirlpool Refrigerator Socket |
| 14 | WP2162361 Whirlpool Switch |
| 15 | WP2180226 Whirlpool Ice Dispenser Control Switch Bracket |
| 16 | WP22002263 Whirlpool Dryer 10W Light Bulb |
| 17 | WPW10152858 Whirlpool Refrigerator Dispenser Arm |
| 17 | Lever, Water Dispenser (Biscuit) |
| 18 | WP2180279 Whirlpool Refrigerator Switch |
| 19 | Overlay, Front Cover (White) |
| 19 | Overlay, Front Cover (Biscuit) |
| 19 | Overlay, Front Cover (Black) |
| 20 | Wire Assembly |
| 21 | Front Cover, Housing (Not Available, Order No.23) |
| 22 | WP3400906 Whirlpool Refrigerator Screw |
| 23 | Front Cover Assembly (Includes Items 18, 19, 20 & 21) (Black) |
| 23 | Front Cover Assembly (Includes Items 18, 19, 20 & 21) (Biscuit) |
| 23 | Front Cover Assemb |
| 24 | Spacer, Switch (2) |
| 25 | WP2195051 Whirlpool Refrigerator Clip |
