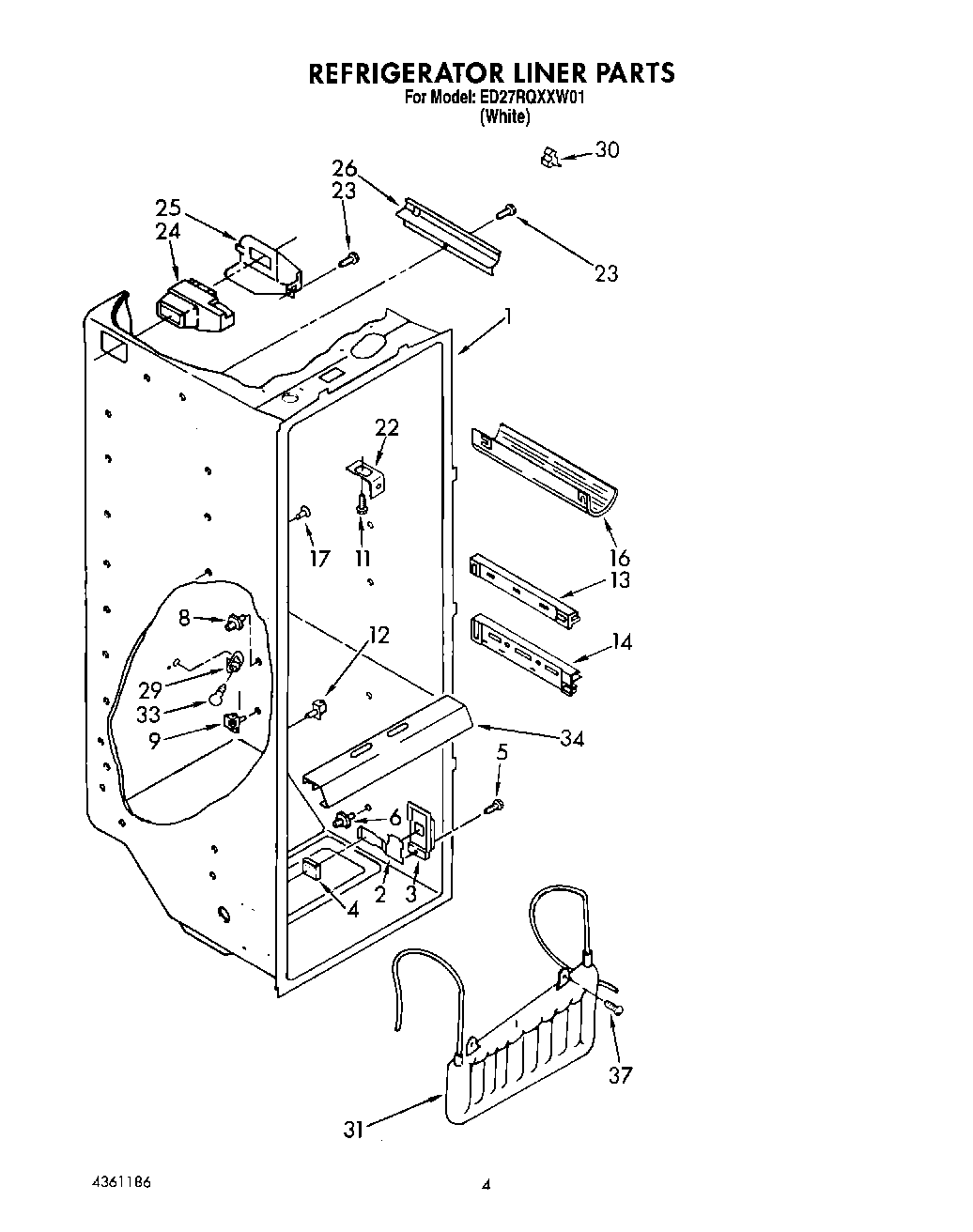

ED27RQXXW01 03 – REFRIGERATOR LINER

ED27RQXXW01 03 – REFRIGERATOR LINER

Written by

in

ED27RQXXW01 03 – REFRIGERATOR LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Escutcheon, Meat Pan Control
3Slide, Meat Pan Control
4Pad, Foam
5Screw, 8-15 x 1/2 (4)
6WP2149540 Whirlpool Shelf Support
84388538 Whirlpool Refrigerator Stud Shelf Kit (White)
9Stud (2)
11WP488488 Whirlpool Refrigerator Screw
13Track, Shelf (Left Side (2))
13Track, Shelf (Right Side (2))
14WP1115265 Whirlpool Refrigerator Track
14Track, Shelf (Right Side)
16Wine Rack
17WP1114631 Whirlpool Refrigerator Shelf Support Stud
22WP2256085 Whirlpool Refrigerator Retainer
23W10759522 Whirlpool Screw
24WPW10151374 Whirlpool Refrigerator Diffuser
252152019 Whirlpool Refrigerator Cover
262150331 Whirlpool Refrigerator Wire Cover
294387478 Whirlpool Refrigerator Light Socket
302215823 Whirlpool Refrigerator Clip
31WP2256126 Whirlpool Refrigerator Reservoir
33RANGE ONLY 40W 120V APPL BULB
34Light Lens
37Screw (2)
