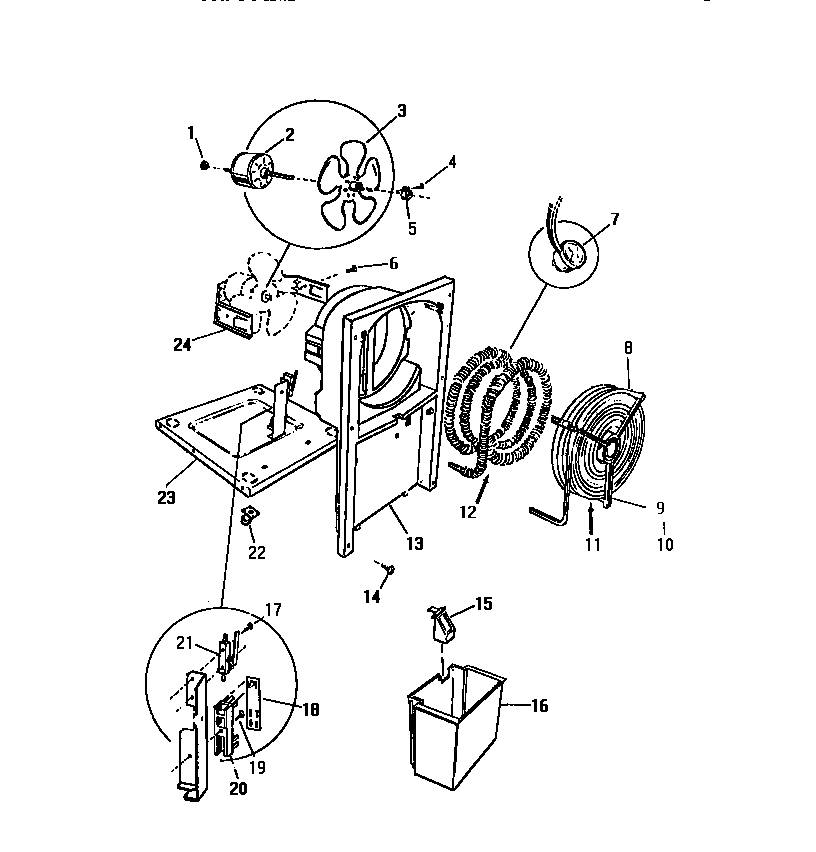

ED287H6 03 – FAN, CONDENSER, EVAPORATOR

Products

Position	Product
1	NUT-MOTOR
2	WCI E809301
3	WCI E806702
4	WCI C502009
5	CLAMP-FAN MTR.
7	CONTROL-DEFROST
8	WCI E808406
9	WCI E807801
10	WCI E807901
11	WCI 743B510H05
12	WCI E712602
13	WCI E807101
14	SCREW-SHELL
15	FLOAT-CONTAINER
16	WCI E808301
17	SCREW-FRNT LOCKING (NON-ILLUSTRATED)
18	WCI E643201
19	WCI A108303
20	WCI E642402
21	WCI E643101
22	WCI Y53946
23	WCI E808101
24	BRKT.-MTR. MTG.
