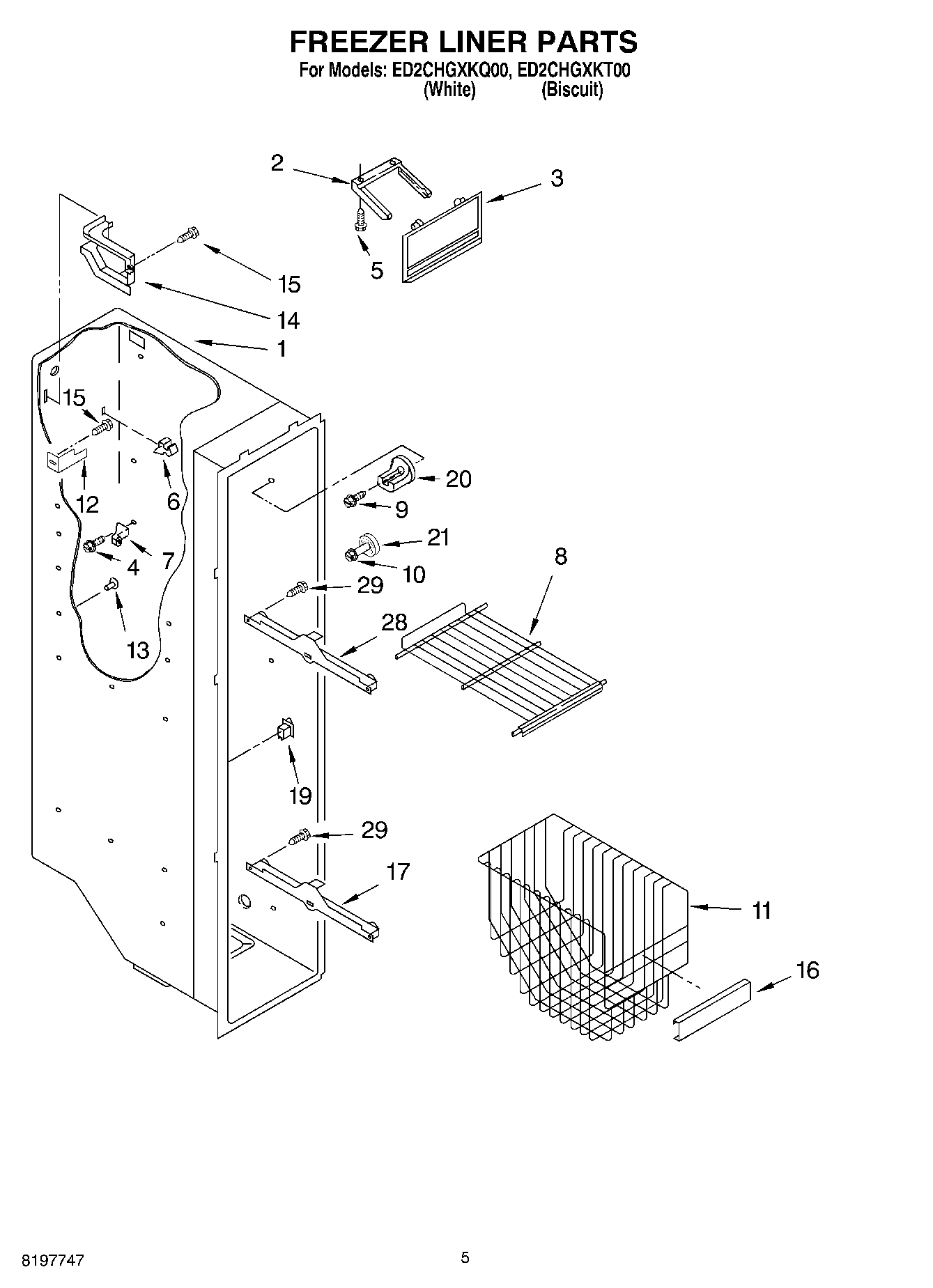

ED2CHGXKT00 04 – FREEZER LINER

ED2CHGXKT00 04 – FREEZER LINER

Written by

in

ED2CHGXKT00 04 – FREEZER LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Slide, Ice Door
32171712 Whirlpool Refrigerator Ice Door
5WP489478 Whirlpool Refrigerator Screw
62215823 Whirlpool Refrigerator Clip
74388405 Whirlpool Refrigerator Shelf Stud
8Shelf (2)
8WP2174249K Whirlpool Refrigerator Wire Shelf
9W10142289 Whirlpool Air Conditioner Screw
10WP3400806 Whirlpool Screw
11Freezer Bin
12Bracket, Fill Tube
13Grommet
14Cover, Wiring
15SCREW
162195904K Whirlpool Refrigerator Basket Trim
17Slide, Basket (Left Side (2))
17Slide, Basket (Right Side (2))
19W11457217 Whirlpool Refrigerator Rocker Switch Combination
20Stud, Rear
21WP2196483 Whirlpool Refrigerator Shelf Stud
28W10845585 Whirlpool Refrigerator Track
28W10845583 Whirlpool Refrigerator Track
29718257 Whirlpool Dishwasher Screw
