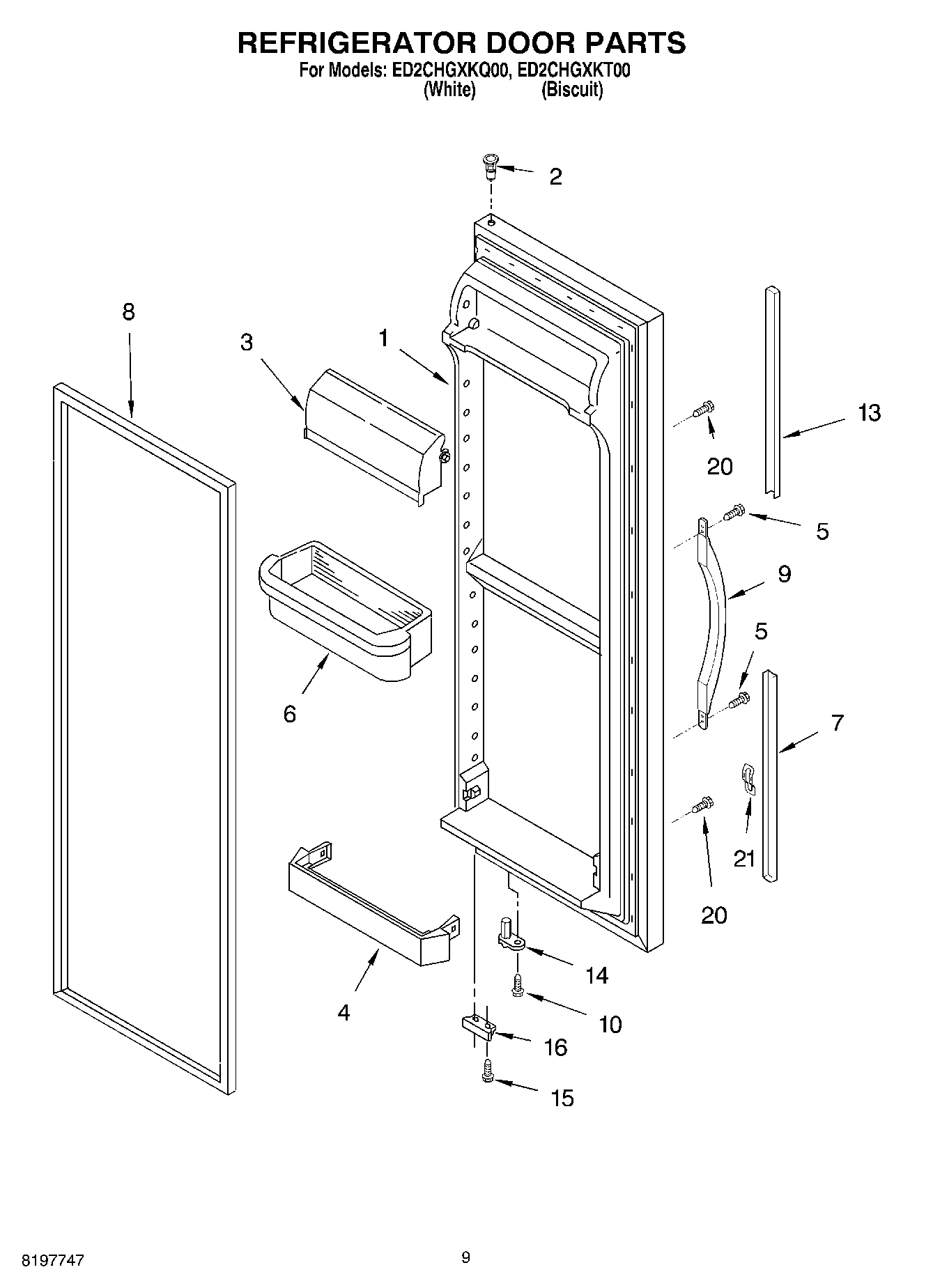

ED2CHGXKT00 07 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes Item 6) (White)
1Refrigerator Door (Includes Item 6) (Biscuit)
2WP2182181 Whirlpool Refrigerator Thimble
3WP2256101 Whirlpool Dairy Door
4WP2156022 Whirlpool Refrigerator Door Trim
5WP489491 Whirlpool Refrigerator Screw
6WP2203828 Whirlpool Door Shelf Bin
7Extension, Bottom (Biscuit)
7Extension, Bottom (White)
82159073 Whirlpool Refrigerator Door Gasket
9Handle, Center (White)
9Handle, Center (Biscuit)
10WP3400012 Whirlpool Refrigerator Screw
13Extension, Top (White)
13Extension, Top (Biscuit)
14WP2182179 Whirlpool Cam Closer
15WP489483 Whirlpool Screw
16WP2206629B Whirlpool Refrigerator Bracket
20WP3400852 Whirlpool Refrigerator Screw
21WP2195327 Whirlpool Refrigerator Clip
