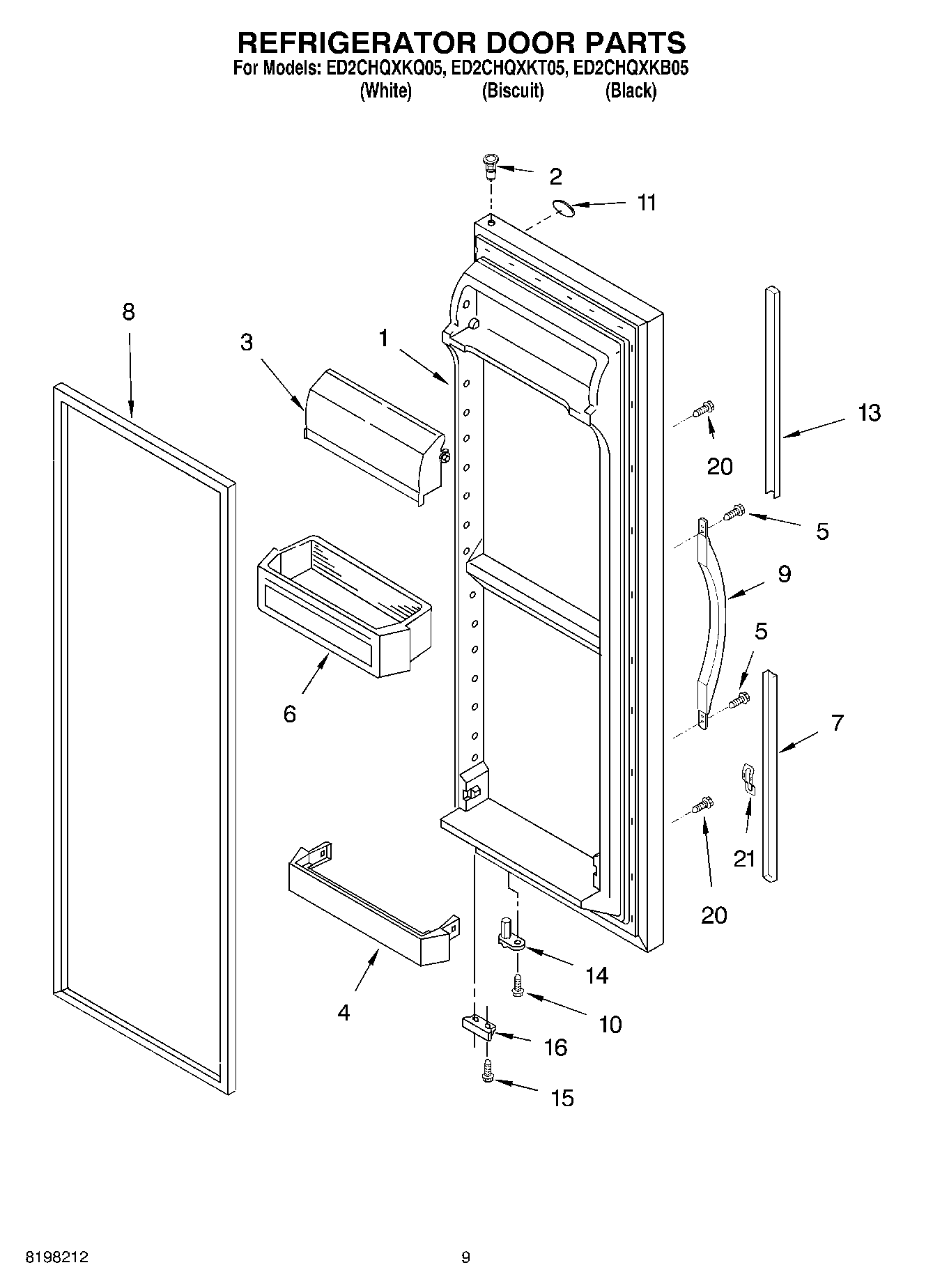

ED2CHQXKB05 07 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 6) (Black)
1	Refrigerator Door (Includes Item 6) (White)
1	Refrigerator Door (Includes Item 6) (Biscuit)
2	WP2182181 Whirlpool Refrigerator Thimble
3	WP2256101 Whirlpool Dairy Door
4	WP2156022 Whirlpool Refrigerator Door Trim
5	WP489491 Whirlpool Refrigerator Screw
6	WP2203828 Whirlpool Door Shelf Bin
7	Extension, Bottom (White)
7	WP2194969B Whirlpool Refrigerator Handle Trim
7	Extension, Bottom (Biscuit)
8	2159073 Whirlpool Refrigerator Door Gasket
8	2159081 Whirlpool Refrigerator Door Gasket
9	Handle, Center (White)
9	WP2186649B Whirlpool Refrigerator Handle
9	Handle, Center (Biscuit)
10	WP3400012 Whirlpool Refrigerator Screw
11	WP2213265 Whirlpool Refrigerator Nameplate
13	Extension, Top (Biscuit)
13	WP2194971B Whirlpool Refrigerator Handle Trim
13	Extension, Top (White)
14	WP2182179 Whirlpool Cam Closer
15	WP489483 Whirlpool Screw
16	WP2206629B Whirlpool Refrigerator Bracket
20	WP3400852 Whirlpool Refrigerator Screw
21	WP2195327 Whirlpool Refrigerator Clip
