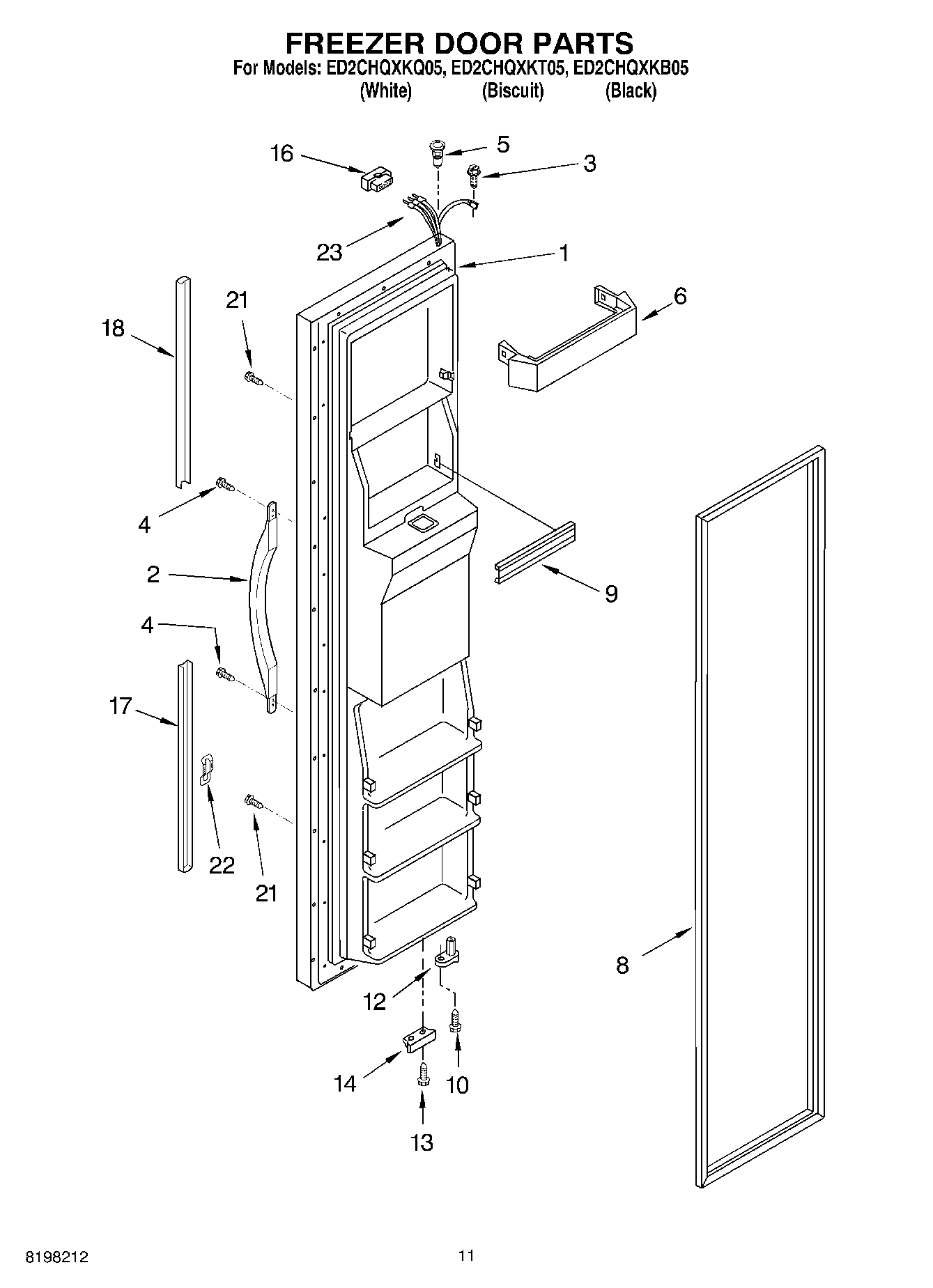

ED2CHQXKB05 08 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes Item 7 And Dispenser Front Parts) (White)
1	Freezer Door (Includes Item 7 And Dispenser Front Parts) (Biscuit)
1	Freezer Door (Includes Item 7 And Dispenser Front Parts) (Black)
2	Handle, Center (Biscuit)
2	WP2186649B Whirlpool Refrigerator Handle
2	Handle, Center (White)
3	WP489128 Whirlpool Refrigerator Screw
4	WP489491 Whirlpool Refrigerator Screw
5	WP2182181 Whirlpool Refrigerator Thimble
6	WP2156021 Whirlpool Refrigerator Door Trim
8	2159072 Whirlpool Refrigerator FIP Gasket
8	2159080 Whirlpool Refrigerator Door Gasket
9	WPW10307490 Whirlpool Door Trim Assembly
10	WP3400012 Whirlpool Refrigerator Screw
12	WP2182179 Whirlpool Cam Closer
13	WP489483 Whirlpool Screw
14	WP2206629B Whirlpool Refrigerator Bracket
16	WP2154473 Whirlpool Refrigerator Connector
17	Extension, Bottom (Biscuit)
17	WP2194969B Whirlpool Refrigerator Handle Trim
17	Extension, Bottom (White)
18	Extension, Top (Biscuit)
18	Extension, Top (White)
18	WP2194971B Whirlpool Refrigerator Handle Trim
21	WP3400852 Whirlpool Refrigerator Screw
22	WP2195327 Whirlpool Refrigerator Clip
23	2311642 Whirlpool Refrigerator Wire Harness
