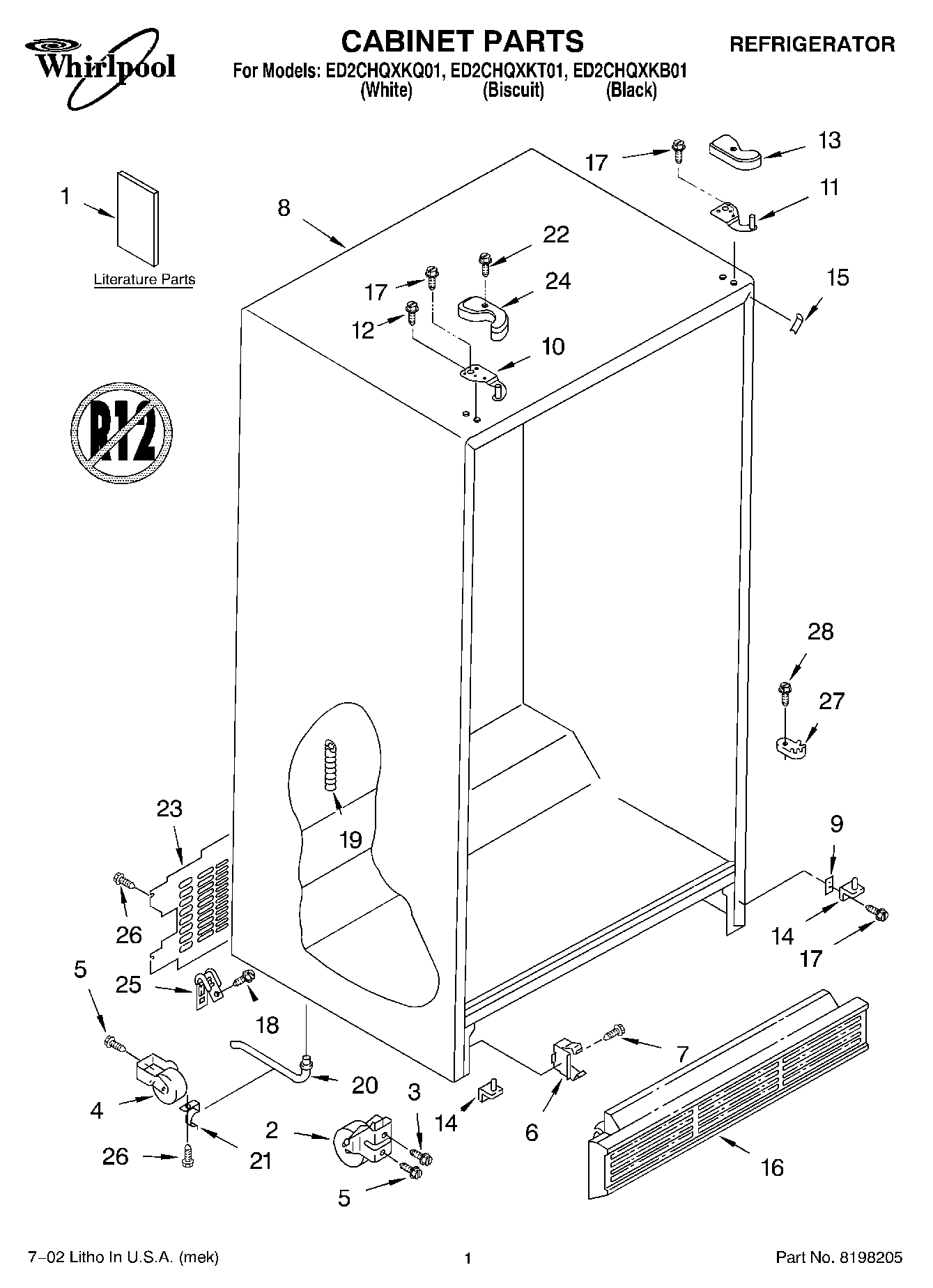

ED2CHQXKT01 01 – CABINET, LITERATUREadmin2025-04-26T09:47:13+00:00ED2CHQXKT01 01 – CABINET, LITERATURE ProductsPositionProduct1LITERATURE PARTS (Service & Wiring Sheet)1LITERATURE PARTS (Use & Care Guide)1LITERATURE PARTS (Energy Guide)1Modular Icemaker Service Sheet2Front Roller (2)3W10850698 Whirlpool Refrigerator Screw4WPW10250570 Whirlpool Refrigerator Cabinet Roller5WP489427 Whirlpool Refrigerator Screw6WP2155013 Whirlpool Refrigerator Clip7WP489478 Whirlpool Refrigerator Screw8Cabinet (Not A Service Part)9WP2209697 Whirlpool Refrigerator Shim10WP2203770 Whirlpool Refrigerator Door Hinge11WP2203771 Whirlpool Refrigerator Door Hinge12WP489128 Whirlpool Refrigerator Screw13Hinge Cover (Biscuit)13WP2203408B Whirlpool Refrigerator Cover13WP2203408W Whirlpool Refrigerator Cover148201707 Whirlpool Door Hinge15Filler, Wrapper (White)15Filler, Wrapper (Biscuit)15Filler, Wrapper (Black)16Grille (Biscuit)16W10804014 Whirlpool Refrigerator Grille17WP489497 Whirlpool Screw18WP489464 Whirlpool Refrigerator Screw19W11566763 Whirlpool Fitting20WP1108438 Whirlpool Refrigerator Extension21WP1108439 Whirlpool Refrigerator Clip22WP8281227 Whirlpool Screw23WP2188756 Whirlpool Refrigerator Unit Cover24WP2203407W Whirlpool Refrigerator Cover24WP2203407B Whirlpool Refrigerator Cover242203407T Whirlpool Refrigerator Cover25549193 Whirlpool Refrigerator Power Clamp27WPW10329686 Whirlpool Door Cam Black28WP489483 Whirlpool Screw
