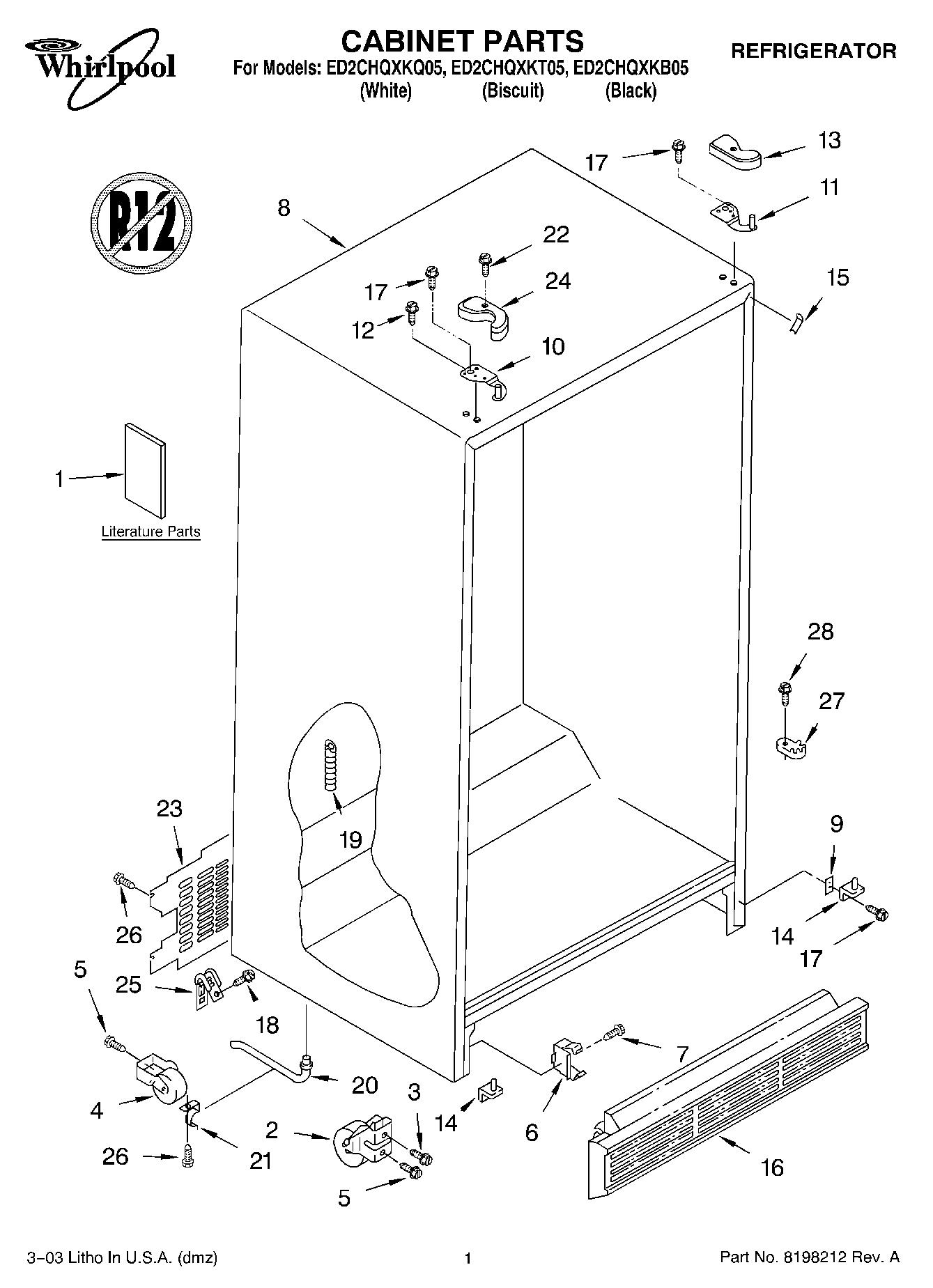

ED2CHQXKT05 01 – CABINET PARTS

Products

Position	Product
1	LITERATURE PARTS (Service & Wiring Sheet)
1	LITERATURE PARTS (Use & Care Guide)
1	LITERATURE PARTS (Energy Guide)
1	Modular Icemaker Service Sheet
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489128 Whirlpool Refrigerator Screw
8	Cabinet (Not A Service Part)
9	WP2209697 Whirlpool Refrigerator Shim
10	WP2203770 Whirlpool Refrigerator Door Hinge
11	WP2203771 Whirlpool Refrigerator Door Hinge
13	WP2203408W Whirlpool Refrigerator Cover
13	Hinge Cover (Biscuit)
13	WP2203408B Whirlpool Refrigerator Cover
14	8201707 Whirlpool Door Hinge
15	Filler, Wrapper (Black)
15	Filler, Wrapper (Biscuit)
15	Filler, Wrapper (White)
16	W10804014 Whirlpool Refrigerator Grille
16	Grille (Biscuit)
17	WP489497 Whirlpool Screw
18	WP489464 Whirlpool Refrigerator Screw
19	W11566763 Whirlpool Fitting
20	WP1108438 Whirlpool Refrigerator Extension
21	WP1108439 Whirlpool Refrigerator Clip
22	WP8281227 Whirlpool Screw
23	WP2188756 Whirlpool Refrigerator Unit Cover
24	2203407T Whirlpool Refrigerator Cover
24	WP2203407W Whirlpool Refrigerator Cover
24	WP2203407B Whirlpool Refrigerator Cover
25	549193 Whirlpool Refrigerator Power Clamp
27	WPW10329686 Whirlpool Door Cam Black
28	WP489483 Whirlpool Screw
