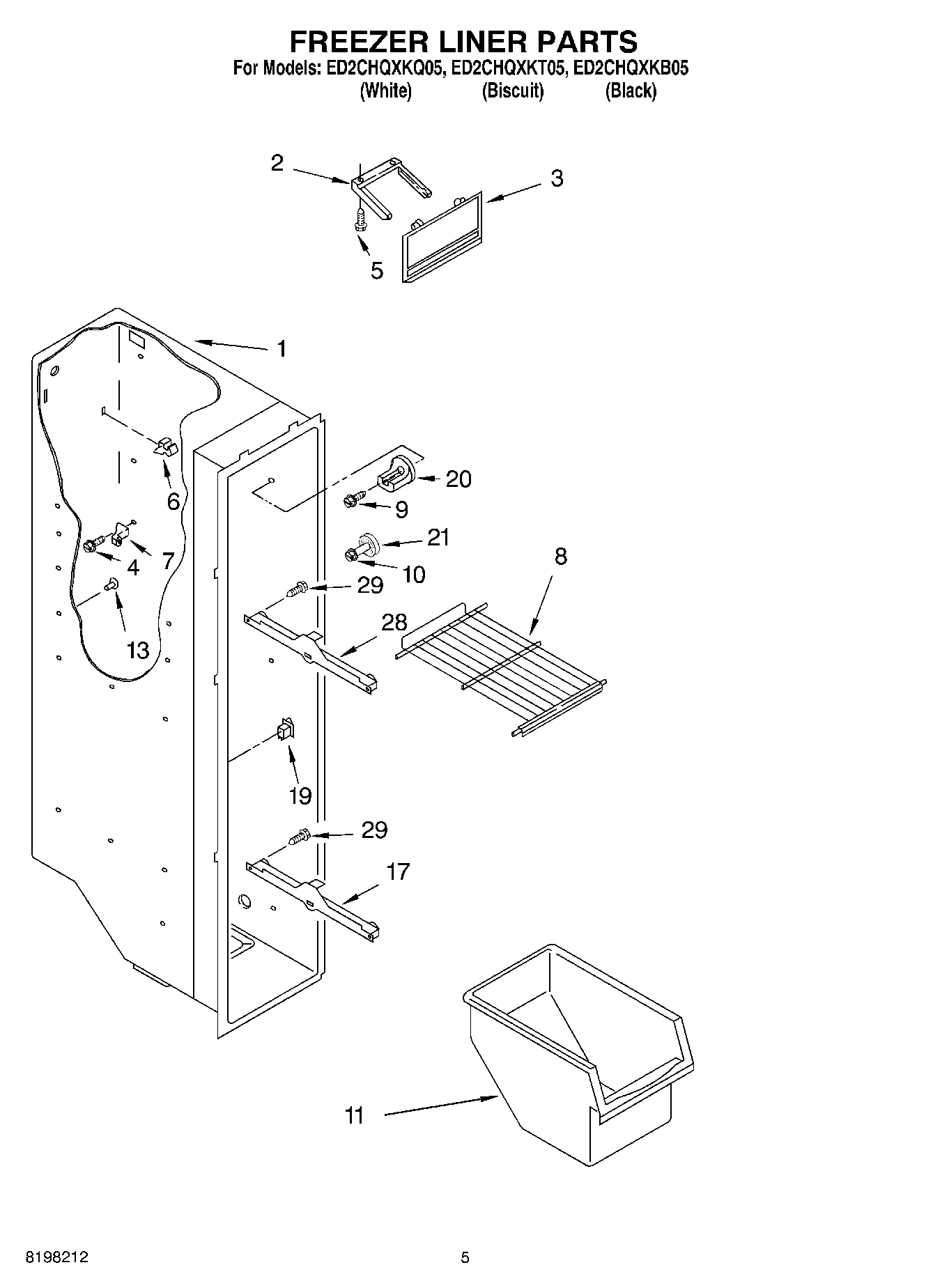

ED2CHQXKT05 04 – FREEZER LINER PARTS

ED2CHQXKT05 04 – FREEZER LINER PARTS

Written by

in

ED2CHQXKT05 04 – FREEZER LINER PARTS

Products

PositionProduct
1Liner (Not A Seviceable Part)
2Slide, Ice Door
32171712 Whirlpool Refrigerator Ice Door
5WP489478 Whirlpool Refrigerator Screw
62215823 Whirlpool Refrigerator Clip
74388405 Whirlpool Refrigerator Shelf Stud
8WP2174249K Whirlpool Refrigerator Wire Shelf
8Shelf (2)
9W10142289 Whirlpool Air Conditioner Screw
10WP3400806 Whirlpool Screw
11Bin, Freezer
13Grommet
17Slide, Basket (Right Side (2))
17Slide, Basket (Left Side (2))
19W11457217 Whirlpool Refrigerator Rocker Switch Combination
20Stud, Rear
21WP2196483 Whirlpool Refrigerator Shelf Stud
28W10845583 Whirlpool Refrigerator Track
28W10845585 Whirlpool Refrigerator Track
29718257 Whirlpool Dishwasher Screw
