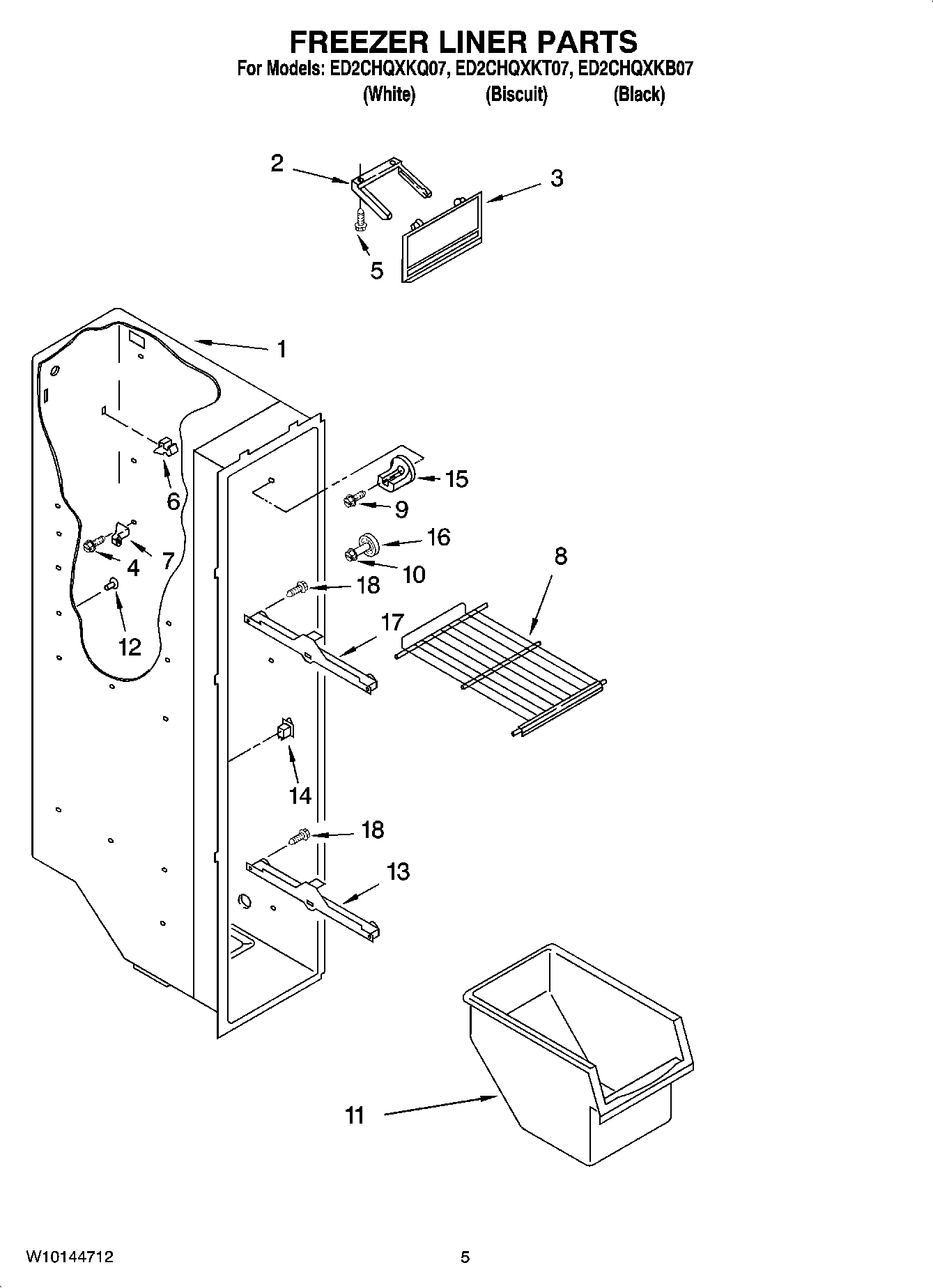

ED2CHQXKT07 04 – FREEZER LINER PARTS

Products

Position	Product
1	Liner (Not A Seviceable Part)
2	Slide, Ice Door
3	2171712 Whirlpool Refrigerator Ice Door
5	WP489478 Whirlpool Refrigerator Screw
6	2215823 Whirlpool Refrigerator Clip
7	4388405 Whirlpool Refrigerator Shelf Stud
8	WP2174249K Whirlpool Refrigerator Wire Shelf
8	Shelf (2)
9	W10142289 Whirlpool Air Conditioner Screw
10	WP3400806 Whirlpool Screw
11	Bin, Freezer
12	Grommet
13	WP2261449 Whirlpool Refrigerator Track
13	Slide, Basket (Left Side)
14	W11457217 Whirlpool Refrigerator Rocker Switch Combination
15	Stud, Rear
16	WP2196483 Whirlpool Refrigerator Shelf Stud
17	W10845583 Whirlpool Refrigerator Track
17	W10845585 Whirlpool Refrigerator Track
18	W10759522 Whirlpool Screw
