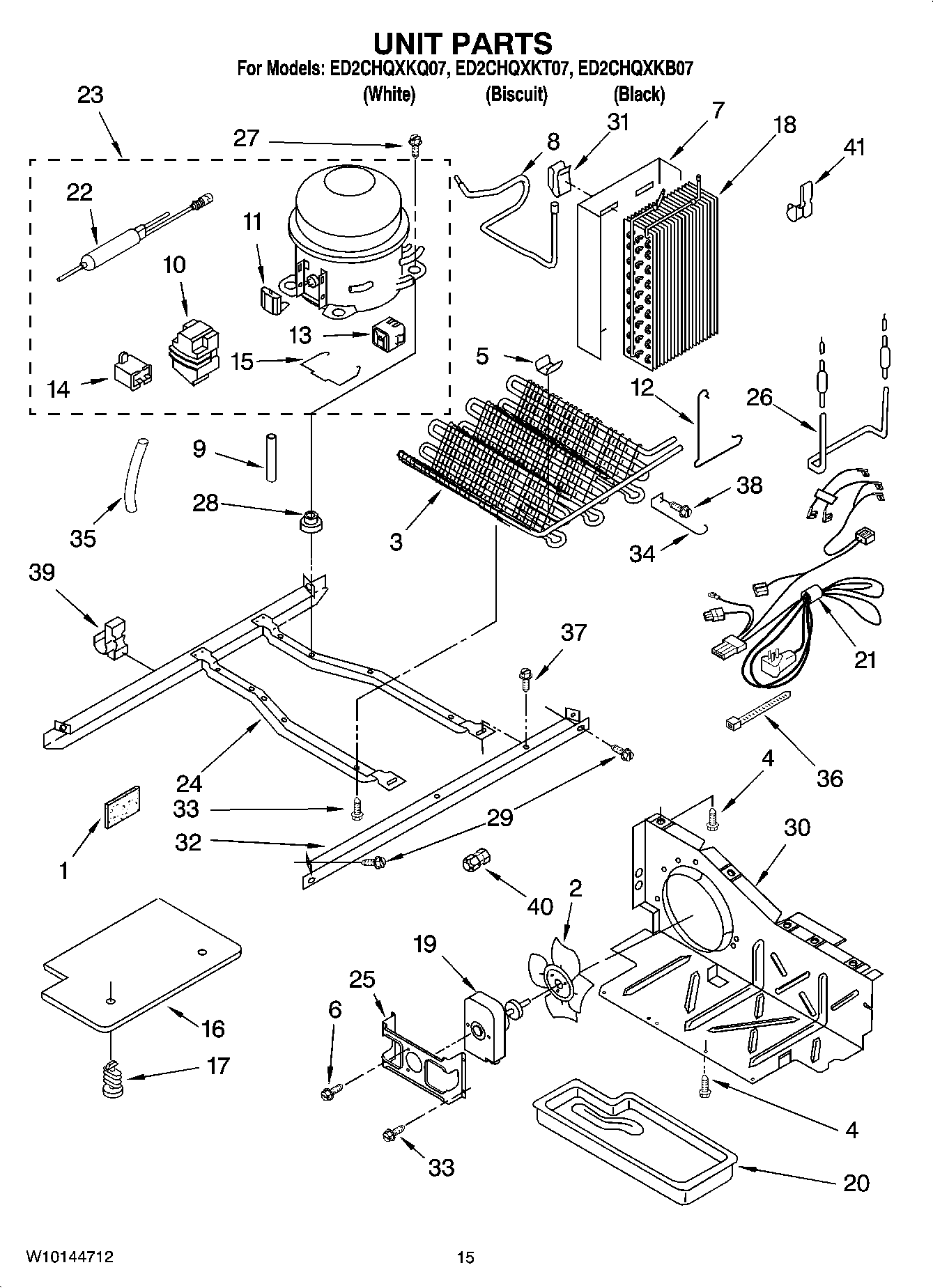

ED2CHQXKT07 10 – UNIT PARTS

ED2CHQXKT07 10 – UNIT PARTS

Written by

in

ED2CHQXKT07 10 – UNIT PARTS

Products

Position	Product
1	W11553819 Whirlpool Refrigerator Insulation
2	W11458267 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	W10683556 Whirlpool Refrigerator Clip
6	WP8533993 Whirlpool Refrigerator Screw
7	2217195 Whirlpool Refrigerator Shield
8	2220642 Whirlpool Refrigerator Tube
9	Bushing, Compressor
10	WP2162358 Whirlpool Refrigerator Terminal Cover
11	OVERLOAD
12	Clamp
13	WP2188831 Whirlpool Refrigerator Start Device
14	WPW10662129 Whirlpool Refrigerator Run Capacitor
14	WP65889-4 Whirlpool Refrigerator Capacitor
15	2212996 Whirlpool Refrigerator Retainer
16	W11115203 Whirlpool Control Panel
17	489396 Whirlpool Refrigerator Clip
18	WP2188822 Whirlpool Refrigerator Evaporator
19	W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
20	WPW10614158 Whirlpool Refrigerator Evaporator Tray
21	Unit, Harness
22	W10843121 Whirlpool Refrigerator Tube
22	WPW10143759 Whirlpool Dryer Filter
23	W10355489 Whirlpool Refrigerator Compressor
24	2304903 Whirlpool Refrigerator Frame
25	WP2181929 Whirlpool Refrigerator Bracket
26	WP2323197 Whirlpool Refrigerator Heater
28	WP4387558 Whirlpool Refrigerator Compressor Grommet
28	876811 Whirlpool Grommet
29	489340 Whirlpool Refrigerator Screw
30	W10896764 Whirlpool Refrigerator Air Baffle
31	Clip, Heat Shield
32	Unit Mounting Rail
33	W11544659 Whirlpool Refrigerator Screw
34	1105612 Whirlpool Fan Guard
35	SLEEVE
36	WPW10339879 Whirlpool Wire Tie
37	WP489427 Whirlpool Refrigerator Screw
38	WP489478 Whirlpool Refrigerator Screw
39	Clip, Wire & Tube
40	WPW10334458 Whirlpool Refrigerator Connector
41	VALVE, ACCESS (5/8“)
41	978026 Whirlpool Refrigerator Primary Valve
41	Following Parts Not Illustrated and Optional Parts Not
41	978027 Whirlpool Refrigerator Primary Valve
41	978030 Whirlpool Refrigerator Valve
41	WP978025 Whirlpool Refrigerator Valve
41	VALVE, ACCESS (1/2“)
41	876764 Whirlpool Refrigerator Primary Valve
41	W11623163 Whirlpool Refrigerator Clip
41	WPL ARI28822A8
