ED2CHQXKT07 12 – CONTROL PARTS, OPTIONAL PARTS

ED2CHQXKT07 12 – CONTROL PARTS, OPTIONAL PARTS

Written by

in

ED2CHQXKT07 12 – CONTROL PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI28828A3
	WP542638 Whirlpool Refrigerator Grease
	Torx Key
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	TAPE, VINYL (3/4 X 108“)
	CEMENT, ALUMILASTIC (1 1/4 OZ.)
	Enamel, Black (1 Qt. Uncut)
	WPL 799833
	WPL 876029
	WPW10312301 Whirlpool Refrigerator Ice Container
	285006 Whirlpool Spray
	72032 Whirlpool Touch Up Paint Black
	WPL ARI28823A2
	WPL ARI28824A6
	WPL ARI28825A7
	WPL ARI28826A7
	WPL ARI28827A1
	WP505587 Whirlpool Refrigerator Sealer
	WP503695 Whirlpool Refrigerator Sealer
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	606755 Whirlpool Refrigerator Bag
	350956 Whirlpool Spray Assembly
	212643 Whirlpool Refrigerator Permagum Sealer
	350942 Whirlpool Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	833938 Whirlpool Refrigerator Terminal
	876370 Whirlpool Refrigerator Insulation
	350930 Whirlpool White Spray Paint
	511873 Whirlpool Refrigerator Paint
	4392901 Whirlpool Biscuit Spray Paint

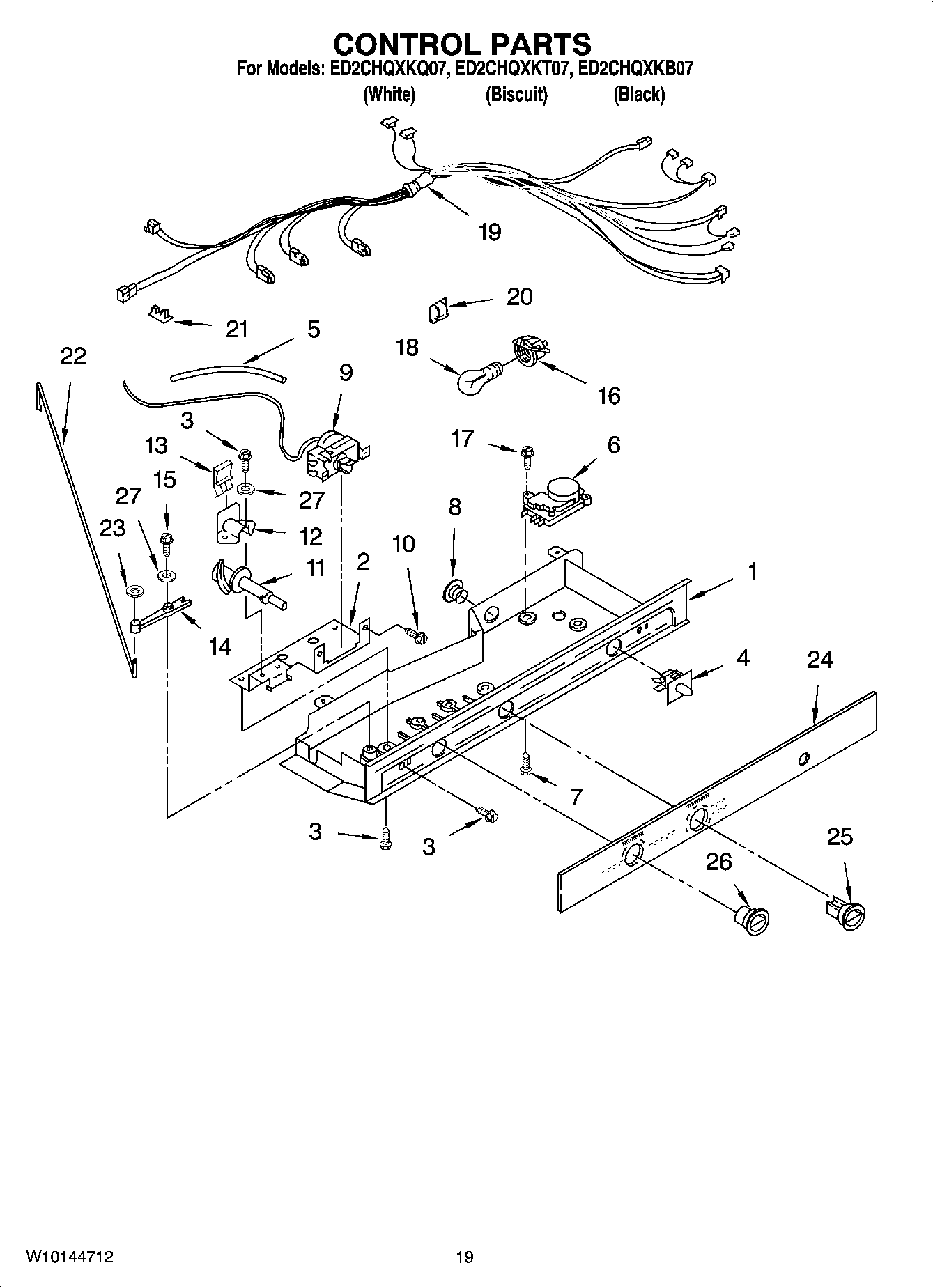

1	Control Box
2	Mounting Bracket
3	WP3196557 Whirlpool Screw
4	WP2149705 Whirlpool Refrigerator Door Switch
5	WP2196003 Whirlpool Refrigerator Bar Riser
6	W10822278 Whirlpool Defrost Timer
8	940014 Whirlpool Refrigerator Primary Button Plug
9	WP2198202 Whirlpool Refrigerator Temperature Thermostat
10	WP965173 Whirlpool Dishwasher Screw
11	WP2182195 Whirlpool Refrigerator Cam
12	1110560 Whirlpool Refrigerator Bearing
13	WP2196062 Whirlpool Refrigerator Clip
14	Pivot Arm
15	627068 Whirlpool Refrigerator Screw
16	4387478 Whirlpool Refrigerator Light Socket
17	489392 Whirlpool Refrigerator Screw
18	RANGE ONLY 40W 120V APPL BULB
19	2311636 Whirlpool Refrigerator Wire Harness
20	WP1115374 Whirlpool Refrigerator Clip
21	CLIP, WIRING
22	Connecting Rod
23	Fastener, Push-On
24	Escutcheon, Control Box
25	2182111 Whirlpool Refrigerator Thermal Knob
26	Knob, Air Control
27	489203 Whirlpool Refrigerator Washer
