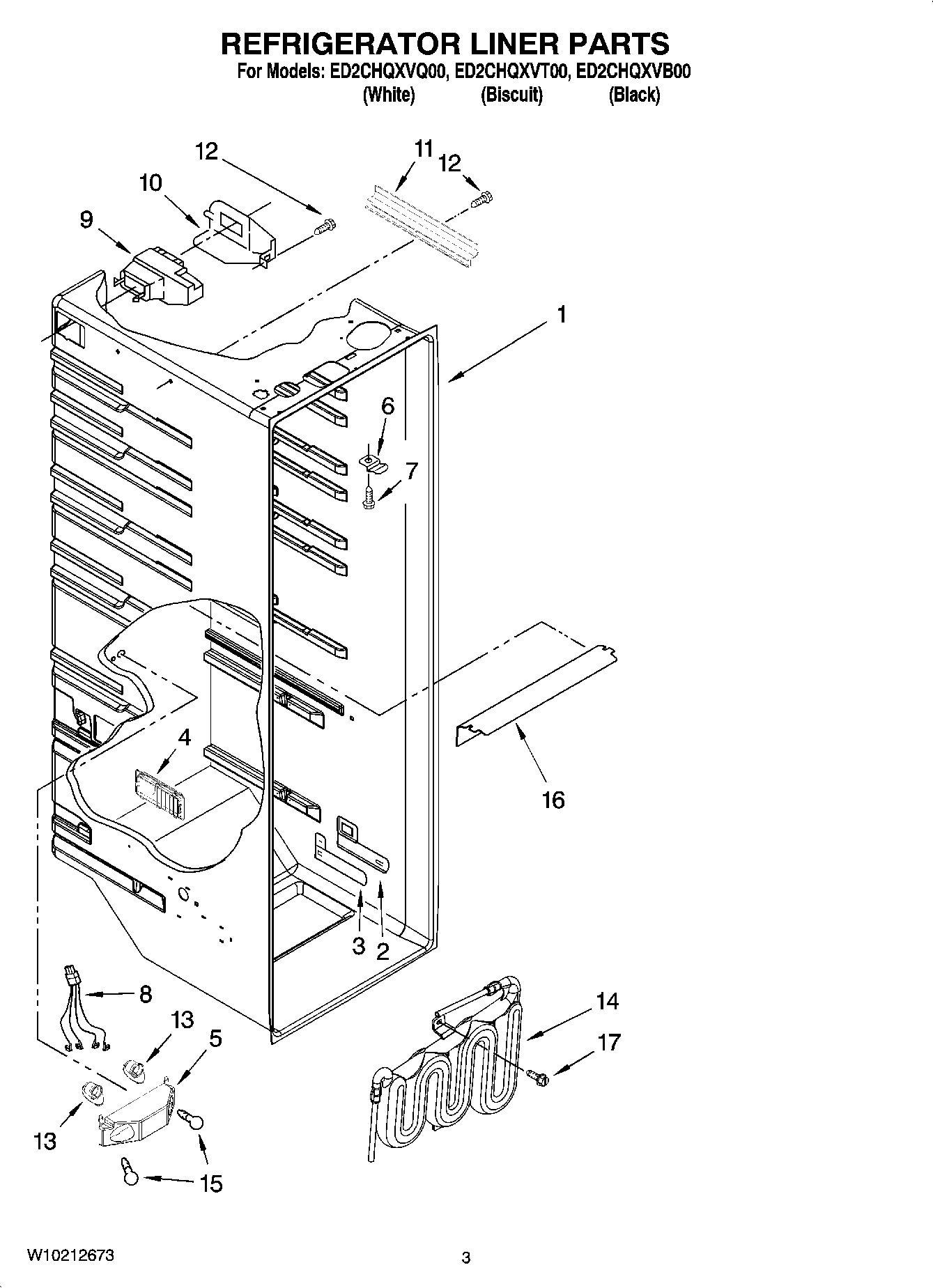

ED2CHQXVB00 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	W10175967 Whirlpool Refrigerator Escutcheon
3	2182757 Whirlpool Refrigerator Slide
4	Louver
5	Bracket, Dual Crisper Light
6	2311612 Whirlpool Refrigerator Clip
7	WP488488 Whirlpool Refrigerator Screw
8	2311637 Whirlpool Refrigerator Wire Harness
9	WPW10151374 Whirlpool Refrigerator Diffuser
10	2152019 Whirlpool Refrigerator Cover
11	2150331 Whirlpool Refrigerator Wire Cover
12	W10759522 Whirlpool Screw
13	4387478 Whirlpool Refrigerator Light Socket
14	RESERVOIR
15	RANGE ONLY 40W 120V APPL BULB
16	Light Lens
17	Screw (2)
