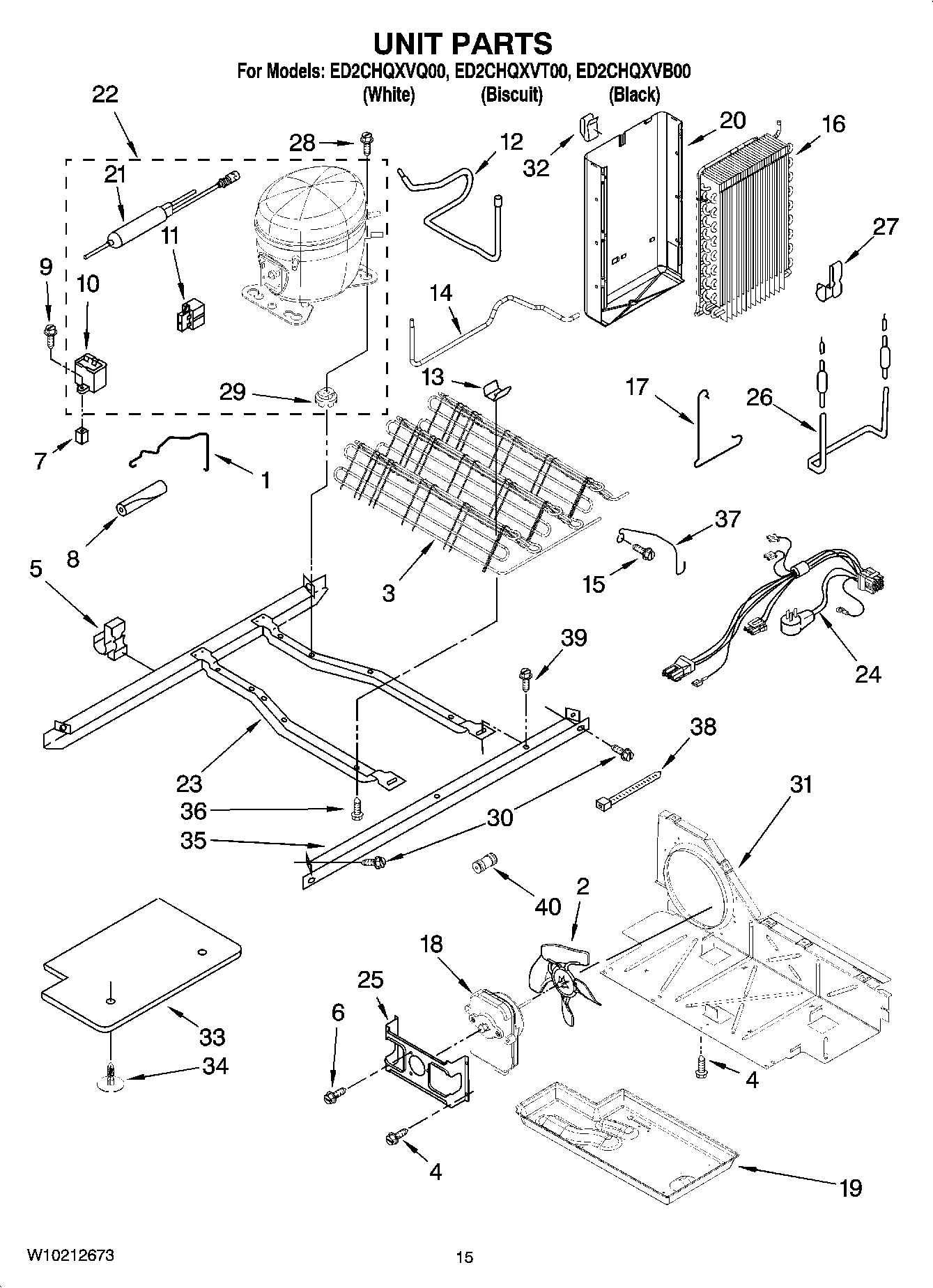

ED2CHQXVB00 09 – UNIT PARTS

ED2CHQXVB00 09 – UNIT PARTS

Written by

in

ED2CHQXVB00 09 – UNIT PARTS

Products

Position	Product
	VALVE, ACCESS (1/2“)
	WP978025 Whirlpool Refrigerator Valve
	978030 Whirlpool Refrigerator Valve
	978027 Whirlpool Refrigerator Primary Valve
	978026 Whirlpool Refrigerator Primary Valve
	876764 Whirlpool Refrigerator Primary Valve
	REFRIGERANT CHARGE 5.0 oz. (R-134A)
	Following Parts Not Illustrated and Optional Parts Not Included
	VALVE, ACCESS (5/8“)
1	2212996 Whirlpool Refrigerator Retainer
2	W11458267 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire & Tube
6	WP8533993 Whirlpool Refrigerator Screw
7	Screw Grommet
8	SLEEVE
9	W11693756 Whirlpool Screw Assembly
10	WP65889-4 Whirlpool Refrigerator Capacitor
11	WP2188831 Whirlpool Refrigerator Start Device
12	2220642 Whirlpool Refrigerator Tube
13	W10683556 Whirlpool Refrigerator Clip
14	Tube, Condenser to Heat Loop
15	WP489478 Whirlpool Refrigerator Screw
16	WP2188822 Whirlpool Refrigerator Evaporator
18	WP2188874 Whirlpool Refrigerator Condenser Motor
19	WPW10614158 Whirlpool Refrigerator Evaporator Tray
20	2217195 Whirlpool Refrigerator Shield
21	W10843121 Whirlpool Refrigerator Tube
21	WPW10143759 Whirlpool Dryer Filter
22	W10355489 Whirlpool Refrigerator Compressor
24	WPW10309395 Whirlpool Refrigerator Wire Harness
25	WP2181929 Whirlpool Refrigerator Bracket
26	WP2323197 Whirlpool Refrigerator Heater
27	Clamp
29	W11661108 Whirlpool Grommet
29	876811 Whirlpool Grommet
30	489340 Whirlpool Refrigerator Screw
31	W10896764 Whirlpool Refrigerator Air Baffle
32	Clip, Heat Shield
33	W11115203 Whirlpool Control Panel
34	489396 Whirlpool Refrigerator Clip
35	Unit Mounting Rail
36	W11544659 Whirlpool Refrigerator Screw
37	1105612 Whirlpool Fan Guard
38	WPW10339879 Whirlpool Wire Tie
39	WP489427 Whirlpool Refrigerator Screw
40	WPW10334458 Whirlpool Refrigerator Connector
