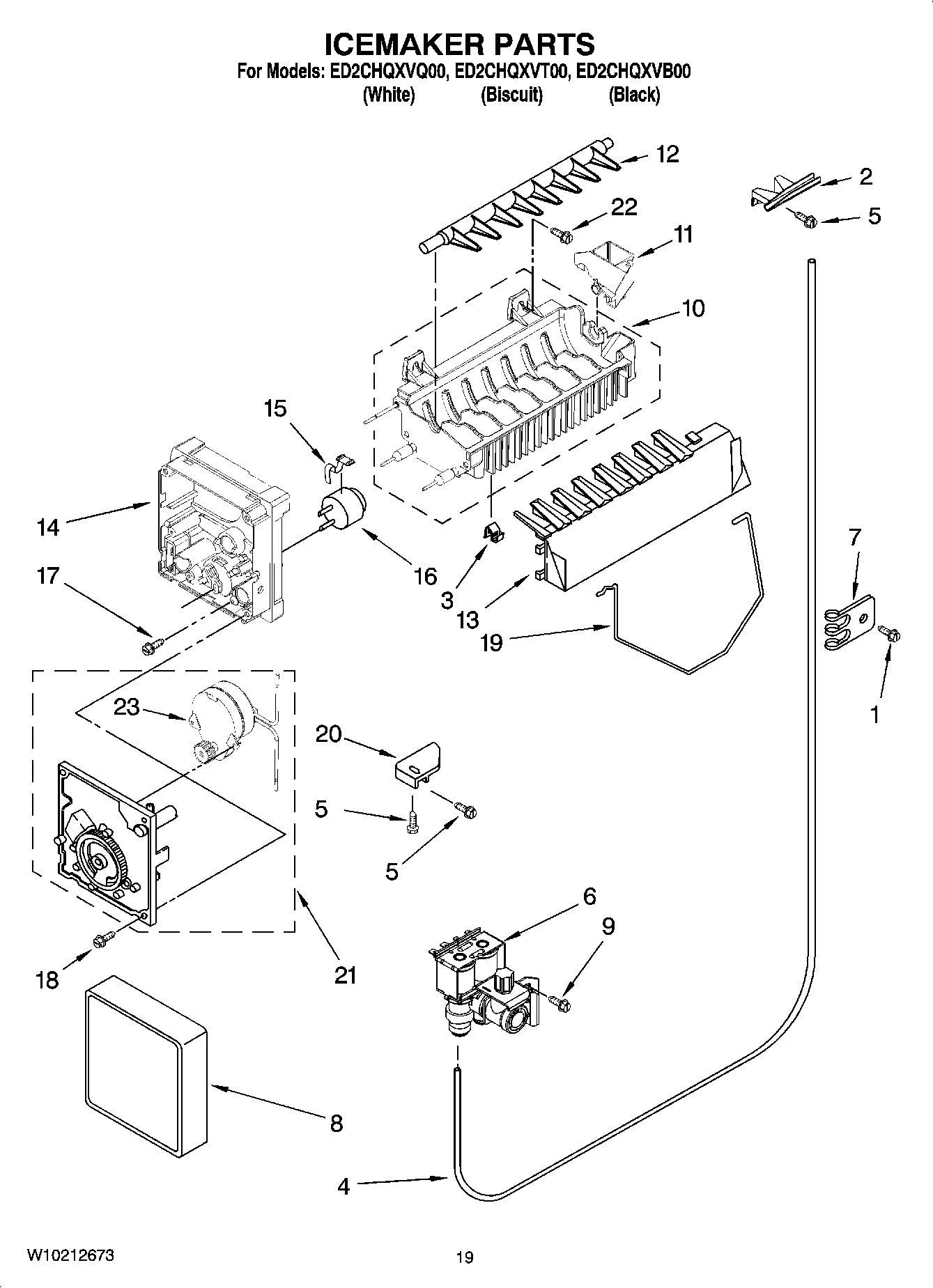

ED2CHQXVB00 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

ED2CHQXVB00 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

ED2CHQXVB00 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
212643 Whirlpool Refrigerator Permagum Sealer
285006 Whirlpool Spray
TAPE, VINYL (3/4 X 108“)
350942 Whirlpool Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
833938 Whirlpool Refrigerator Terminal
WP503695 Whirlpool Refrigerator Sealer
WP505587 Whirlpool Refrigerator Sealer
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
72032 Whirlpool Touch Up Paint Black
WPL ARI28881A1
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WPL 799833
WP542638 Whirlpool Refrigerator Grease
WPL ARI28880A1
Important: The spray paint is not to be used where the paint
Enamel, Black (1 Qt. Uncut)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Torx Key
2W11505385 Whirlpool Refrigerator Chute
3WP628379 Whirlpool Refrigerator Clip
4W10823511 Whirlpool Refrigerator Water Tube
5WP489478 Whirlpool Refrigerator Screw
6W10853654 Whirlpool Water Inlet Valve
7WP488366 Whirlpool Refrigerator Clamp
8WPW10289690 Whirlpool Ice Maker Cover
9WPW10141625 Whirlpool Refrigerator Screw Assembly
10WPW10190929 Whirlpool Refrigerator Ice Maker Mold
11WPW10272168 Whirlpool Refrigerator Water Fill Cup
12WP627843 Whirlpool Refrigerator Ejector Arm
13W10297244 Whirlpool Refrigerator Arm Strip
14WP2195914 Whirlpool Refrigerator Ice Maker Housing
15WP2315522 Whirlpool Refrigerator Clip
16WP627985 Whirlpool Icemaker Cycling Thermostat
178533917 Whirlpool Refrigerator Screw
18WP681249 Whirlpool Screw Assembly
19W11342242 Whirlpool Refrigerator Ice Level Arm
20W11500948 Whirlpool Refrigerator Bracket
218201515 Whirlpool Refrigerator Motor and Gear Module Kit
22WP488163 Whirlpool Refrigerator Screw
23Motor (Not Serviced, Order 21)
100WPW10190965 Whirlpool Refrigerator Ice Maker Assembly
