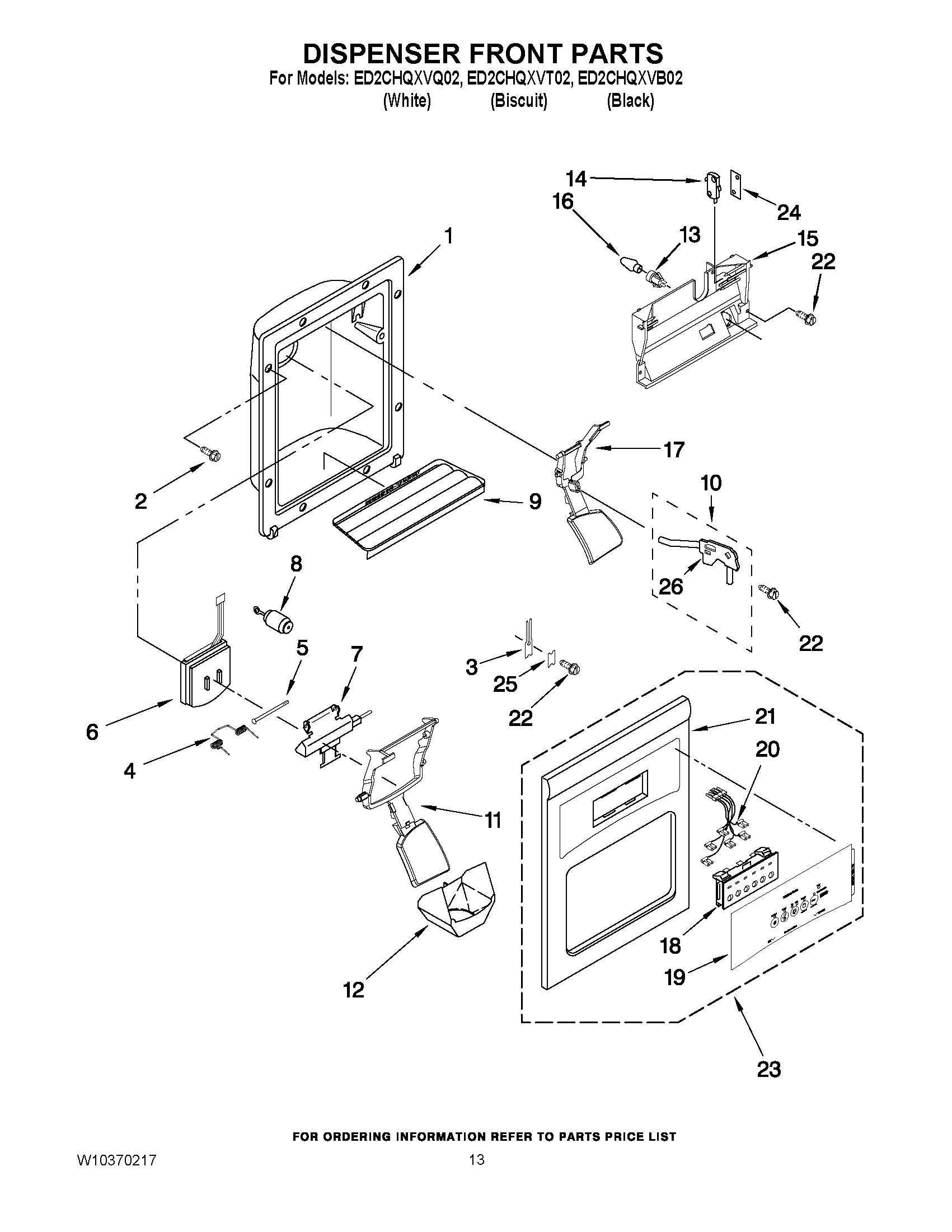

ED2CHQXVB02 08 – DISPENSER FRONT PARTSadmin2025-04-26T09:47:21+00:00ED2CHQXVB02 08 – DISPENSER FRONT PARTS ProductsPositionProduct2WP3196557 Whirlpool Screw3WP2194719 Whirlpool Refrigerator Clip4WPW10224328 Whirlpool Refrigerator Spring5WP2196195 Whirlpool Refrigerator Door Pin6WP2180353 Whirlpool Dispenser Door7Door Mechanism Assembly8Delay Mechanism9Grille, Overflow (Biscuit)9WP2206671W Whirlpool Refrigerator Grille9WP2206671B Whirlpool Refrigerator Grille108201537 Whirlpool Water Tubing Assembly11WPW10152854 Whirlpool Refrigerator Dispenser Arm11WPW10152853 Whirlpool Refrigerator Dispenser Arm11W10152855 Whirlpool Refrigerator Dispenser Arm12WP2180224 Whirlpool Dispenser Funnel Guide132180200 Whirlpool Refrigerator Socket14WP2162361 Whirlpool Switch15WP2180226 Whirlpool Ice Dispenser Control Switch Bracket16WP22002263 Whirlpool Dryer 10W Light Bulb17W10152860 Whirlpool Refrigerator Dispenser Arm17WPW10152859 Whirlpool Refrigerator Dispenser Arm17WPW10152858 Whirlpool Refrigerator Dispenser Arm20W10281339 Whirlpool Wire Harness21CABINET (NOT A SERVICEABLE PART)22WP3400906 Whirlpool Refrigerator Screw23Front Cover Assembly (Includes Items 18, 19, 20 & 21) (Black)23Front Cover Assembly (Includes Items 18, 19, 20 & 21) (Biscuit)23Front Cover Assembly (Includes Items 18, 19, 20 & 21) (White)24Spacer, Switch (2)25WP2195051 Whirlpool Refrigerator Clip26WP2304673 Whirlpool Refrigerator Bracket
