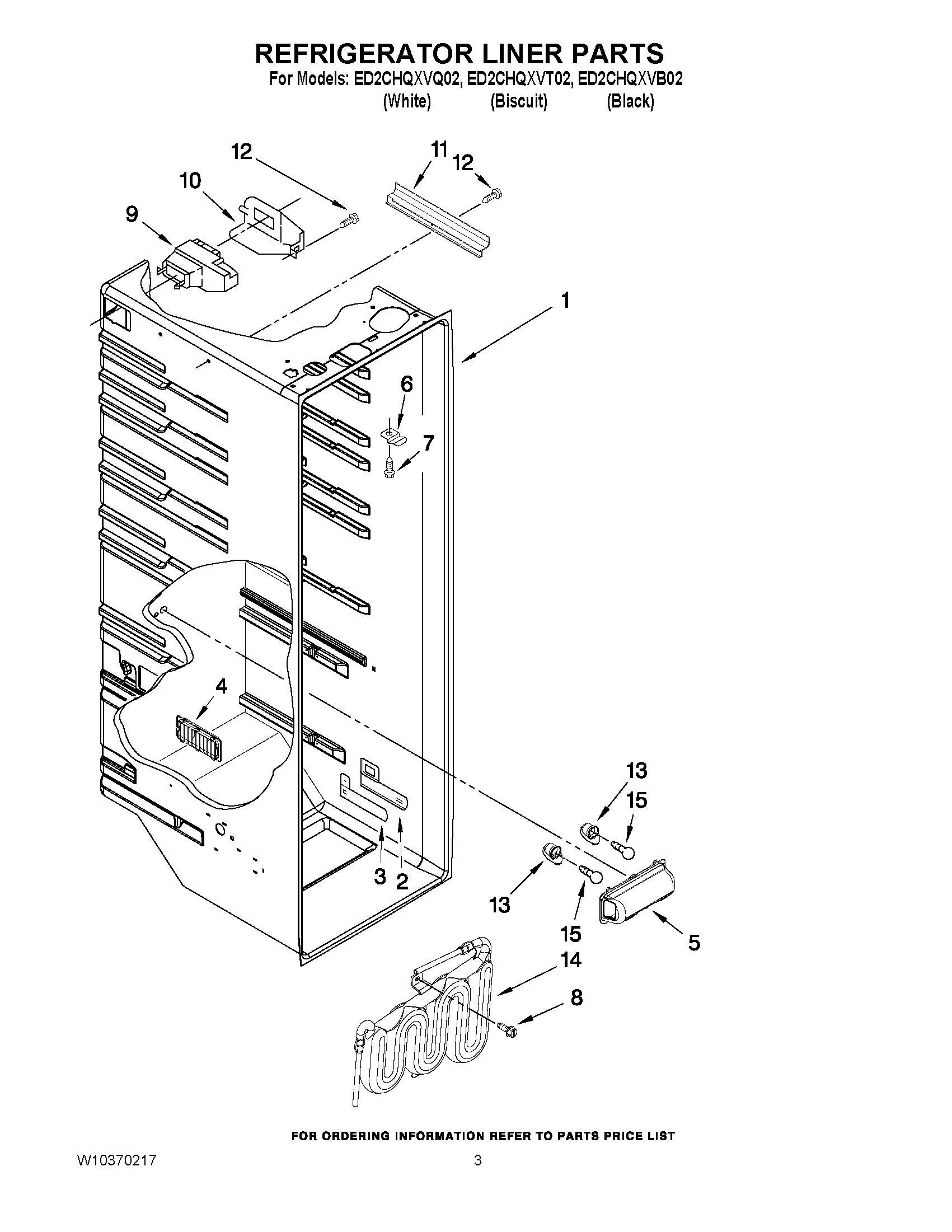

ED2CHQXVQ02 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10175967 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
5W11239891 Whirlpool Refrigerator Light Lens
62311612 Whirlpool Refrigerator Clip
7WP488488 Whirlpool Refrigerator Screw
8Screw (2)
9WPW10151374 Whirlpool Refrigerator Diffuser
102152019 Whirlpool Refrigerator Cover
11W10252495 Whirlpool Refrigerator Wire Cover
12W10759522 Whirlpool Screw
134387478 Whirlpool Refrigerator Light Socket
14RESERVOIR
15RANGE ONLY 40W 120V APPL BULB
