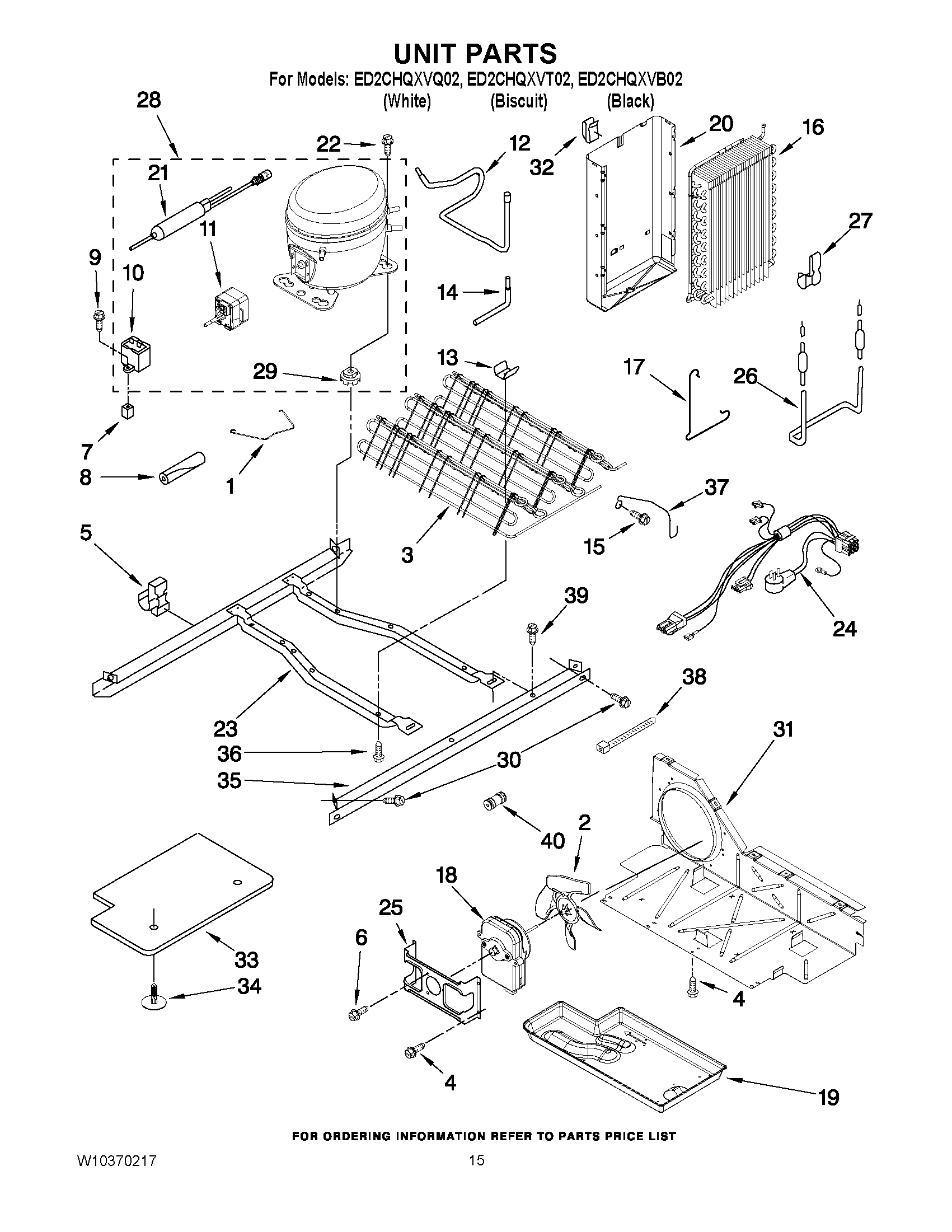

ED2CHQXVQ02 09 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
NI	CABINET (NOT A SERVICEABLE PART)
1	2255009 Whirlpool Retainer
2	W11458267 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire & Tube
6	WP8533993 Whirlpool Refrigerator Screw
7	Screw Grommet
8	SLEEVE
9	W11693756 Whirlpool Screw Assembly
10	WP65889-4 Whirlpool Refrigerator Capacitor
11	WPW10240344 Whirlpool Refrigerator Start Device
12	2220642 Whirlpool Refrigerator Tube
13	W10683556 Whirlpool Refrigerator Clip
14	W10858105 Whirlpool Refrigerator Tube
15	WP489478 Whirlpool Refrigerator Screw
16	WP2188822 Whirlpool Refrigerator Evaporator
18	W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
19	WPW10614158 Whirlpool Refrigerator Evaporator Tray
20	WPW10194474 Whirlpool Refrigerator Shield
21	WPW10143759 Whirlpool Dryer Filter
22	SCREW
23	2304903 Whirlpool Refrigerator Frame
24	UNIT, HARNESS (INCLUDES POWER CORD)
25	WP2181929 Whirlpool Refrigerator Bracket
26	WP2323197 Whirlpool Refrigerator Heater
27	Clamp
28	W10355489 Whirlpool Refrigerator Compressor
29	W11661108 Whirlpool Grommet
30	489340 Whirlpool Refrigerator Screw
31	BAFFLE, AIR
32	Clip, Heat Shield
33	W11115203 Whirlpool Control Panel
34	489396 Whirlpool Refrigerator Clip
35	W10207512 Whirlpool Rail Unit
36	W11544659 Whirlpool Refrigerator Screw
37	1105612 Whirlpool Fan Guard
38	WPW10339879 Whirlpool Wire Tie
39	WP489427 Whirlpool Refrigerator Screw
40	WPW10334458 Whirlpool Refrigerator Connector
