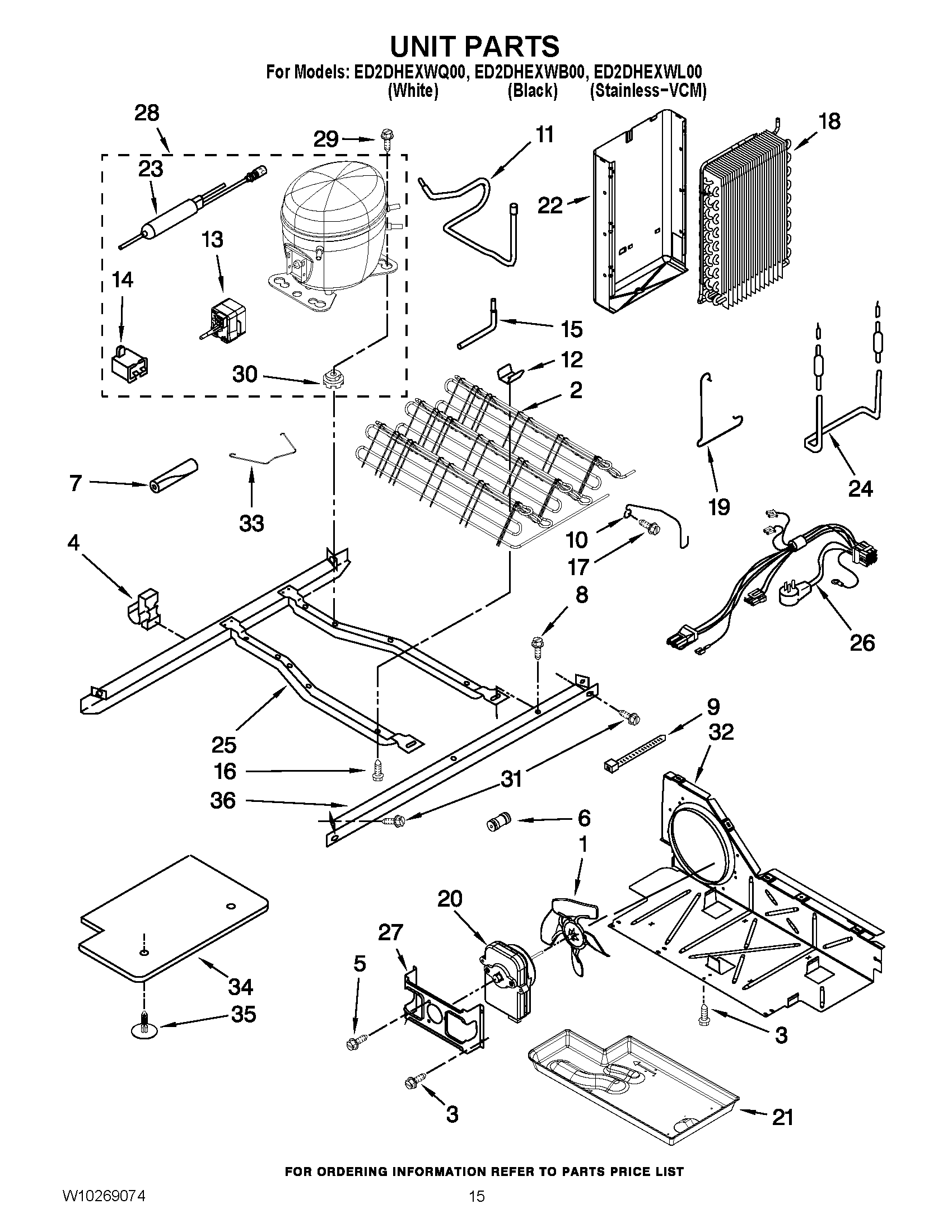

ED2DHEXWB00 09 – UNIT PARTS

ED2DHEXWB00 09 – UNIT PARTS

Written by

in

ED2DHEXWB00 09 – UNIT PARTS

Products

Position	Product
NI	978026 Whirlpool Refrigerator Primary Valve
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	W11458267 Whirlpool Refrigerator Fan Blade
2	2324712 Whirlpool Refrigerator Condenser
4	Clip, Wire & Tube
5	WP8533993 Whirlpool Refrigerator Screw
6	WPW10334458 Whirlpool Refrigerator Connector
7	SLEEVE
8	WP489427 Whirlpool Refrigerator Screw
9	WPW10339879 Whirlpool Wire Tie
10	Guard, Fan
11	2220642 Whirlpool Refrigerator Tube
12	W10683556 Whirlpool Refrigerator Clip
13	WP2188831 Whirlpool Refrigerator Start Device
13	WPW10240344 Whirlpool Refrigerator Start Device
14	WP65889-4 Whirlpool Refrigerator Capacitor
15	W10858105 Whirlpool Refrigerator Tube
16	W11544659 Whirlpool Refrigerator Screw
17	WP489478 Whirlpool Refrigerator Screw
18	WP2188822 Whirlpool Refrigerator Evaporator
19	Clamp
20	W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
21	WPW10614158 Whirlpool Refrigerator Evaporator Tray
22	WPW10194474 Whirlpool Refrigerator Shield
23	WPW10143759 Whirlpool Dryer Filter
24	WP2323197 Whirlpool Refrigerator Heater
25	2304903 Whirlpool Refrigerator Frame
26	UNIT, HARNESS (INCLUDES POWER CORD)
27	WP2181929 Whirlpool Refrigerator Bracket
28	W10355489 Whirlpool Refrigerator Compressor
30	W11661108 Whirlpool Grommet
30	876811 Whirlpool Grommet
31	489340 Whirlpool Refrigerator Screw
32	BAFFLE, AIR
33	2212996 Whirlpool Refrigerator Retainer
34	W11115203 Whirlpool Control Panel
35	489396 Whirlpool Refrigerator Clip
36	W10207512 Whirlpool Rail Unit
