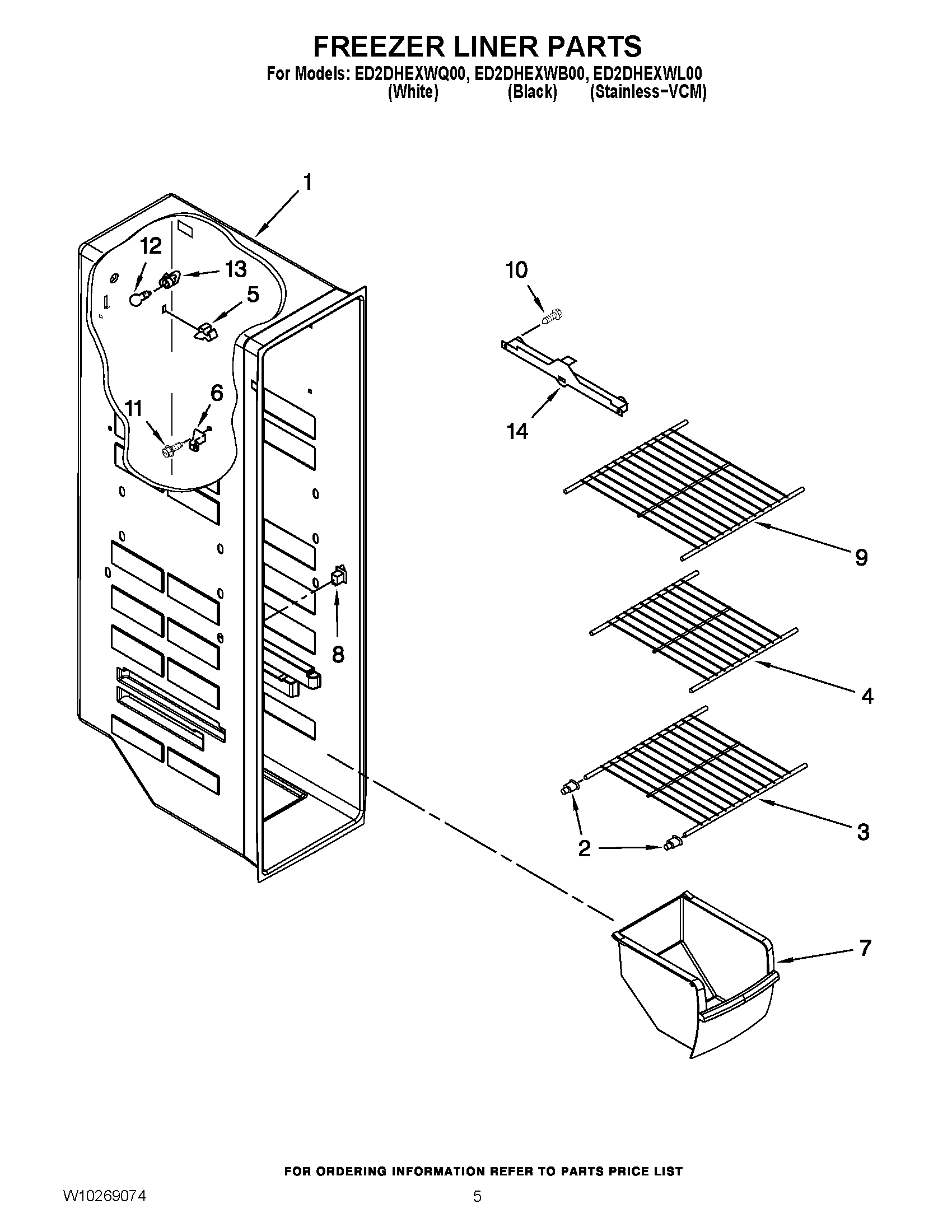

ED2DHEXWL00 04 – FREEZER LINER PARTS

ED2DHEXWL00 04 – FREEZER LINER PARTS

Written by

in

ED2DHEXWL00 04 – FREEZER LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WPW10130299 Whirlpool Refrigerator Cup
3WPW10318952 Whirlpool Wire Shelf
4WPW10318951 Whirlpool Refrigerator Wire Shelf
52215823 Whirlpool Refrigerator Clip
64388405 Whirlpool Refrigerator Shelf Stud
7WP2309758 Whirlpool Refrigerator Freezer Bin
8W11457217 Whirlpool Refrigerator Rocker Switch Combination
9WPW10318953 Whirlpool Wire Shelf
10718257 Whirlpool Dishwasher Screw
11W10142289 Whirlpool Air Conditioner Screw
12RANGE ONLY 40W 120V APPL BULB
134387478 Whirlpool Refrigerator Light Socket
14W10845583 Whirlpool Refrigerator Track
14W10845585 Whirlpool Refrigerator Track
