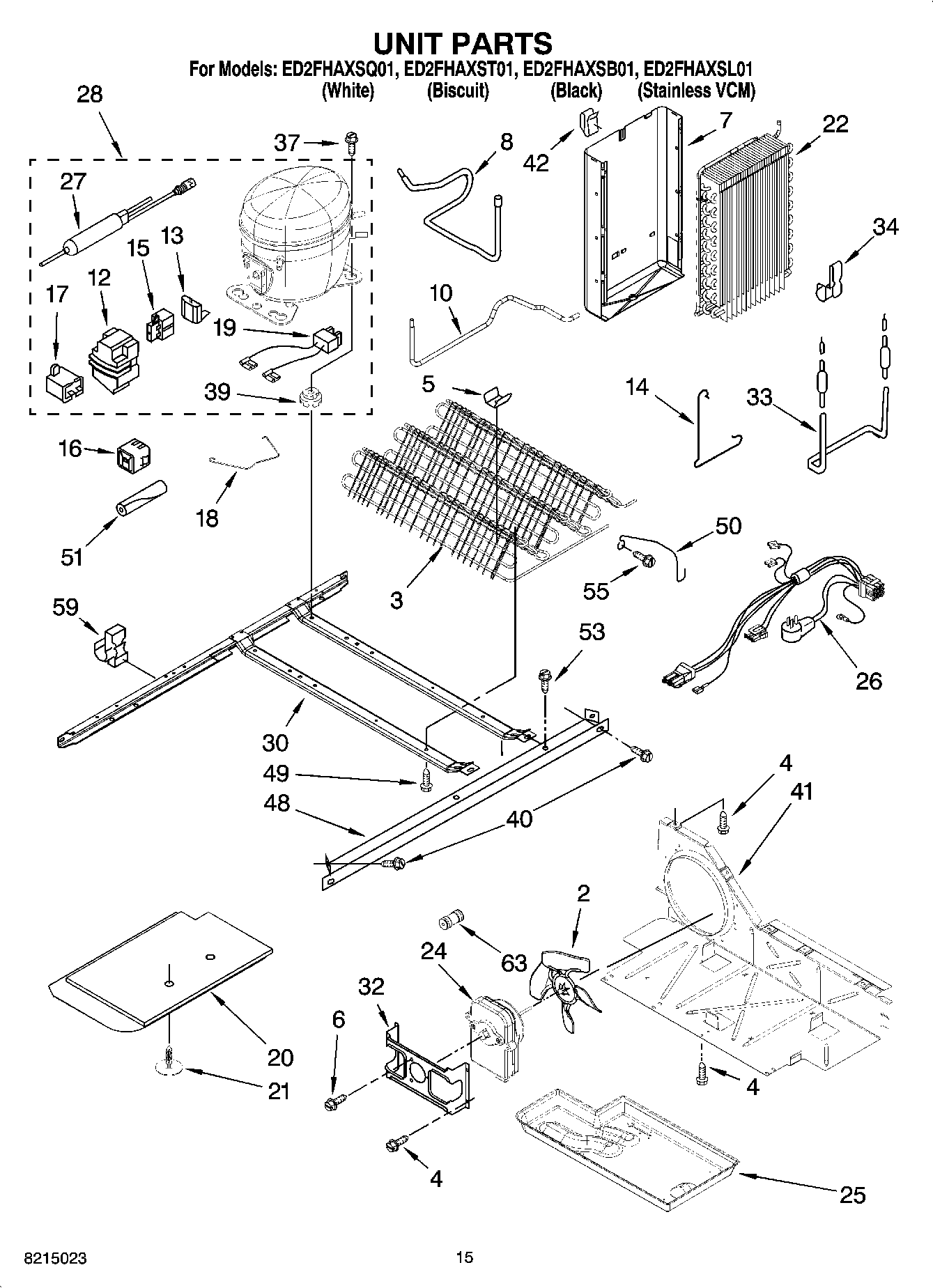

ED2FHAXSB01 09 – UNIT PARTS

ED2FHAXSB01 09 – UNIT PARTS

Written by

in

ED2FHAXSB01 09 – UNIT PARTS

Products

PositionProduct
2W11458267 Whirlpool Refrigerator Fan Blade
32324712 Whirlpool Refrigerator Condenser
4WP489464 Whirlpool Refrigerator Screw
5W10683556 Whirlpool Refrigerator Clip
6WP8533993 Whirlpool Refrigerator Screw
7Heat Shield
82205764 Whirlpool Refrigerator Tube
102261599 Whirlpool Refrigerator Tube
12WP2162358 Whirlpool Refrigerator Terminal Cover
13WP2187145 Whirlpool Refrigerator Overload
14Clamp
15W10920279 Whirlpool Refrigerator Start Relay
168201786 Whirlpool Relay and Overload Start Kit
17WPW10662129 Whirlpool Refrigerator Run Capacitor
182223314 Whirlpool Refrigerator Clip
19WP2172890 Whirlpool Refrigerator Wire
20W11115203 Whirlpool Control Panel
21489396 Whirlpool Refrigerator Clip
22WP2188822 Whirlpool Refrigerator Evaporator
24WP2188874 Whirlpool Refrigerator Condenser Motor
25WPW10614158 Whirlpool Refrigerator Evaporator Tray
26WPW10309395 Whirlpool Refrigerator Wire Harness
27W10843121 Whirlpool Refrigerator Tube
28W10309990 Whirlpool Refrigerator Compressor
302304903 Whirlpool Refrigerator Frame
32WP2181929 Whirlpool Refrigerator Bracket
33WP2323197 Whirlpool Refrigerator Heater
34W11623163 Whirlpool Refrigerator Clip
39876811 Whirlpool Grommet
39WP4387558 Whirlpool Refrigerator Compressor Grommet
40489340 Whirlpool Refrigerator Screw
41W10896764 Whirlpool Refrigerator Air Baffle
42Clip, Heat Shield
48Unit Mounting Rail
49W11544659 Whirlpool Refrigerator Screw
50Guard, Fan
51SLEEVE
53WP489427 Whirlpool Refrigerator Screw
55WP489478 Whirlpool Refrigerator Screw
59Clip, Wire & Tube
63VALVE, ACCESS (5/8“)
63Following Parts Not Illustrated
63and Optional Parts Not Included
63876764 Whirlpool Refrigerator Primary Valve
63978027 Whirlpool Refrigerator Primary Valve
63978030 Whirlpool Refrigerator Valve
63WP978025 Whirlpool Refrigerator Valve
63VALVE, ACCESS (1/2“)
63978026 Whirlpool Refrigerator Primary Valve
63WP4373559 Whirlpool Fitting
63REFRIGERANT CHA
