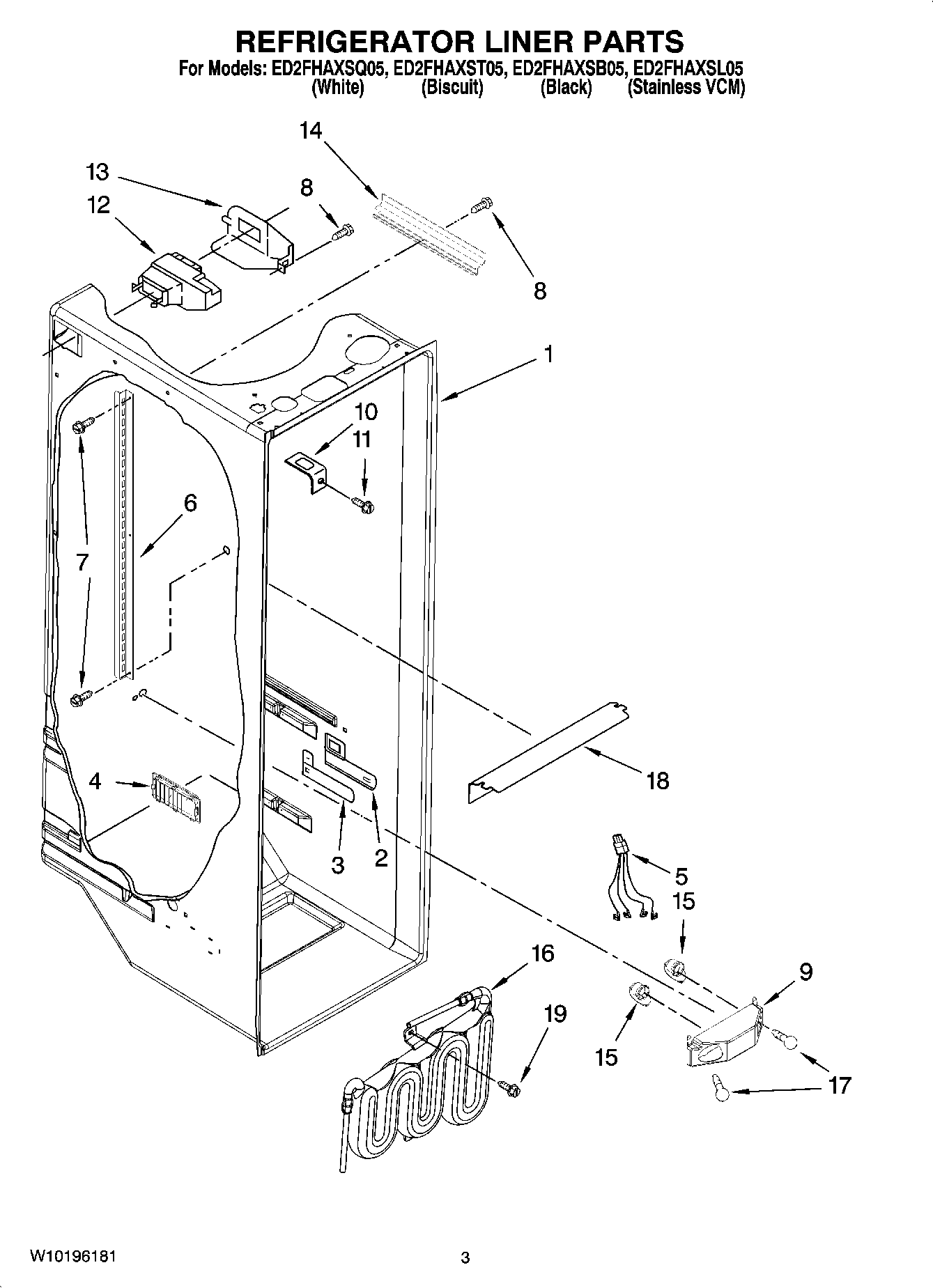

ED2FHAXSB05 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	W10175967 Whirlpool Refrigerator Escutcheon
3	2182757 Whirlpool Refrigerator Slide
4	Louver
5	2311637 Whirlpool Refrigerator Wire Harness
6	Shelf Ladder
7	WP489478 Whirlpool Refrigerator Screw
8	W10759522 Whirlpool Screw
9	Bracket, Dual Crisper Light
10	WP2256085 Whirlpool Refrigerator Retainer
11	WP488488 Whirlpool Refrigerator Screw
12	WPW10151374 Whirlpool Refrigerator Diffuser
13	2152019 Whirlpool Refrigerator Cover
14	2150331 Whirlpool Refrigerator Wire Cover
15	4387478 Whirlpool Refrigerator Light Socket
16	RESERVOIR
17	RANGE ONLY 40W 120V APPL BULB
18	Light Lens
19	Screw (2)
