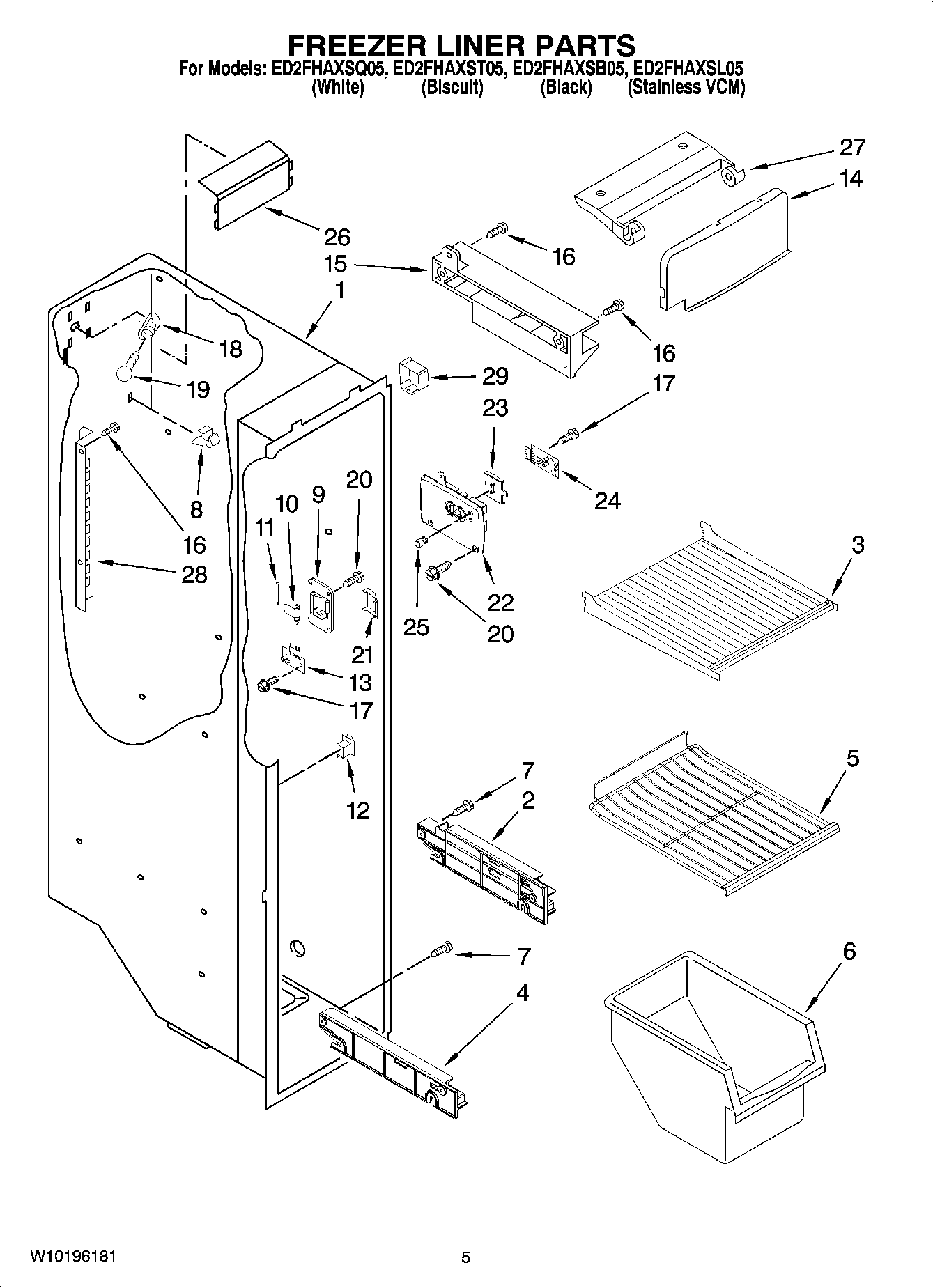

ED2FHAXSB05 04 – FREEZER LINER PARTS

Products

Position	Product
1	Liner (Not A Seviceable Part)
2	2301292 Whirlpool Refrigerator Track
2	2301291 Whirlpool Refrigerator Track
3	Shelf, Slide Out Lower (2)
4	Shelf Track (Left Side)
4	Shelf Track (Right Side)
5	Shelf (2)
6	Bin, Freezer
7	W10759522 Whirlpool Screw
8	2215823 Whirlpool Refrigerator Clip
9	WP2198587 Whirlpool Refrigerator Cover
10	WP2198635 Whirlpool Refrigerator Spring
11	WP2198634 Whirlpool Door Pin
12	W11457217 Whirlpool Refrigerator Rocker Switch Combination
13	W10757851-includeCORE Whirlpool Electronic Control+Core
14	W10180062 Whirlpool Refrigerator Ice Door
15	Slide, Ice Maker
16	WP489478 Whirlpool Refrigerator Screw
17	2006254 Whirlpool Refrigerator Screw
18	SOCKET
19	RANGE ONLY 40W 120V APPL BULB
20	WPW10142283 Whirlpool Refrigerator Screw
21	WP2198633 Whirlpool Refrigerator Flipper
22	Cover, Receiver
23	2315398 Whirlpool Refrigerator Slide
25	WP2198643 Whirlpool Refrigerator Lens
26	2212376 Whirlpool Light Lens
27	WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket
28	Ladder (Right Side)
28	Ladder (Left Side)
29	2303234 Whirlpool Refrigerator Shield
