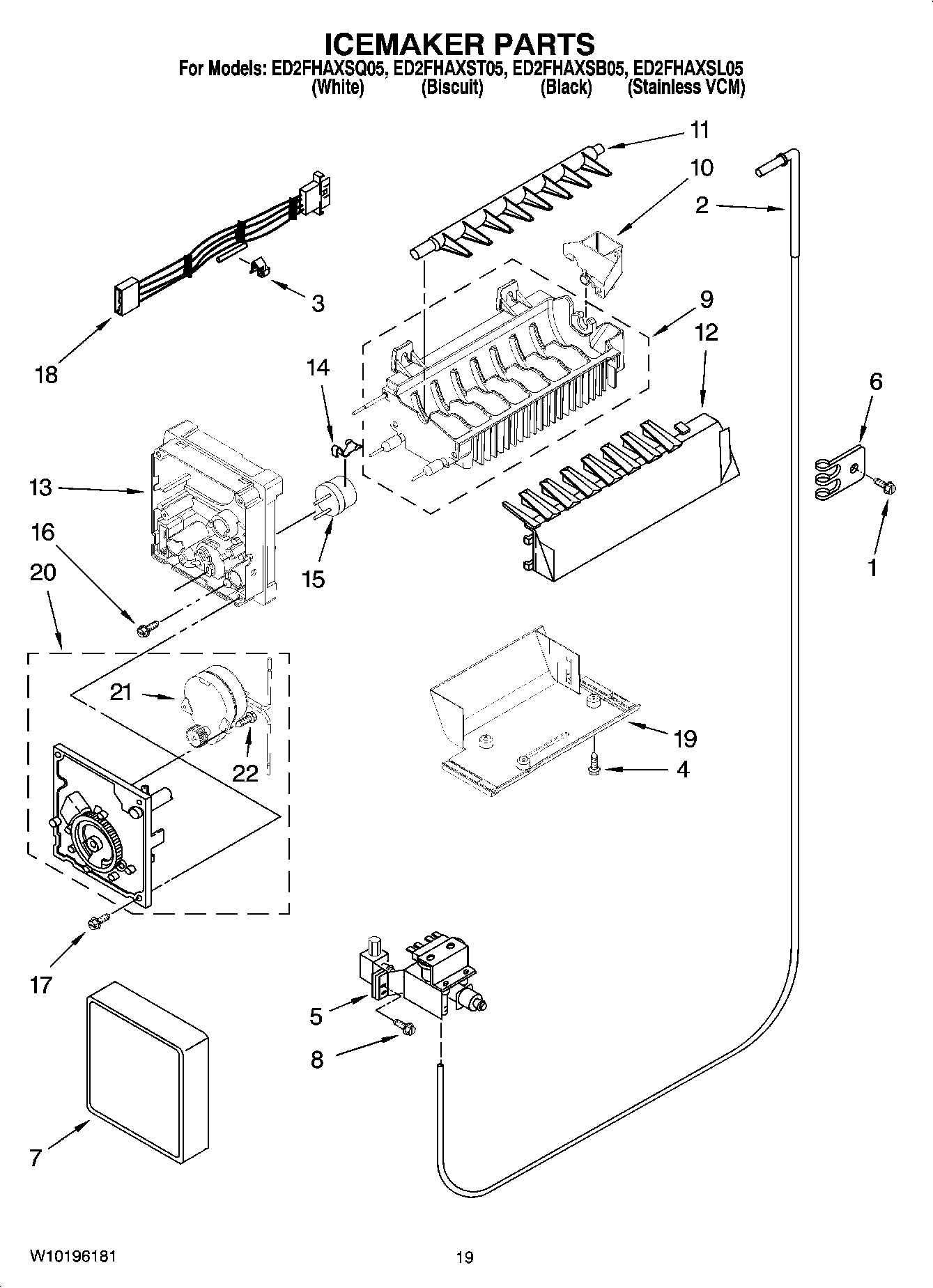

ED2FHAXSB05 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

ED2FHAXSB05 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

ED2FHAXSB05 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
350942 Whirlpool Spray Paint
833938 Whirlpool Refrigerator Terminal
WP503695 Whirlpool Refrigerator Sealer
WP505587 Whirlpool Refrigerator Sealer
WP542638 Whirlpool Refrigerator Grease
Torx Key
72032 Whirlpool Touch Up Paint Black
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799833
285006 Whirlpool Spray
212643 Whirlpool Refrigerator Permagum Sealer
TAPE, VINYL (3/4 X 108“)
72017 Whirlpool Appliance Touch-Up Paint White
TORX SCREW
Miscellaneous
Important: The spray paint is not to be used where the paint may make contact with the door gaskets.
799344 Whirlpool Refrigerator Paint
2WPW10140630 Whirlpool Refrigerator Fitting
3WP628379 Whirlpool Refrigerator Clip
4WP489478 Whirlpool Refrigerator Screw
5W10822681 Whirlpool Refrigerator Water Inlet Valve
6WP488366 Whirlpool Refrigerator Clamp
7WPW10289690 Whirlpool Ice Maker Cover
8WPW10141625 Whirlpool Refrigerator Screw Assembly
9WPW10122550 Whirlpool Refrigerator Ice Mold
10WPW10272168 Whirlpool Refrigerator Water Fill Cup
11626753 Whirlpool Refrigerator Ejector Arm
12W10297245 Whirlpool Refrigerator Arm Stripper
13WP2195914 Whirlpool Refrigerator Ice Maker Housing
14WP2315522 Whirlpool Refrigerator Clip
15WP627985 Whirlpool Icemaker Cycling Thermostat
168533917 Whirlpool Refrigerator Screw
17WP681249 Whirlpool Screw Assembly
18WPW10309401 Whirlpool Refrigerator Wire Harness
19Bracket, Icemaker Mounting
208201515 Whirlpool Refrigerator Motor and Gear Module Kit
21Motor (Not Serviced, Order 20)
22489136 Whirlpool Refrigerator Screw
100WPW10190961 Whirlpool Ice Maker
