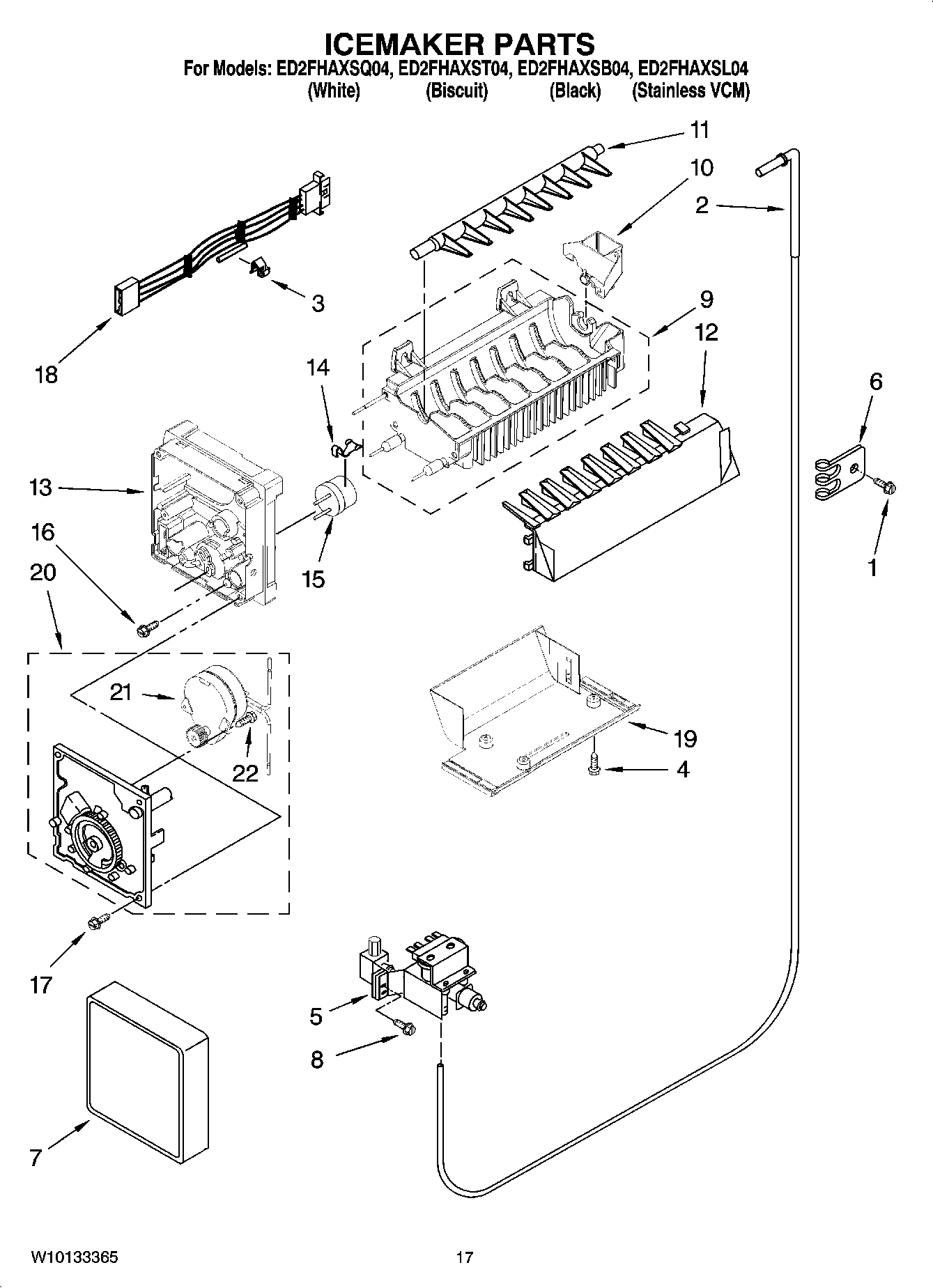

ED2FHAXSL04 10 – ICEMAKER PARTSadmin2025-04-26T09:43:47+00:00ED2FHAXSL04 10 – ICEMAKER PARTS ProductsPositionProduct2WP2256096 Whirlpool Refrigerator Fitting3WP628379 Whirlpool Refrigerator Clip4WP489478 Whirlpool Refrigerator Screw5W10822681 Whirlpool Refrigerator Water Inlet Valve6WP488366 Whirlpool Refrigerator Clamp7WPW10289690 Whirlpool Ice Maker Cover8WPW10141625 Whirlpool Refrigerator Screw Assembly9WPW10122550 Whirlpool Refrigerator Ice Mold10WP628356 Whirlpool Refrigerator Fill Cup11626753 Whirlpool Refrigerator Ejector Arm12W10297245 Whirlpool Refrigerator Arm Stripper13WP2195914 Whirlpool Refrigerator Ice Maker Housing14WP2315522 Whirlpool Refrigerator Clip15WP627985 Whirlpool Icemaker Cycling Thermostat168533917 Whirlpool Refrigerator Screw17WP681249 Whirlpool Screw Assembly18WPW10309401 Whirlpool Refrigerator Wire Harness19Bracket, Icemaker Mounting20W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly21Motor (Not Serviced, Order 20)22489136 Whirlpool Refrigerator Screw100WPW10190961 Whirlpool Ice Maker
