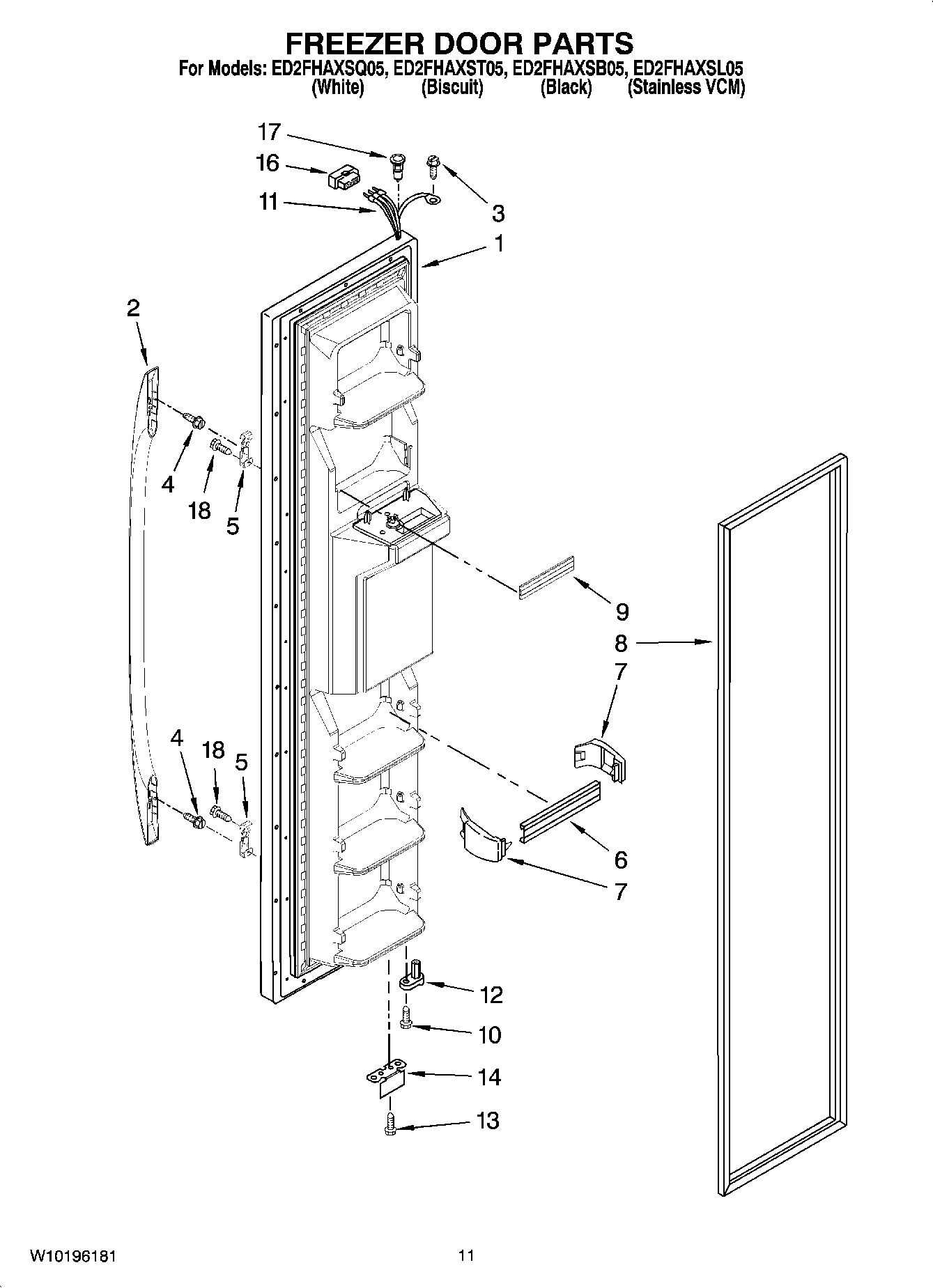

ED2FHAXST05 07 – FREEZER DOOR PARTS

ED2FHAXST05 07 – FREEZER DOOR PARTS

Written by

in

ED2FHAXST05 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (White)
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (Biscuit)
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (Stainless VCM)
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (Black)
2Handle (White)
2WPW10136232 Whirlpool Handle
2WPW10136231 Whirlpool Refrigerator Handle
3WP489128 Whirlpool Refrigerator Screw
4SCREW
5WP2255411 Whirlpool Refrigerator Clip
6Trim, Door (3)
7WP2195917K Whirlpool Refrigerator Endcap
82159080 Whirlpool Refrigerator Door Gasket
82159072 Whirlpool Refrigerator FIP Gasket
9WPW10307490 Whirlpool Door Trim Assembly
10WP3400012 Whirlpool Refrigerator Screw
112198619 Whirlpool Refrigerator Wire Harness
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14WP2206629B Whirlpool Refrigerator Bracket
16WP2154473 Whirlpool Refrigerator Connector
17WP2182181 Whirlpool Refrigerator Thimble
18WP489491 Whirlpool Refrigerator Screw
