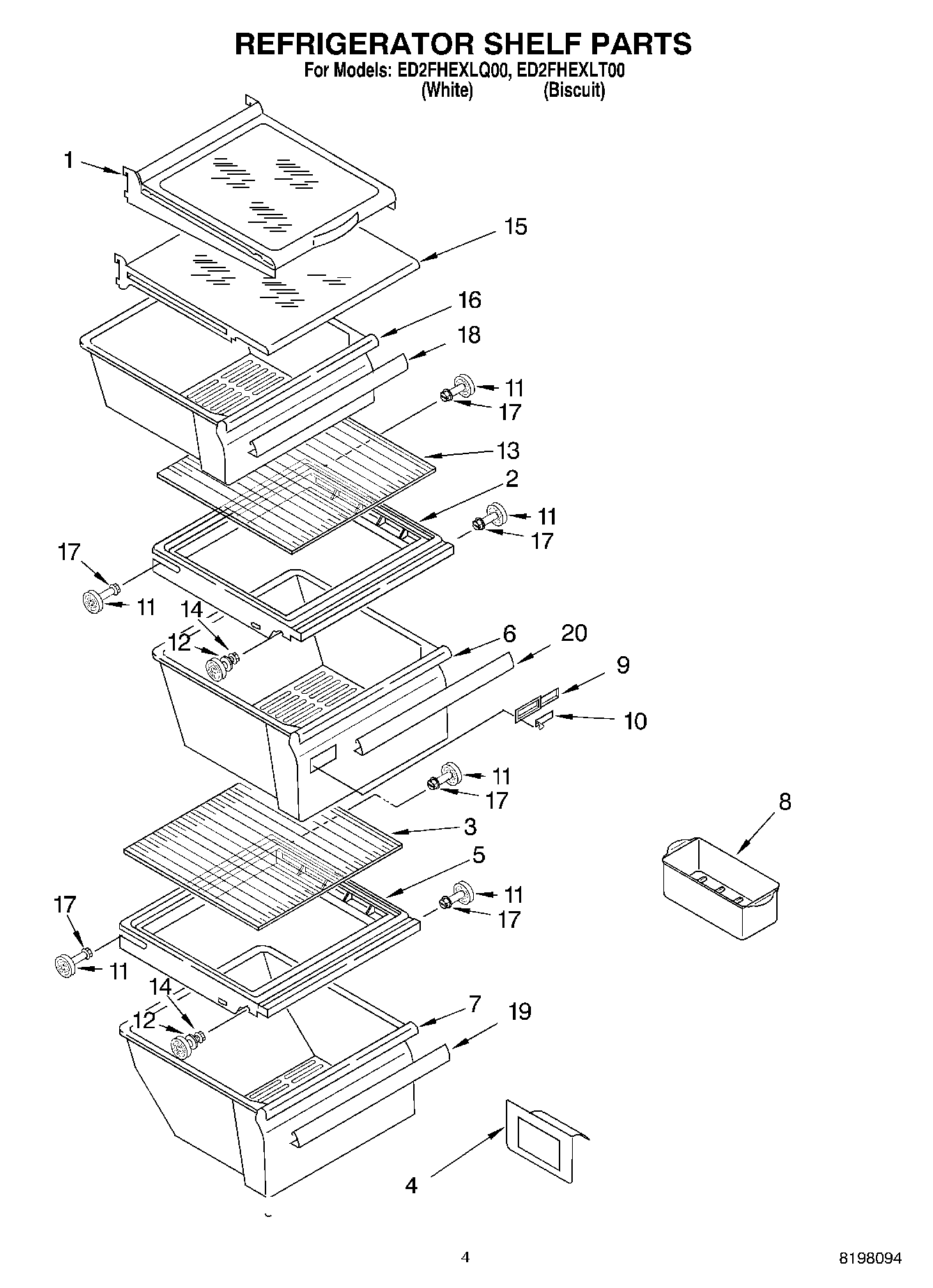

ED2FHEXLQ00 03 – REFRIGERATOR SHELF

ED2FHEXLQ00 03 – REFRIGERATOR SHELF

Written by

in

ED2FHEXLQ00 03 – REFRIGERATOR SHELF

Products

PositionProduct
1Shelf Assembly, Cantilever (2)
2W10508993 Whirlpool Refrigerator Cover Pan
42179350 Whirlpool Refrigerator Deflector
5Cover, Meat Pan
6PAN-CRISPR
7WP2188664 Whirlpool Dishwasher Meat Crisper Pan
8W10136387A Whirlpool Refrigerator Egg Container
9WP2179343 Whirlpool Refrigerator Control Body
10WP2179342 Whirlpool Refrigerator Slide
11WP2196483 Whirlpool Refrigerator Shelf Stud
12W11223328 Whirlpool Refrigerator Shelf Stud
13W10864399 Whirlpool Glass Shelf
14WP3-24004-109 Whirlpool Refrigerator Screw
15Shelf, Snack Bin
16W11497323 Whirlpool Snack Pan
17WP3400806 Whirlpool Screw
18WP2179243 Whirlpool Refrigerator Pan Trim
19WP2179234 Whirlpool Refrigerator Pan Trim
