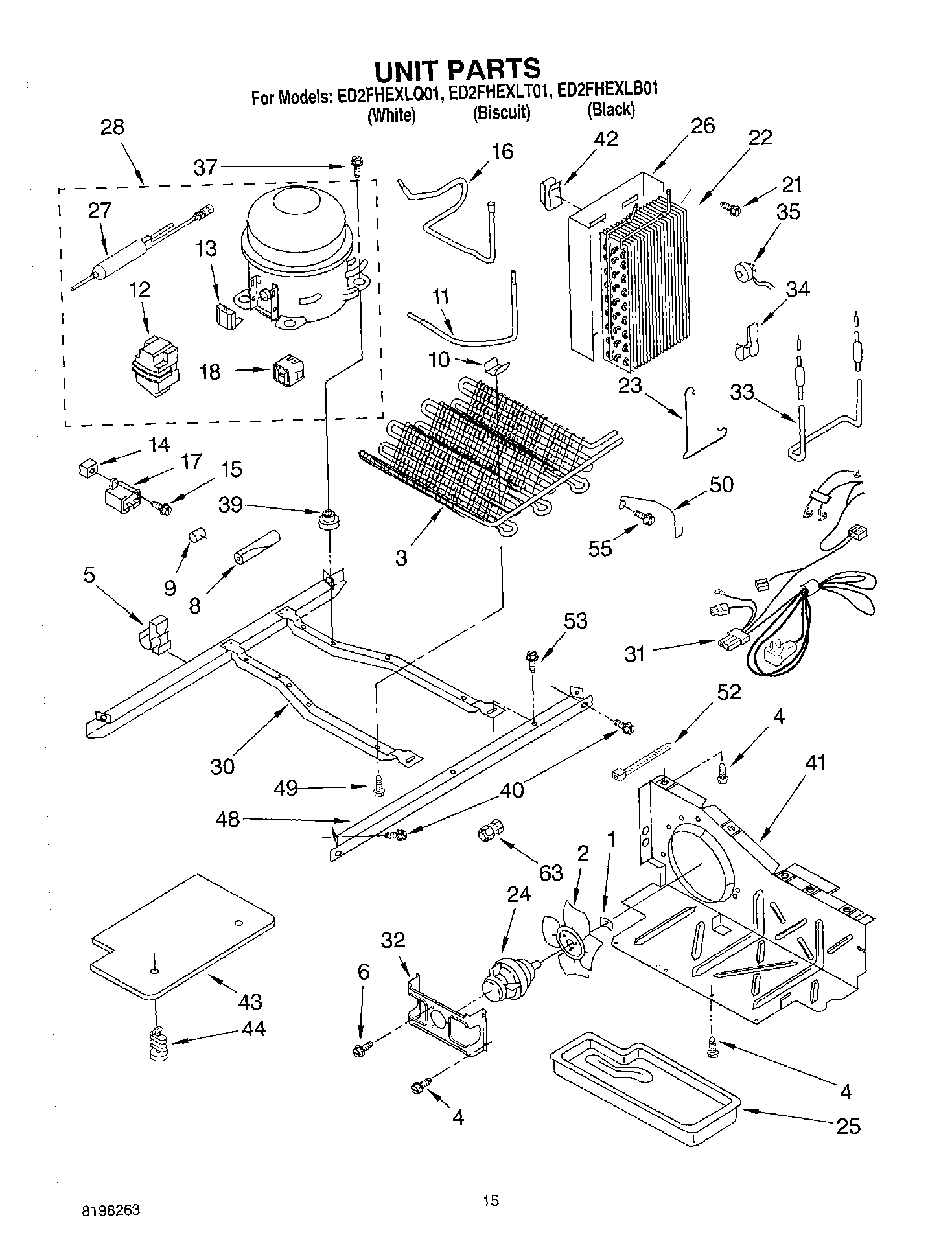

ED2FHEXLQ01 09 – UNIT

ED2FHEXLQ01 09 – UNIT

Written by

in

ED2FHEXLQ01 09 – UNIT

Products

PositionProduct
1WP486692 Whirlpool Refrigerator Nut
2Blade, Fan
3Condenser Assembly
4WP489464 Whirlpool Refrigerator Screw
5Clip, Wire & Tube
6681390 Whirlpool Refrigerator Screw
8SLEEVE
9WP2158826 Whirlpool Refrigerator Dampener
10W10683556 Whirlpool Refrigerator Clip
11Tube, Condenser to Heat Loop
12WP2162358 Whirlpool Refrigerator Terminal Cover
13OVERLOAD
14Screw Grommet
15W11693756 Whirlpool Screw Assembly
162205764 Whirlpool Refrigerator Tube
17WP4387764 Whirlpool Run Capacitor
17WPW10662129 Whirlpool Refrigerator Run Capacitor
188201786 Whirlpool Relay and Overload Start Kit
21WP489478 Whirlpool Refrigerator Screw
22WP2188822 Whirlpool Refrigerator Evaporator
23Clamp
24W10822259 Whirlpool Refrigerator Condenser Fan Motor
25WPW10614158 Whirlpool Refrigerator Evaporator Tray
26Heat Shield
27W10843121 Whirlpool Refrigerator Tube
28876765 Whirlpool Primary Mounting Kit Refrigerator
28W10309990 Whirlpool Refrigerator Compressor
302304903 Whirlpool Refrigerator Frame
31Unit, Harness
32WP2181929 Whirlpool Refrigerator Bracket
33WP2323197 Whirlpool Refrigerator Heater
34Clip
35WPW10225581 Whirlpool Refrigerator Defrost Thermostat
37SCREW
39WP4387558 Whirlpool Refrigerator Compressor Grommet
39W11661108 Whirlpool Grommet
40489340 Whirlpool Refrigerator Screw
41W10896764 Whirlpool Refrigerator Air Baffle
42Clip, Heat Shield
43Unit Cover, Bottom
44489396 Whirlpool Refrigerator Clip
48Unit Mounting Rail
49W11544659 Whirlpool Refrigerator Screw
50Guard, Fan
52WPW10339879 Whirlpool Wire Tie
53WP489427 Whirlpool Refrigerator Screw
55WPW10141625 Whirlpool Refrigerator Screw Assembly
63978030 Whirlpool Refrigerator Valve
63VALVE, ACCESS (5/8“)
63VALVE, ACCESS (1/2“)
63876764 Whirlpool Refrigerator Primary Valve
63WP978025 Whirlpool Refrigerator Valve
63978026 Whirlpool Refrigerator Primary Valve
63978027 Whirlpool Refrigerator Primary Valve
63WP4373559 Whirlpool Fitting
