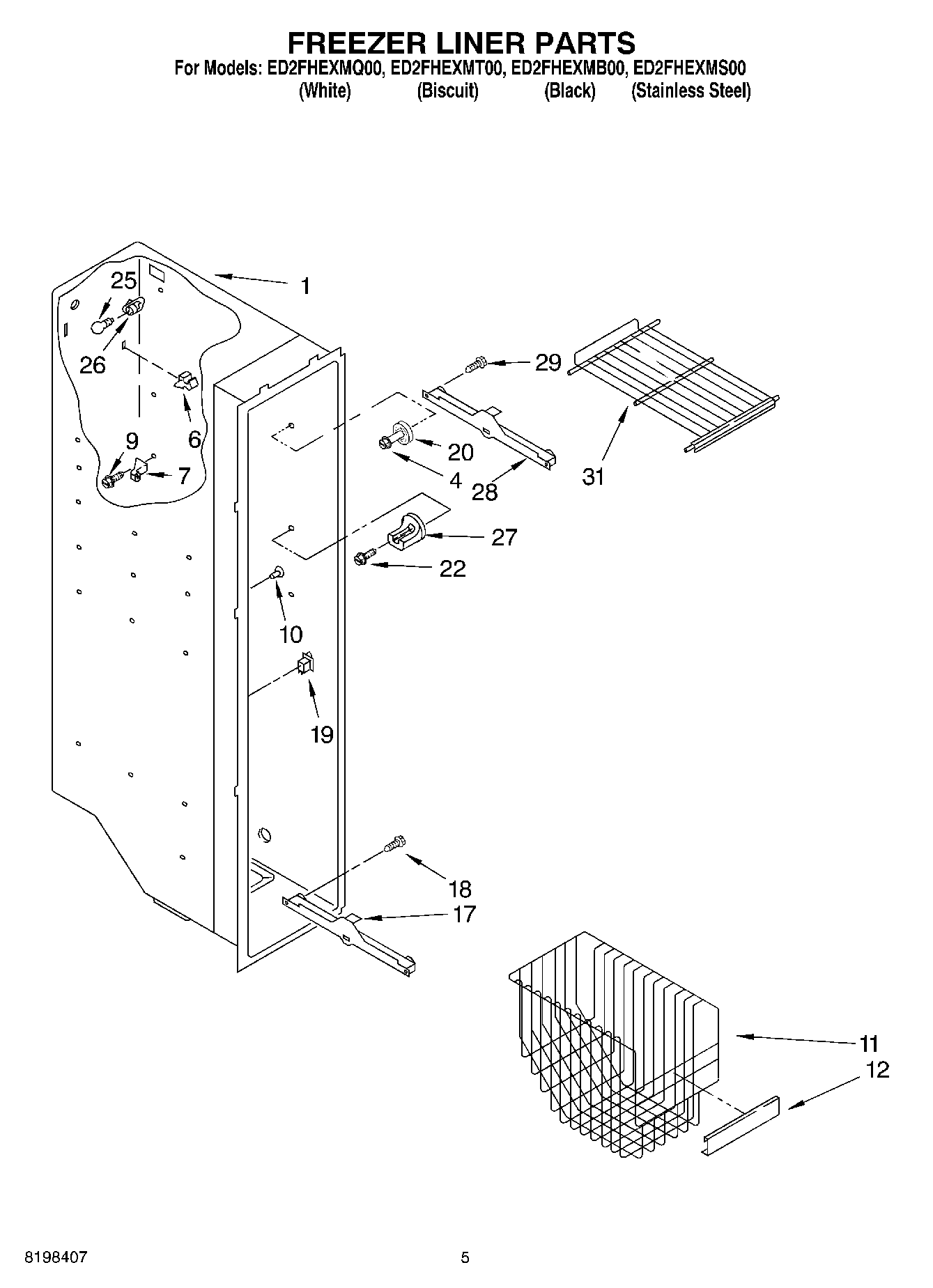

ED2FHEXMQ00 04 – FREEZER LINER PARTS
Written by
in
ED2FHEXMQ00 04 – FREEZER LINER PARTS
Products
Position
Product
1
Liner (Not A Seviceable Part) Compartment
4
WP3400806 Whirlpool Screw
6
2215823 Whirlpool Refrigerator Clip
7
4388405 Whirlpool Refrigerator Shelf Stud
10
Grommet
11
Freezer Bin
12
2195904K Whirlpool Refrigerator Basket Trim
17
Slide, Basket (Right Side (2))
17
Slide, Basket (Left Side (2))
18
W10759522 Whirlpool Screw
19
W11457217 Whirlpool Refrigerator Rocker Switch Combination
20
WP2196483 Whirlpool Refrigerator Shelf Stud
22
W10142289 Whirlpool Air Conditioner Screw
25
RANGE ONLY 40W 120V APPL BULB
26
4387478 Whirlpool Refrigerator Light Socket
27
Stud, Rear
28
W10845585 Whirlpool Refrigerator Track
28
W10845583 Whirlpool Refrigerator Track
29
718257 Whirlpool Dishwasher Screw
31
WP2174249K Whirlpool Refrigerator Wire Shelf
31
Shelf (2)
←
