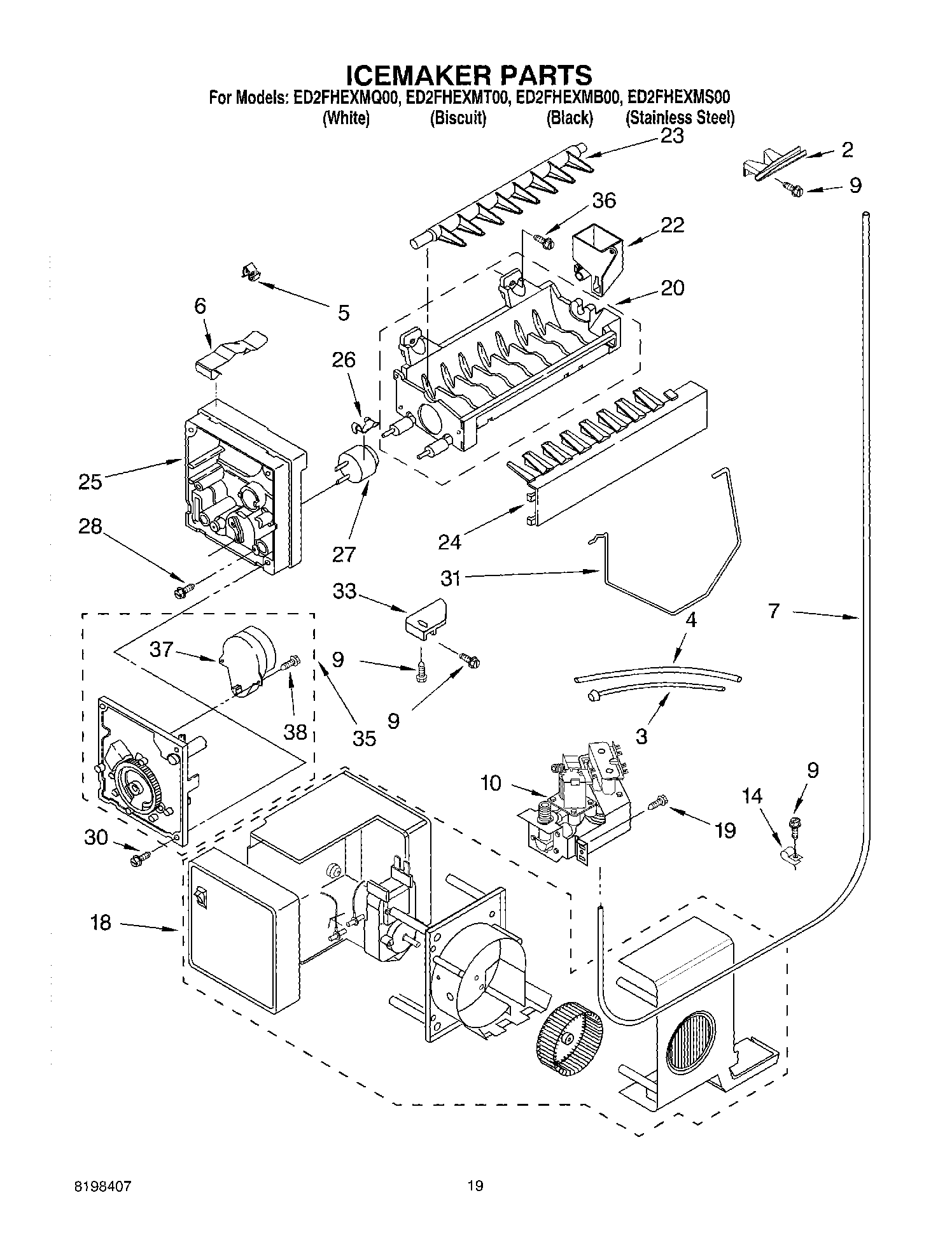

ED2FHEXMT00 12 – ICEMAKER PARTS, PARTS NOT ILLUSTRATED

ED2FHEXMT00 12 – ICEMAKER PARTS, PARTS NOT ILLUSTRATED

Written by

in

ED2FHEXMT00 12 – ICEMAKER PARTS, PARTS NOT ILLUSTRATED

Products

Position	Product
NI	WPL ARI29315A1
NI	Torx Key
NI	WP542638 Whirlpool Refrigerator Grease
NI	WP505587 Whirlpool Refrigerator Sealer
NI	WP503695 Whirlpool Refrigerator Sealer
NI	876370 Whirlpool Refrigerator Insulation
NI	833938 Whirlpool Refrigerator Terminal
NI	606755 Whirlpool Refrigerator Bag
NI	511873 Whirlpool Refrigerator Paint
NI	4392901 Whirlpool Biscuit Spray Paint
NI	4392899 Whirlpool Biscuit Touch-Up Paint
NI	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
NI	TAPE, VINYL (3/4 X 108“)
NI	WPL ARI29314A4
NI	WPL ARI29313A6
NI	WPL ARI29312A6
NI	Cleaner, Stainless Steel
NI	WPW10312301 Whirlpool Refrigerator Ice Container
NI	72032 Whirlpool Touch Up Paint Black
NI	285006 Whirlpool Spray
NI	WPL 876029
NI	WPL 799833
NI	Enamel, Black (1 Qt. Uncut)
NI	350942 Whirlpool Spray Paint
NI	CEMENT, ALUMILASTIC (1 1/4 OZ.)
NI	Almond (Uncut)
NI	WP72107 Whirlpool Touchup
NI	799344 Whirlpool Refrigerator Paint
NI	72017 Whirlpool Appliance Touch-Up Paint White
NI	350956 Whirlpool Spray Assembly
NI	212643 Whirlpool Refrigerator Permagum Sealer
NI	350930 Whirlpool White Spray Paint
NI	WPL ARI29316A5
2	W11505385 Whirlpool Refrigerator Chute
3	WPW10350006 Whirlpool Refrigerator Water Tube
4	8201597 Whirlpool Inlet Water Fill Tube Kit Filter
5	WP628379 Whirlpool Refrigerator Clip
6	Clip, Icemaker
7	W10823511 Whirlpool Refrigerator Water Tube
9	WP489478 Whirlpool Refrigerator Screw
10	W10408179 Whirlpool Ice Maker Water Inlet Fill Valve Kit
14	WP488366 Whirlpool Refrigerator Clamp
18	Max-Ice Assembly
19	WPW10141625 Whirlpool Refrigerator Screw Assembly
20	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
22	WP628356 Whirlpool Refrigerator Fill Cup
23	WP627843 Whirlpool Refrigerator Ejector Arm
24	WP2182124 Whirlpool Refrigerator Stripper Arm
25	WP2195914 Whirlpool Refrigerator Ice Maker Housing
26	WP2315522 Whirlpool Refrigerator Clip
27	WP627985 Whirlpool Icemaker Cycling Thermostat
28	8533917 Whirlpool Refrigerator Screw
30	WP681249 Whirlpool Screw Assembly
31	W11342242 Whirlpool Refrigerator Ice Level Arm
33	W11500948 Whirlpool Refrigerator Bracket
35	8201515 Whirlpool Refrigerator Motor and Gear Module Kit
36	WP488163 Whirlpool Refrigerator Screw
37	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
38	489136 Whirlpool Refrigerator Screw
100	4317943 Whirlpool Refrigerator Ice Maker Assembly
