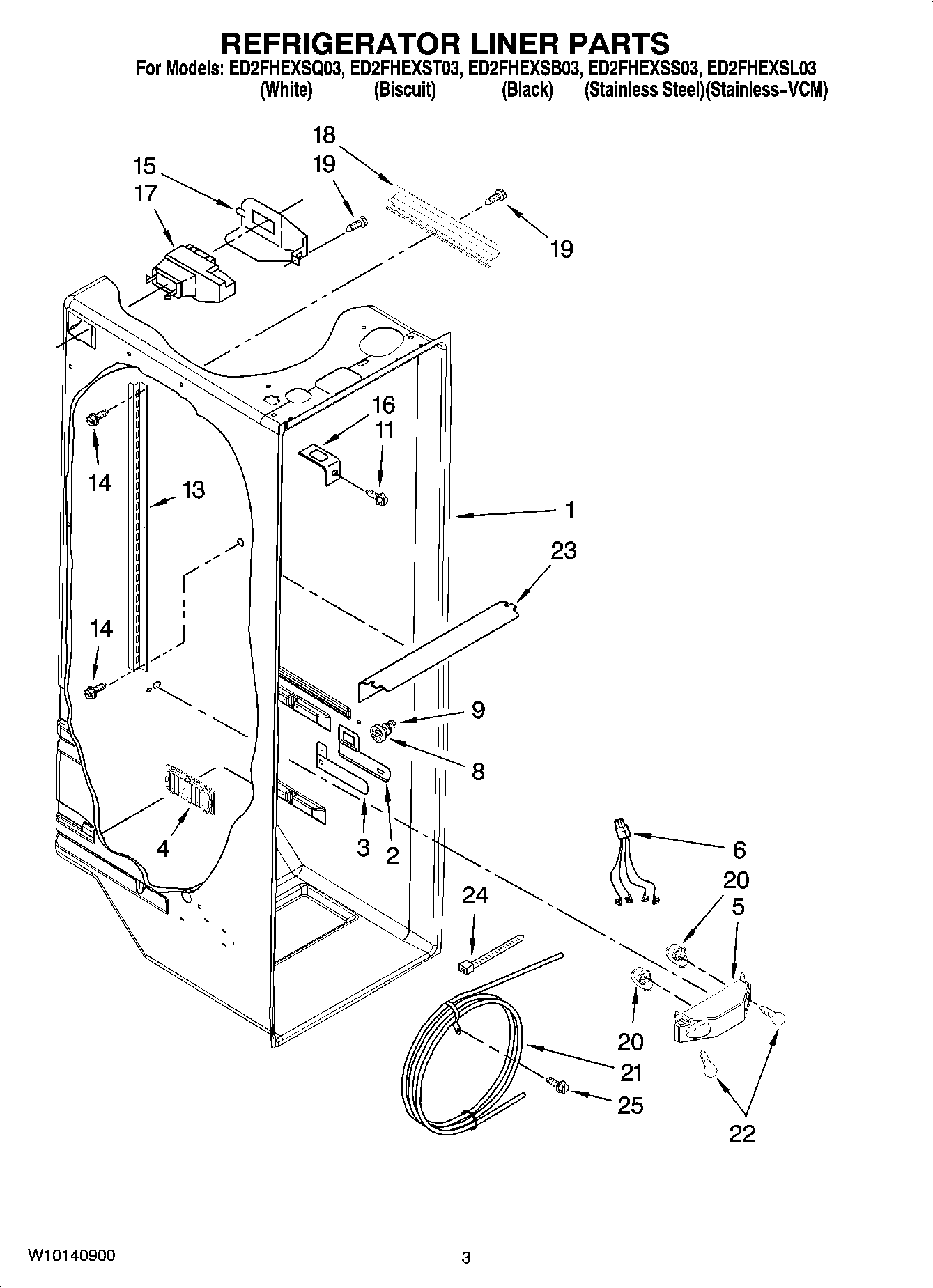

ED2FHEXSB03 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
22194744 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
5Bracket, Dual Crisper Light
62311637 Whirlpool Refrigerator Wire Harness
8W11223328 Whirlpool Refrigerator Shelf Stud
9WP3-24004-109 Whirlpool Refrigerator Screw
11WP488488 Whirlpool Refrigerator Screw
13Shelf Ladder
14WP489478 Whirlpool Refrigerator Screw
152152019 Whirlpool Refrigerator Cover
16WP2256085 Whirlpool Refrigerator Retainer
17WPW10151374 Whirlpool Refrigerator Diffuser
182150331 Whirlpool Refrigerator Wire Cover
19W10759522 Whirlpool Screw
204387478 Whirlpool Refrigerator Light Socket
21WP2256126 Whirlpool Refrigerator Reservoir
22RANGE ONLY 40W 120V APPL BULB
23Light Lens
24WPW10339879 Whirlpool Wire Tie
25Screw (2)
