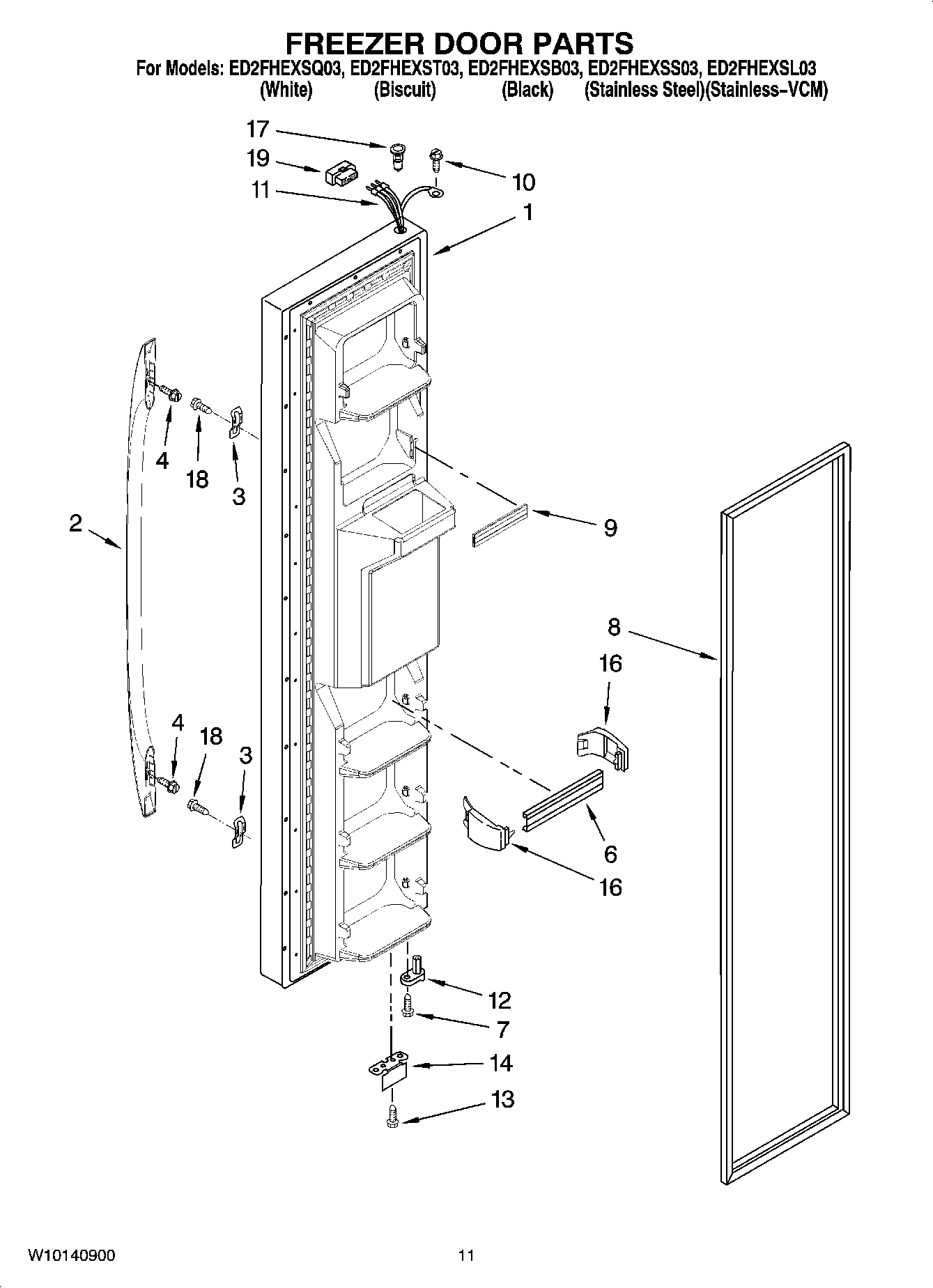

ED2FHEXSB03 07 – FREEZER DOOR PARTS

ED2FHEXSB03 07 – FREEZER DOOR PARTS

Written by

in

ED2FHEXSB03 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (White)
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (Biscuit)
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (Stainless Steel)
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (Stainless-VCM)
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (Black)
2W10187086 Whirlpool Refrigerator Handle
2W10187087 Whirlpool Refrigerator Handle
2Handle (White)
3WP2255411 Whirlpool Refrigerator Clip
4SCREW
6Trim, Door (3)
7WP3400012 Whirlpool Refrigerator Screw
82159080 Whirlpool Refrigerator Door Gasket
82159072 Whirlpool Refrigerator FIP Gasket
9WPW10307490 Whirlpool Door Trim Assembly
10WP489128 Whirlpool Refrigerator Screw
112311642 Whirlpool Refrigerator Wire Harness
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14WP2206629B Whirlpool Refrigerator Bracket
16WP2195917K Whirlpool Refrigerator Endcap
17WP2182181 Whirlpool Refrigerator Thimble
17Thimble, Top (For Stainless Steel Models)
18WP489491 Whirlpool Refrigerator Screw
19WP2154473 Whirlpool Refrigerator Connector
