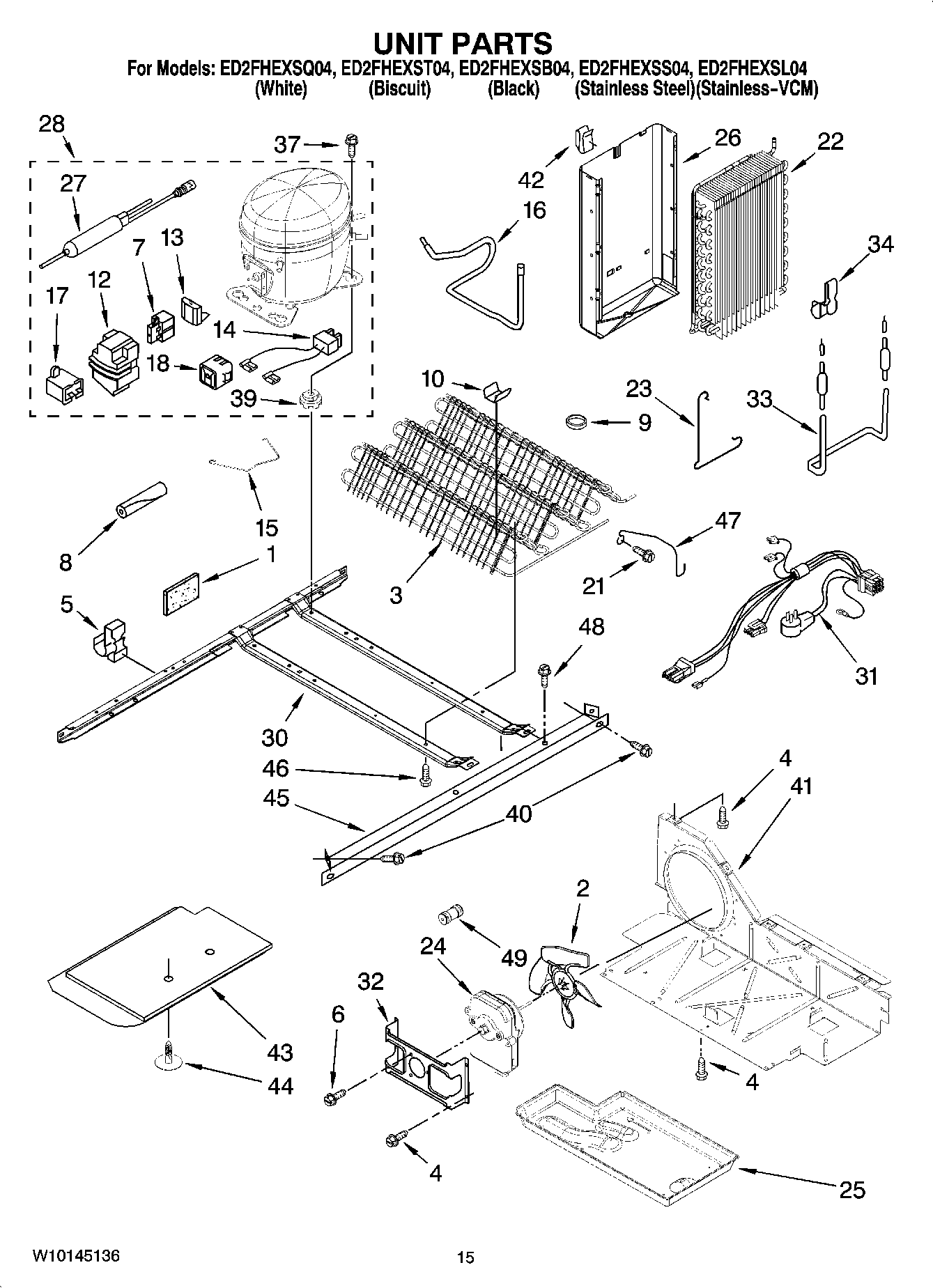

ED2FHEXSB04 09 – UNIT PARTS

Products

Position	Product
1	W11553819 Whirlpool Refrigerator Insulation
2	W11458267 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire & Tube
6	WP8533993 Whirlpool Refrigerator Screw
7	W10920279 Whirlpool Refrigerator Start Relay
8	SLEEVE
9	Bushing, Compressor
10	W10683556 Whirlpool Refrigerator Clip
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	WP2187145 Whirlpool Refrigerator Overload
14	WP2172890 Whirlpool Refrigerator Wire
15	2212996 Whirlpool Refrigerator Retainer
16	2220642 Whirlpool Refrigerator Tube
17	WPW10662129 Whirlpool Refrigerator Run Capacitor
17	WP65889-4 Whirlpool Refrigerator Capacitor
18	WP2188831 Whirlpool Refrigerator Start Device
21	WP489478 Whirlpool Refrigerator Screw
22	WP2188822 Whirlpool Refrigerator Evaporator
23	Clamp
24	WP2188874 Whirlpool Refrigerator Condenser Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	2217195 Whirlpool Refrigerator Shield
27	WPW10143759 Whirlpool Dryer Filter
28	W10355489 Whirlpool Refrigerator Compressor
30	2304903 Whirlpool Refrigerator Frame
31	WPW10309395 Whirlpool Refrigerator Wire Harness
32	WP2181929 Whirlpool Refrigerator Bracket
33	WP2323197 Whirlpool Refrigerator Heater
34	W11623163 Whirlpool Refrigerator Clip
39	WP4387558 Whirlpool Refrigerator Compressor Grommet
39	876811 Whirlpool Grommet
40	489340 Whirlpool Refrigerator Screw
41	W10896764 Whirlpool Refrigerator Air Baffle
42	Clip, Heat Shield
43	W11115203 Whirlpool Control Panel
44	489396 Whirlpool Refrigerator Clip
45	Unit Mounting Rail
46	W11544659 Whirlpool Refrigerator Screw
47	Guard, Fan
48	WP489427 Whirlpool Refrigerator Screw
49	VALVE, ACCESS (5/8“)
49	876764 Whirlpool Refrigerator Primary Valve
49	Following Parts Not Illustrated and Optional Parts Not Included
49	WPW10334458 Whirlpool Refrigerator Connector
49	978027 Whirlpool Refrigerator Primary Valve
49	978030 Whirlpool Refrigerator Valve
49	WP978025 Whirlpool Refrigerator Valve
49	VALVE, ACCESS (1/2“)
49	978026 Whirlpool Refrigerator Primary Valve
49	REFRIGERA
