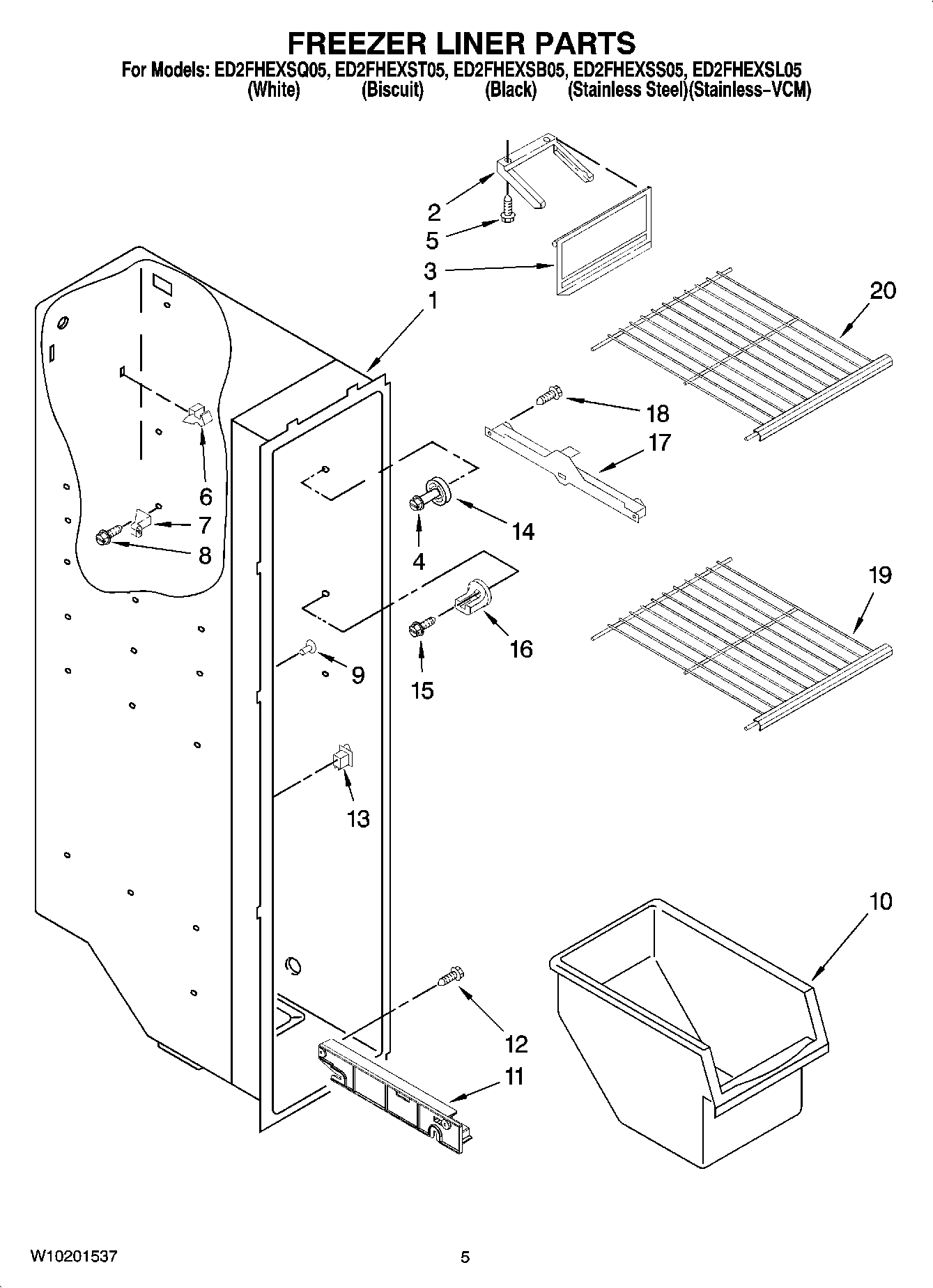

ED2FHEXSB05 04 – FREEZER LINER PARTS

Products

Position	Product
1	Liner (Not A Seviceable Part) Compartment
2	Slide, Ice Door
3	2171712 Whirlpool Refrigerator Ice Door
4	WP3400806 Whirlpool Screw
5	WP489478 Whirlpool Refrigerator Screw
6	2215823 Whirlpool Refrigerator Clip
7	4388405 Whirlpool Refrigerator Shelf Stud
9	Grommet
10	Bin, Freezer
11	Slide, Basket (Left Side)
11	WP2261449 Whirlpool Refrigerator Track
12	W10759522 Whirlpool Screw
13	W11457217 Whirlpool Refrigerator Rocker Switch Combination
14	WP2196483 Whirlpool Refrigerator Shelf Stud
15	W10142289 Whirlpool Air Conditioner Screw
16	Stud, Rear
17	W10845585 Whirlpool Refrigerator Track
17	W10845583 Whirlpool Refrigerator Track
18	718257 Whirlpool Dishwasher Screw
19	WP2174249K Whirlpool Refrigerator Wire Shelf
20	Shelf (2)
