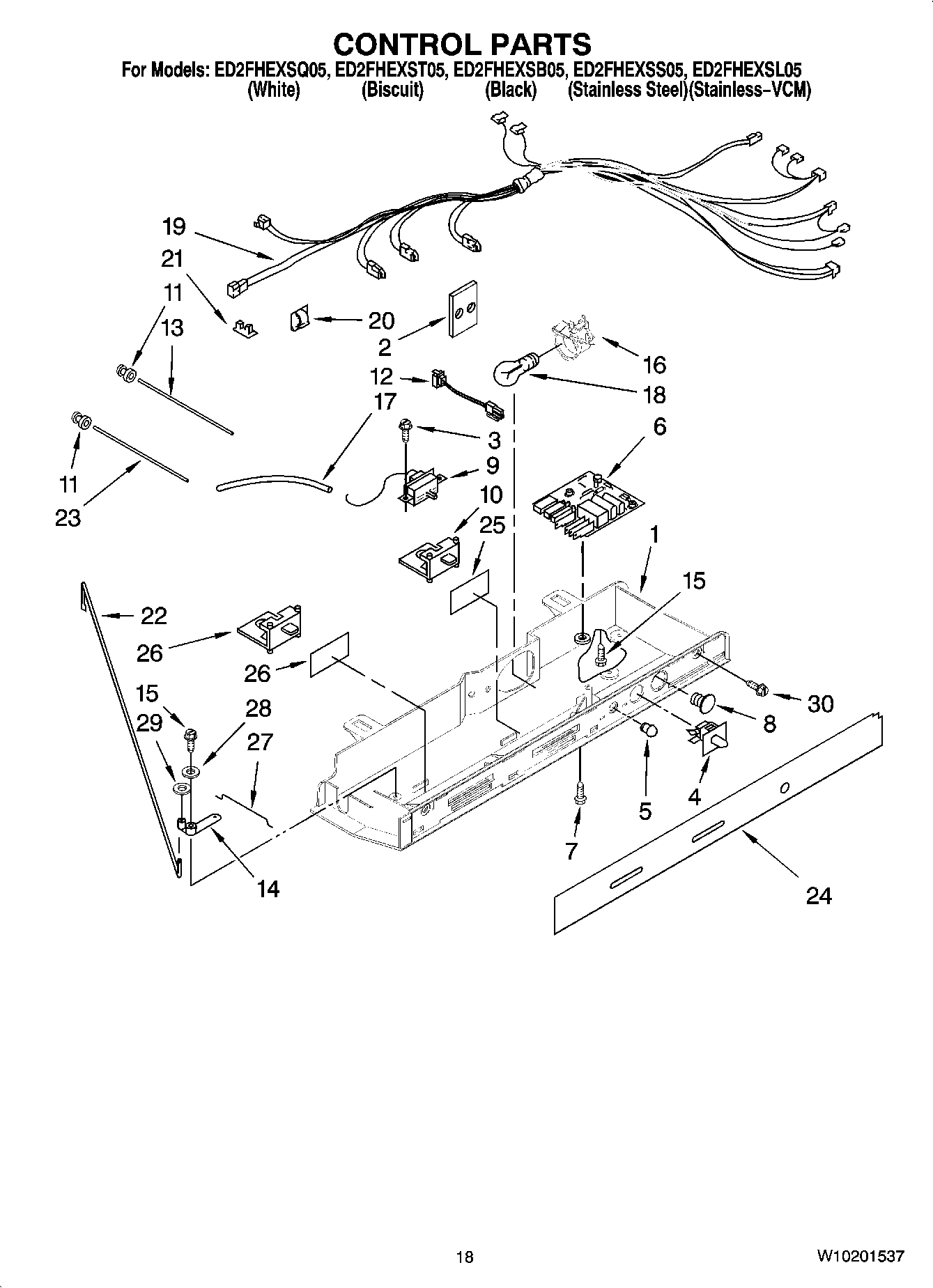

ED2FHEXSB05 11 – CONTROL PARTS

Products

Position	Product
1	Control Box
2	2172931 Whirlpool Refrigerator Shield
3	2006254 Whirlpool Refrigerator Screw
4	WP2149705 Whirlpool Refrigerator Door Switch
5	COVER, LIGHT LENS
6	WPW10366605-includeCORE Whirlpool WPW10366605 Refrigerator Electronic Control Board + Core
7	489392 Whirlpool Refrigerator Screw
8	940014 Whirlpool Refrigerator Primary Button Plug
9	WP2315562 Whirlpool Refrigerator Thermostat
10	2161466 Whirlpool Refrigerator Slide
11	Grommet, Light Fiber
12	W10853646 Whirlpool Indicator Light
13	Fiber Optic
14	2161306 Whirlpool Refrigerator Arm Pivot
15	627068 Whirlpool Refrigerator Screw
16	4387478 Whirlpool Refrigerator Light Socket
17	WP2196003 Whirlpool Refrigerator Bar Riser
18	RANGE ONLY 40W 120V APPL BULB
19	2311632 Whirlpool Refrigerator Wire Harness
20	WP1115374 Whirlpool Refrigerator Clip
21	CLIP, WIRING
22	2161308 Whirlpool Refrigerator Rod
23	Light Bar (FC)
24	Escutcheon, Control Box
25	Window
26	2181741 Whirlpool Refrigerator Slide
27	2161307 Whirlpool Refrigerator Rod
28	489203 Whirlpool Refrigerator Washer
29	Fastener, Push-On
