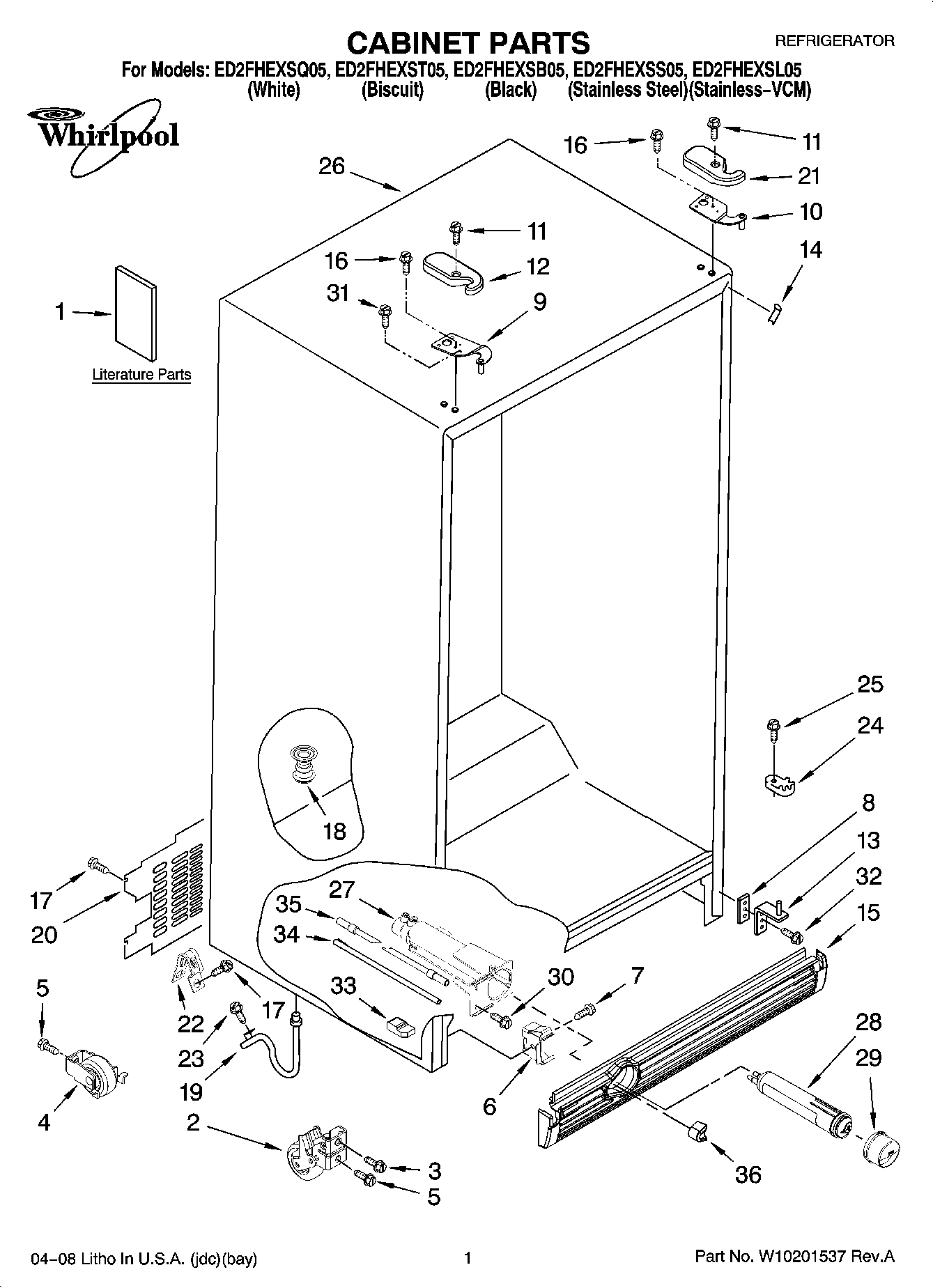

ED2FHEXSL05 01 – CABINET PARTS

Products

Position	Product
1	Service & Wiring Sheet
1	Use & Care Guide
1	Modular Icemaker Service Sheet
1	INSTRUCTION SHEET (DOOR REMOVAL)
1	Energy Guide
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
8	WP2209697 Whirlpool Refrigerator Shim
9	WP2203770 Whirlpool Refrigerator Door Hinge
10	WP2203771 Whirlpool Refrigerator Door Hinge
11	WP8281227 Whirlpool Screw
12	2203407T Whirlpool Refrigerator Cover
12	WP2203407W Whirlpool Refrigerator Cover
12	WP2203407B Whirlpool Refrigerator Cover
13	8201707 Whirlpool Door Hinge
14	Filler, Wrapper (White)
14	Filler, Wrapper (Black)
14	Filler, Wrapper (Biscuit)
15	Grille (Black)
15	Grille (White)
15	Grille (Biscuit)
17	WP489464 Whirlpool Refrigerator Screw
18	W11566763 Whirlpool Fitting
19	Extension Tube
20	WP2188756 Whirlpool Refrigerator Unit Cover
21	Hinge Cover (Biscuit)
21	WP2203408W Whirlpool Refrigerator Cover
21	WP2203408B Whirlpool Refrigerator Cover
22	549193 Whirlpool Refrigerator Power Clamp
24	WPW10329686 Whirlpool Door Cam Black
25	WP489483 Whirlpool Screw
26	Cabinet, (Not A Serviceable Part)
27	WPW10121138 Whirlpool Refrigerator Water Filter Housing
28	FILTER 3-SINGLE TEAL
29	Cap, Water Filter (Biscuit)
29	WP2260518B Whirlpool Water Filter Cap
29	WP2260518W Whirlpool Refrigerator Filter Cap
30	WP489500 Whirlpool Refrigerator Screw
31	WP489128 Whirlpool Refrigerator Screw
32	WP489497 Whirlpool Screw
33	Block, Housing Support
34	WPW10350006 Whirlpool Refrigerator Water Tube
35	8201597 Whirlpool Inlet Water Fill Tube Kit Filter
36	WP2260503B Whirlpool Refrigerator Button
36	2260503W Whirlpool Refrigerator Button
