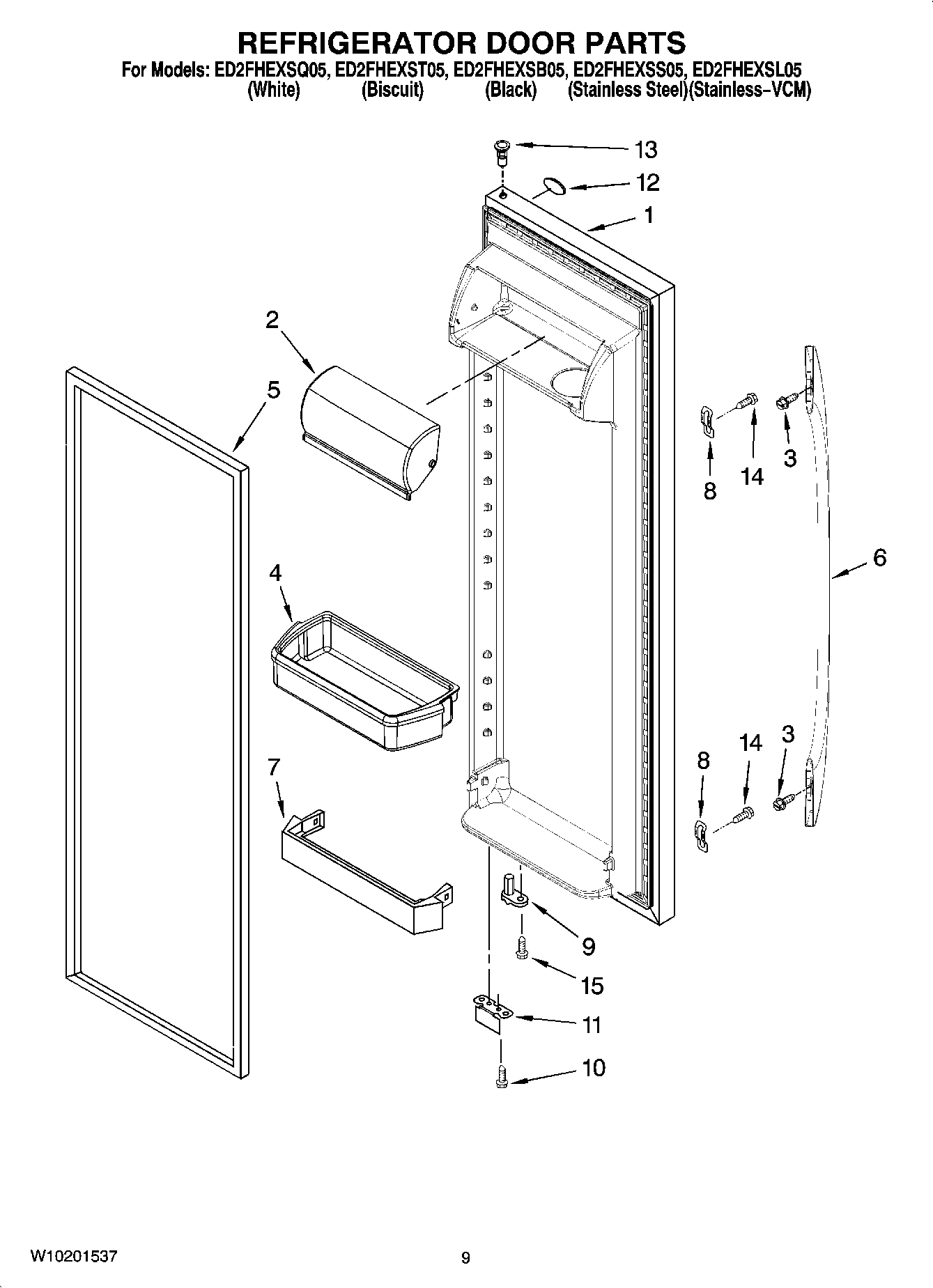

ED2FHEXSL05 06 – REFRIGERATOR DOOR PARTS

ED2FHEXSL05 06 – REFRIGERATOR DOOR PARTS

Written by

in

ED2FHEXSL05 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Item 8) (Biscuit)
1Refrigerator Door (Includes Item 8) (Stainless VCM)
1Refrigerator Door (Includes Item 8) (Black)
1Refrigerator Door (Includes Item 8) (White)
1Refrigerator Door (Includes Item 6) (Stainless Steel)
2WP2256101 Whirlpool Dairy Door
3SCREW
4WPW10321304 Whirlpool Refrigerator Door Shelf Bin
52159081 Whirlpool Refrigerator Door Gasket
52159073 Whirlpool Refrigerator Door Gasket
6WPW10136232 Whirlpool Handle
6Handle (White)
6WPW10136231 Whirlpool Refrigerator Handle
7WP2156022 Whirlpool Refrigerator Door Trim
8WP2255411 Whirlpool Refrigerator Clip
9WP2182179 Whirlpool Cam Closer
10WP489483 Whirlpool Screw
11WP2206629B Whirlpool Refrigerator Bracket
12WP2213265 Whirlpool Refrigerator Nameplate
13WP2182181 Whirlpool Refrigerator Thimble
14WP489491 Whirlpool Refrigerator Screw
15WP3400012 Whirlpool Refrigerator Screw
