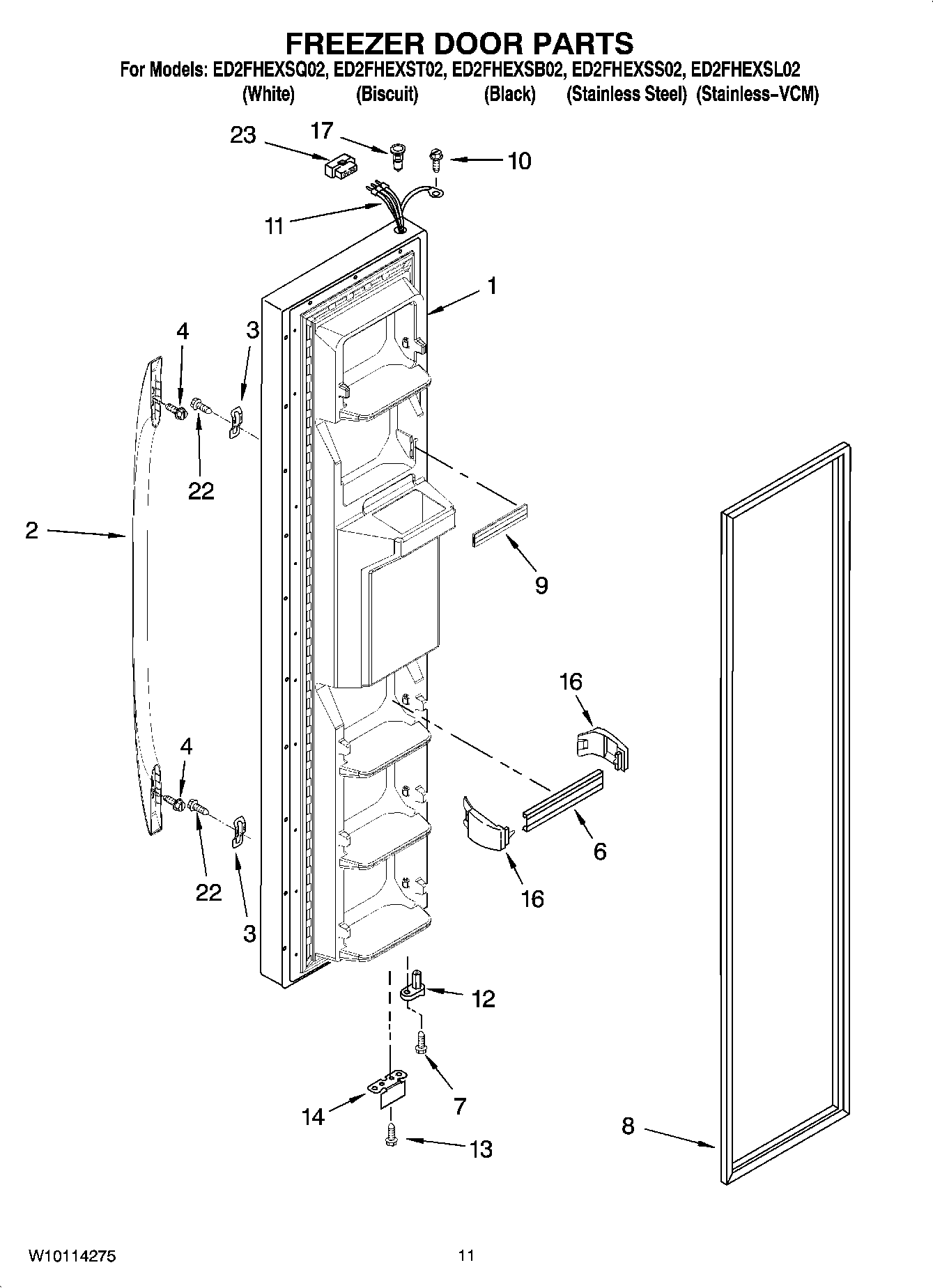

ED2FHEXSQ02 07 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (White)
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (Biscuit)
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (Stainless Steel)
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (Stainless-VCM)
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (Black)
2	W10187086 Whirlpool Refrigerator Handle
2	W10187087 Whirlpool Refrigerator Handle
2	Handle (White)
3	WP2255411 Whirlpool Refrigerator Clip
4	SCREW
6	Trim, Door (3)
7	WP3400012 Whirlpool Refrigerator Screw
8	2159080 Whirlpool Refrigerator Door Gasket
8	2159072 Whirlpool Refrigerator FIP Gasket
9	WPW10307490 Whirlpool Door Trim Assembly
10	WP489128 Whirlpool Refrigerator Screw
11	2311642 Whirlpool Refrigerator Wire Harness
12	WP2182179 Whirlpool Cam Closer
13	WP489483 Whirlpool Screw
14	WP2206629B Whirlpool Refrigerator Bracket
16	WP2195917K Whirlpool Refrigerator Endcap
17	WP2182181 Whirlpool Refrigerator Thimble
17	Thimble, Top (For Stainless Steel Models)
22	WP489491 Whirlpool Refrigerator Screw
23	WP2154473 Whirlpool Refrigerator Connector
