ED2FHEXST05 09 – UNIT PARTS

ED2FHEXST05 09 – UNIT PARTS

Written by

in

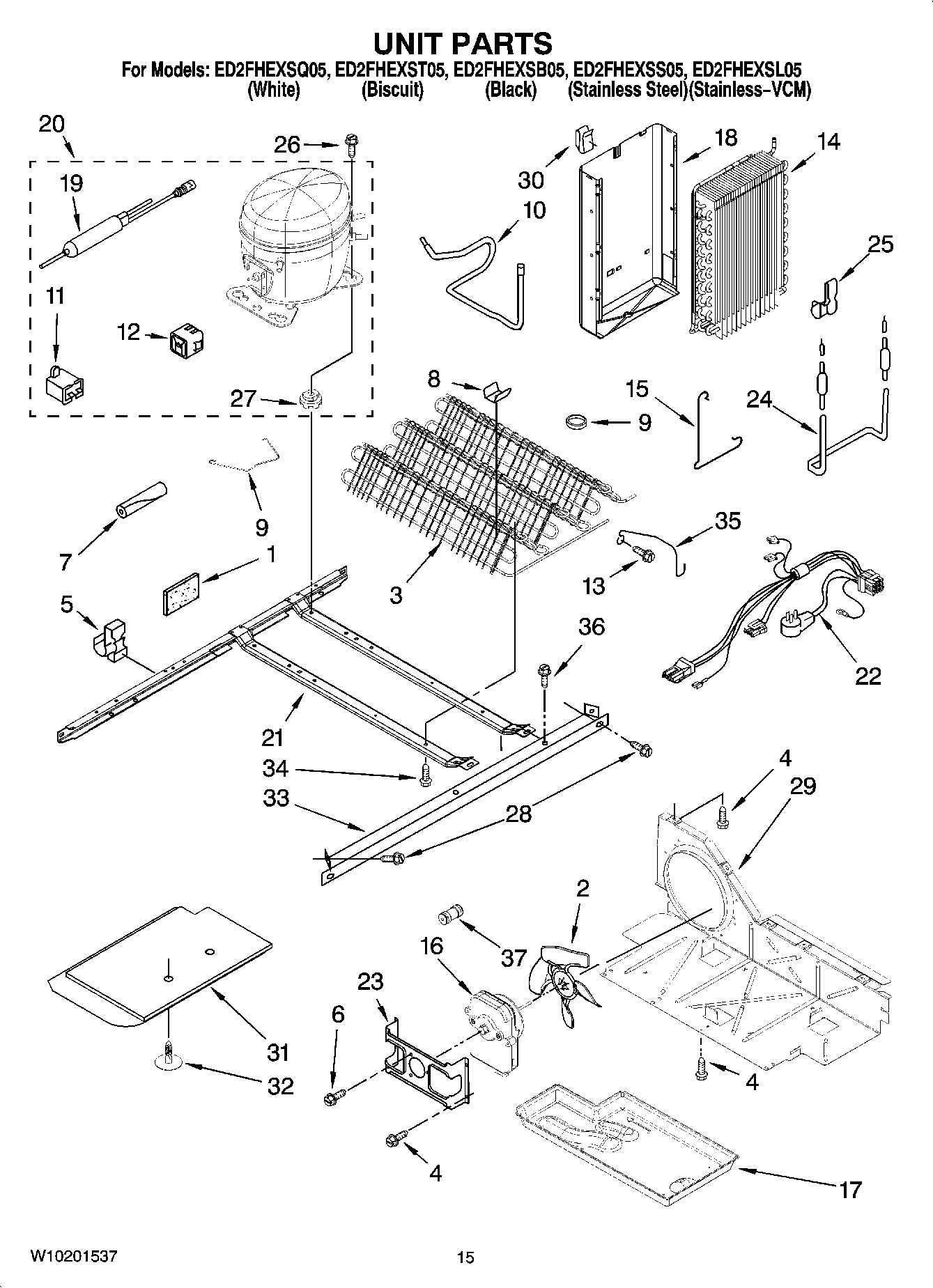

ED2FHEXST05 09 – UNIT PARTS

Products

Position	Product
	VALVE, ACCESS (1/2“)
	WP978025 Whirlpool Refrigerator Valve
	978030 Whirlpool Refrigerator Valve
	978027 Whirlpool Refrigerator Primary Valve
	978026 Whirlpool Refrigerator Primary Valve
	876764 Whirlpool Refrigerator Primary Valve
	Following Parts Not Illustrated and Optional Parts Not Included
	VALVE, ACCESS (5/8“)
	REFRIGERANT CHARGE 5.0 oz. (R-134A)
1	W11553819 Whirlpool Refrigerator Insulation
2	W11458267 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire & Tube
6	WP8533993 Whirlpool Refrigerator Screw
7	SLEEVE
8	W10683556 Whirlpool Refrigerator Clip
9	2212996 Whirlpool Refrigerator Retainer
10	2220642 Whirlpool Refrigerator Tube
11	WPW10662129 Whirlpool Refrigerator Run Capacitor
11	WP65889-4 Whirlpool Refrigerator Capacitor
12	WP2188831 Whirlpool Refrigerator Start Device
13	WP489478 Whirlpool Refrigerator Screw
14	WP2188822 Whirlpool Refrigerator Evaporator
15	Clamp
16	WP2188874 Whirlpool Refrigerator Condenser Motor
17	WPW10614158 Whirlpool Refrigerator Evaporator Tray
18	2217195 Whirlpool Refrigerator Shield
19	WPW10143759 Whirlpool Dryer Filter
20	W10355489 Whirlpool Refrigerator Compressor
21	2304903 Whirlpool Refrigerator Frame
22	WPW10309395 Whirlpool Refrigerator Wire Harness
23	WP2181929 Whirlpool Refrigerator Bracket
24	WP2323197 Whirlpool Refrigerator Heater
25	W11623163 Whirlpool Refrigerator Clip
27	WP4387558 Whirlpool Refrigerator Compressor Grommet
27	876811 Whirlpool Grommet
28	489340 Whirlpool Refrigerator Screw
29	W10896764 Whirlpool Refrigerator Air Baffle
30	Clip, Heat Shield
31	W11115203 Whirlpool Control Panel
32	489396 Whirlpool Refrigerator Clip
33	Unit Mounting Rail
34	W11544659 Whirlpool Refrigerator Screw
35	Guard, Fan
36	WP489427 Whirlpool Refrigerator Screw
37	WPW10334458 Whirlpool Refrigerator Connector
