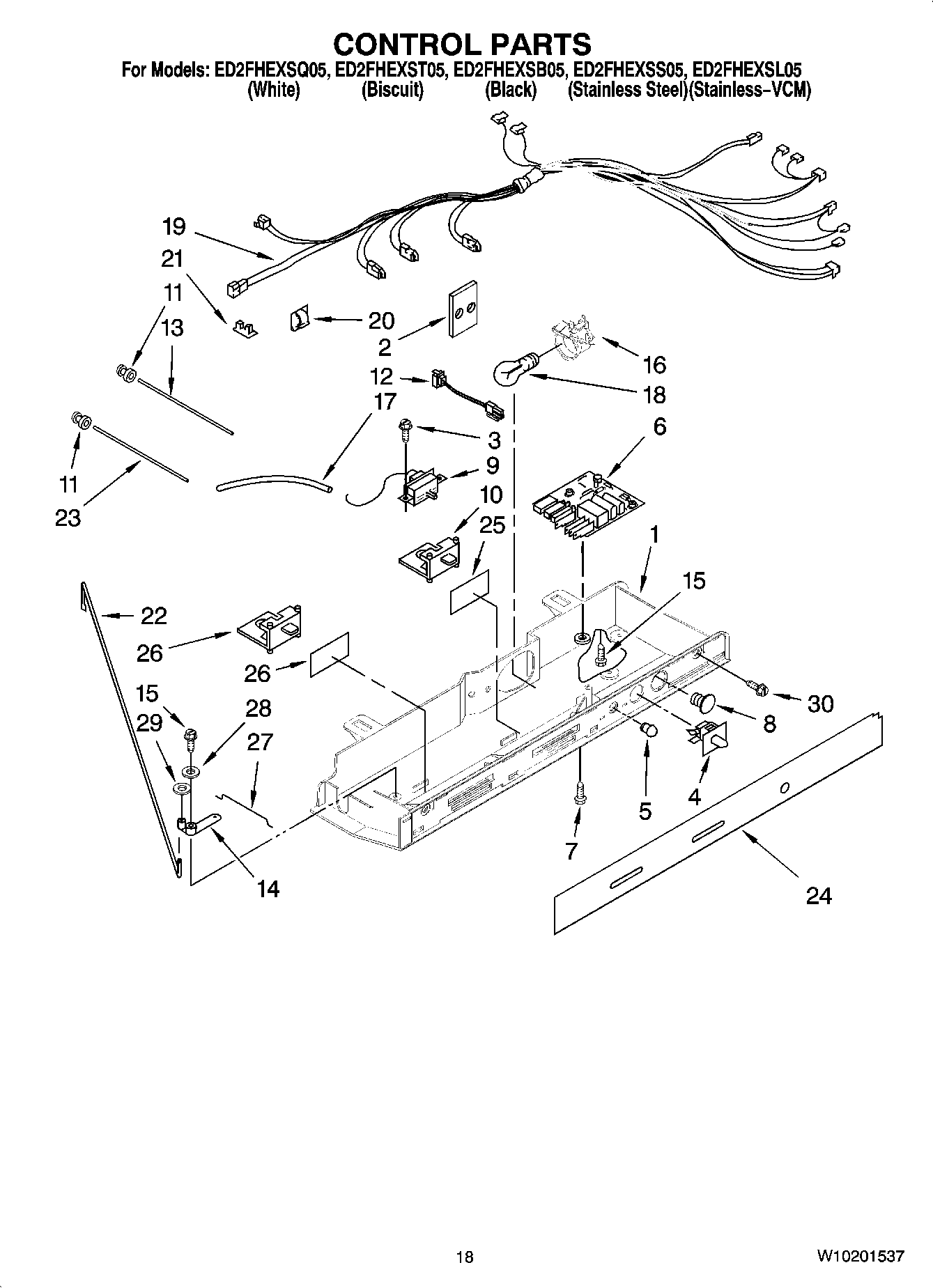

ED2FHEXST05 11 – CONTROL PARTSadmin2025-04-26T09:45:00+00:00ED2FHEXST05 11 – CONTROL PARTS ProductsPositionProduct1Control Box22172931 Whirlpool Refrigerator Shield32006254 Whirlpool Refrigerator Screw4WP2149705 Whirlpool Refrigerator Door Switch5COVER, LIGHT LENS6WPW10366605-includeCORE Whirlpool WPW10366605 Refrigerator Electronic Control Board + Core7489392 Whirlpool Refrigerator Screw8940014 Whirlpool Refrigerator Primary Button Plug9WP2315562 Whirlpool Refrigerator Thermostat102161466 Whirlpool Refrigerator Slide11Grommet, Light Fiber12W10853646 Whirlpool Indicator Light13Fiber Optic142161306 Whirlpool Refrigerator Arm Pivot15627068 Whirlpool Refrigerator Screw164387478 Whirlpool Refrigerator Light Socket17WP2196003 Whirlpool Refrigerator Bar Riser18RANGE ONLY 40W 120V APPL BULB192311632 Whirlpool Refrigerator Wire Harness20WP1115374 Whirlpool Refrigerator Clip21CLIP, WIRING222161308 Whirlpool Refrigerator Rod23Light Bar (FC)24Escutcheon, Control Box25Window262181741 Whirlpool Refrigerator Slide272161307 Whirlpool Refrigerator Rod28489203 Whirlpool Refrigerator Washer29Fastener, Push-On
