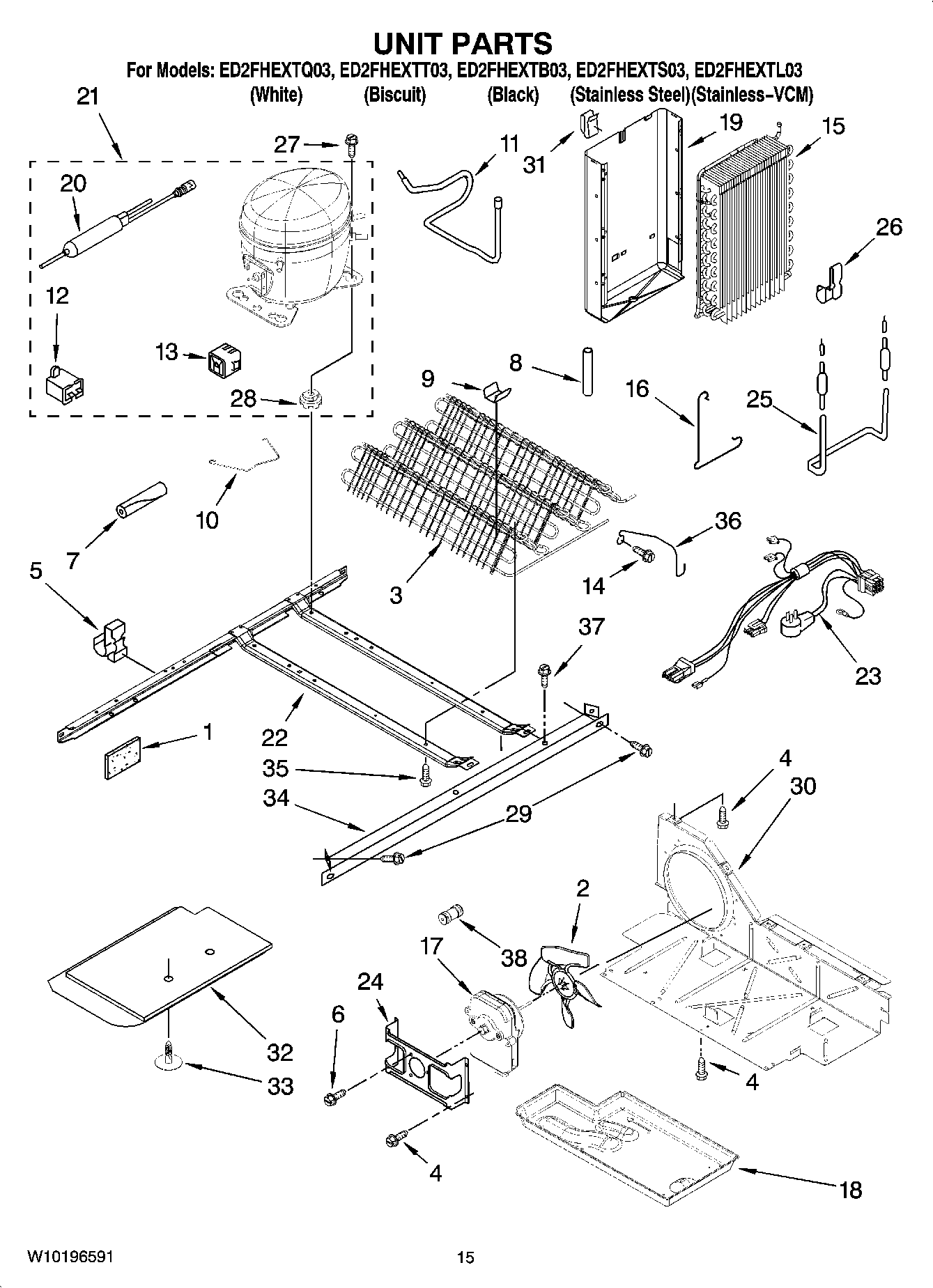

ED2FHEXTL03 09 – UNIT PARTSadmin2025-04-26T09:45:11+00:00ED2FHEXTL03 09 – UNIT PARTS ProductsPositionProductVALVE, ACCESS (1/2``)REFRIGERANT CHARGE 5.0 oz. (R-134A)WP978025 Whirlpool Refrigerator Valve978030 Whirlpool Refrigerator Valve978027 Whirlpool Refrigerator Primary Valve978026 Whirlpool Refrigerator Primary Valve876764 Whirlpool Refrigerator Primary ValveVALVE, ACCESS (5/8``)Following Parts Not Illustrated and Optional Parts Not Included1W11553819 Whirlpool Refrigerator Insulation2W11458267 Whirlpool Refrigerator Fan Blade32324712 Whirlpool Refrigerator Condenser4WP489464 Whirlpool Refrigerator Screw5Clip, Wire & Tube6WP8533993 Whirlpool Refrigerator Screw7SLEEVE8Bushing, Compressor9W10683556 Whirlpool Refrigerator Clip102212996 Whirlpool Refrigerator Retainer112220642 Whirlpool Refrigerator Tube12WP65889-4 Whirlpool Refrigerator Capacitor13WP2188831 Whirlpool Refrigerator Start Device14WP489478 Whirlpool Refrigerator Screw15WP2188822 Whirlpool Refrigerator Evaporator16Clamp17WP2188874 Whirlpool Refrigerator Condenser Motor18WPW10614158 Whirlpool Refrigerator Evaporator Tray192217195 Whirlpool Refrigerator Shield20WPW10143759 Whirlpool Dryer Filter21W10355489 Whirlpool Refrigerator Compressor222304903 Whirlpool Refrigerator Frame23WPW10309395 Whirlpool Refrigerator Wire Harness24WP2181929 Whirlpool Refrigerator Bracket25WP2323197 Whirlpool Refrigerator Heater26W11623163 Whirlpool Refrigerator Clip28W11661108 Whirlpool Grommet28876811 Whirlpool Grommet29489340 Whirlpool Refrigerator Screw30W10896764 Whirlpool Refrigerator Air Baffle31Clip, Heat Shield32W11115203 Whirlpool Control Panel33489396 Whirlpool Refrigerator Clip34Unit Mounting Rail35W11544659 Whirlpool Refrigerator Screw36Guard, Fan37WP489427 Whirlpool Refrigerator Screw38WPW10334458 Whirlpool Refrigerator Connector
