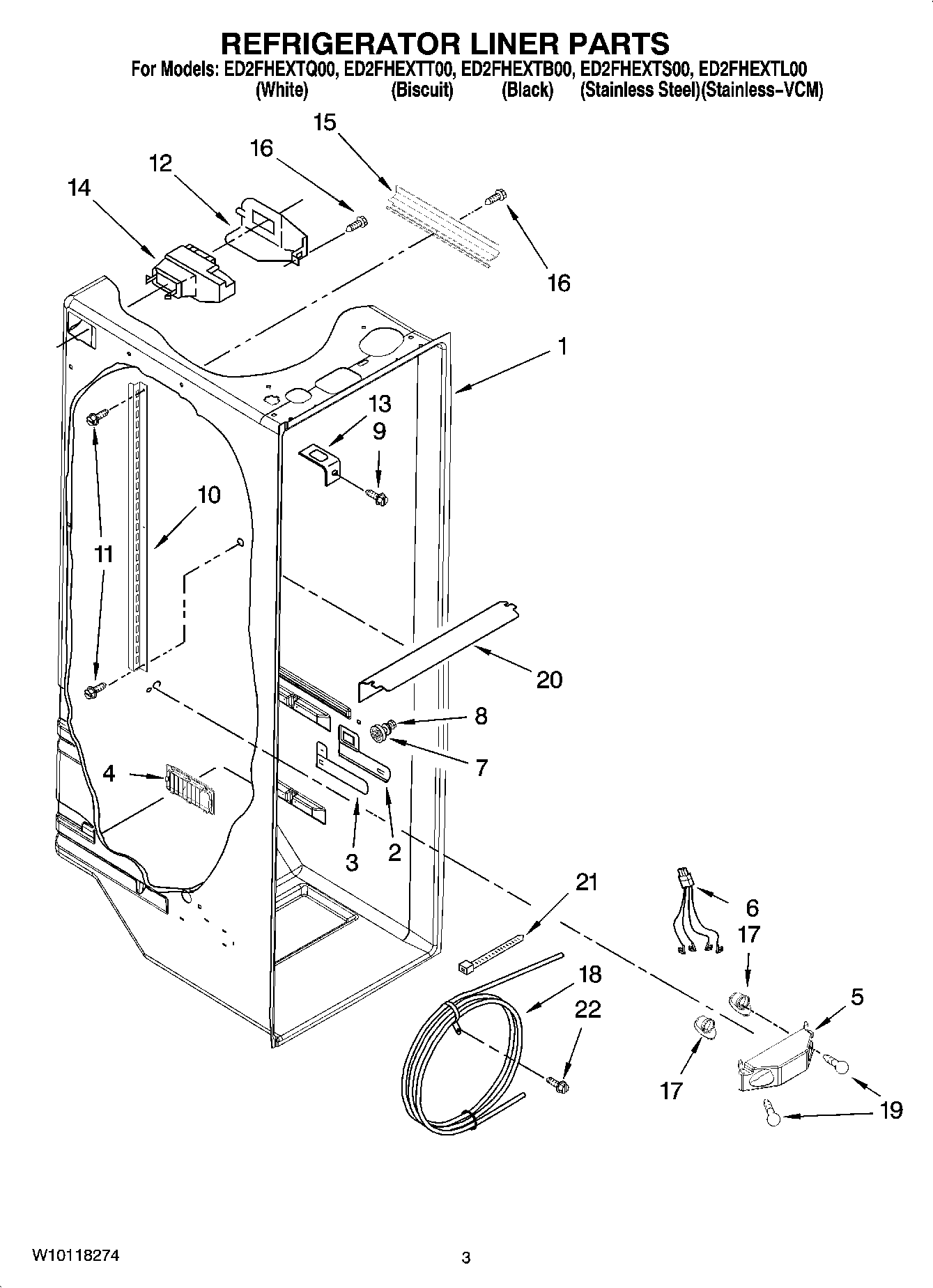

ED2FHEXTT00 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	2194744 Whirlpool Refrigerator Escutcheon
3	2182757 Whirlpool Refrigerator Slide
4	Louver
5	Bracket, Dual Crisper Light
6	2311637 Whirlpool Refrigerator Wire Harness
7	W11223328 Whirlpool Refrigerator Shelf Stud
8	WP3-24004-109 Whirlpool Refrigerator Screw
9	WP488488 Whirlpool Refrigerator Screw
10	Shelf Ladder
11	WP489478 Whirlpool Refrigerator Screw
12	2152019 Whirlpool Refrigerator Cover
13	WP2256085 Whirlpool Refrigerator Retainer
14	WPW10151374 Whirlpool Refrigerator Diffuser
15	2150331 Whirlpool Refrigerator Wire Cover
16	W10759522 Whirlpool Screw
17	4387478 Whirlpool Refrigerator Light Socket
18	WP2256126 Whirlpool Refrigerator Reservoir
19	RANGE ONLY 40W 120V APPL BULB
20	Light Lens
21	WPW10339879 Whirlpool Wire Tie
22	Screw (2)
