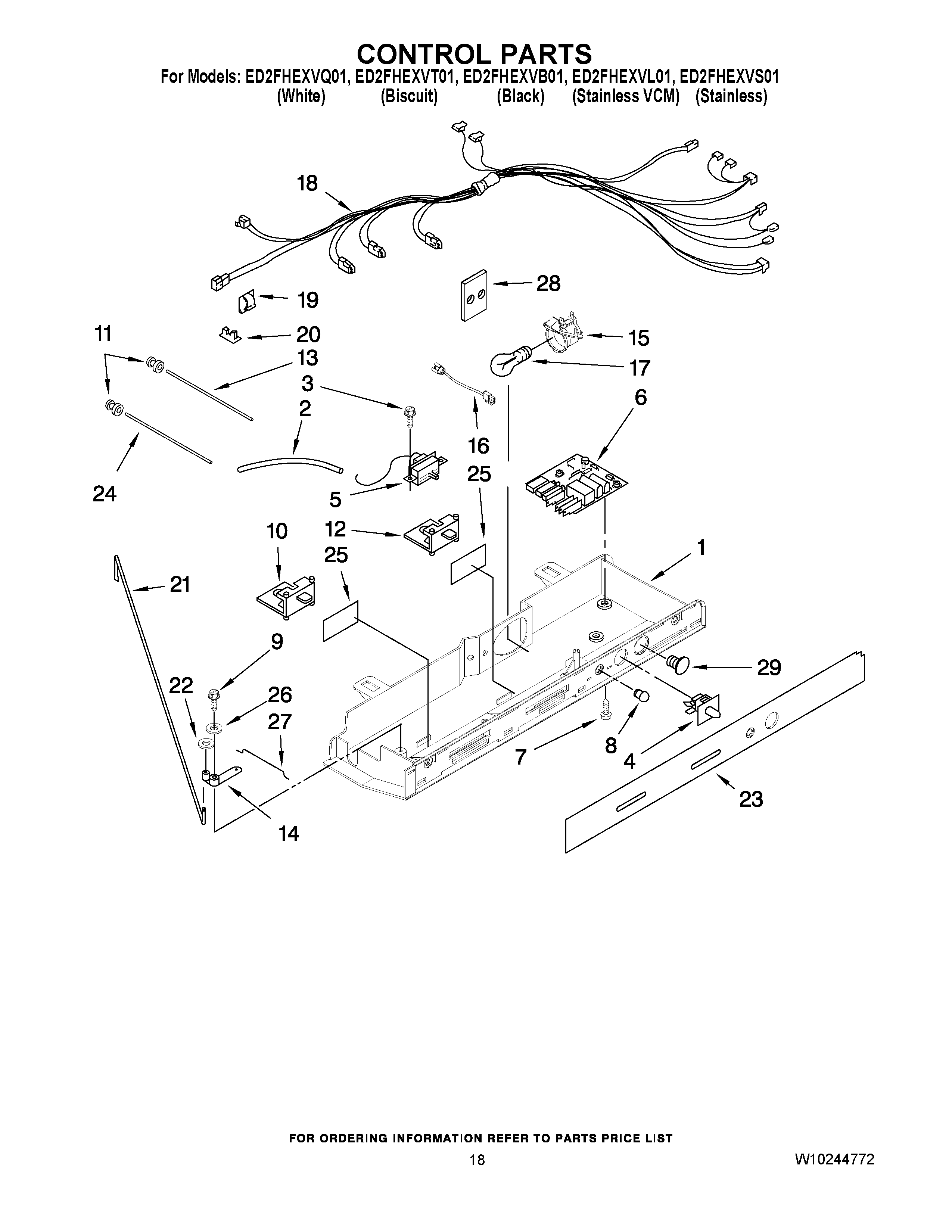

ED2FHEXVB01 11 – CONTROL PARTSadmin2025-04-26T09:46:21+00:00ED2FHEXVB01 11 – CONTROL PARTS ProductsPositionProduct1Control Box2WP2196003 Whirlpool Refrigerator Bar Riser32006254 Whirlpool Refrigerator Screw4WP2149705 Whirlpool Refrigerator Door Switch5WP2315562 Whirlpool Refrigerator Thermostat6WPW10366605-includeCORE Whirlpool WPW10366605 Refrigerator Electronic Control Board + Core7489392 Whirlpool Refrigerator Screw8COVER, LIGHT LENS9627068 Whirlpool Refrigerator Screw102181741 Whirlpool Refrigerator Slide11Grommet, Light Fiber122161466 Whirlpool Refrigerator Slide13Fiber Optic142161306 Whirlpool Refrigerator Arm Pivot154387478 Whirlpool Refrigerator Light Socket16W10853646 Whirlpool Indicator Light17RANGE ONLY 40W 120V APPL BULB182311632 Whirlpool Refrigerator Wire Harness19WP1115374 Whirlpool Refrigerator Clip20CLIP, WIRING212161308 Whirlpool Refrigerator Rod22Fastener, Push-On23Front Cover, Control Box24Light Bar (FC)25Window26489203 Whirlpool Refrigerator Washer272161307 Whirlpool Refrigerator Rod282172931 Whirlpool Refrigerator Shield29940014 Whirlpool Refrigerator Primary Button Plug
