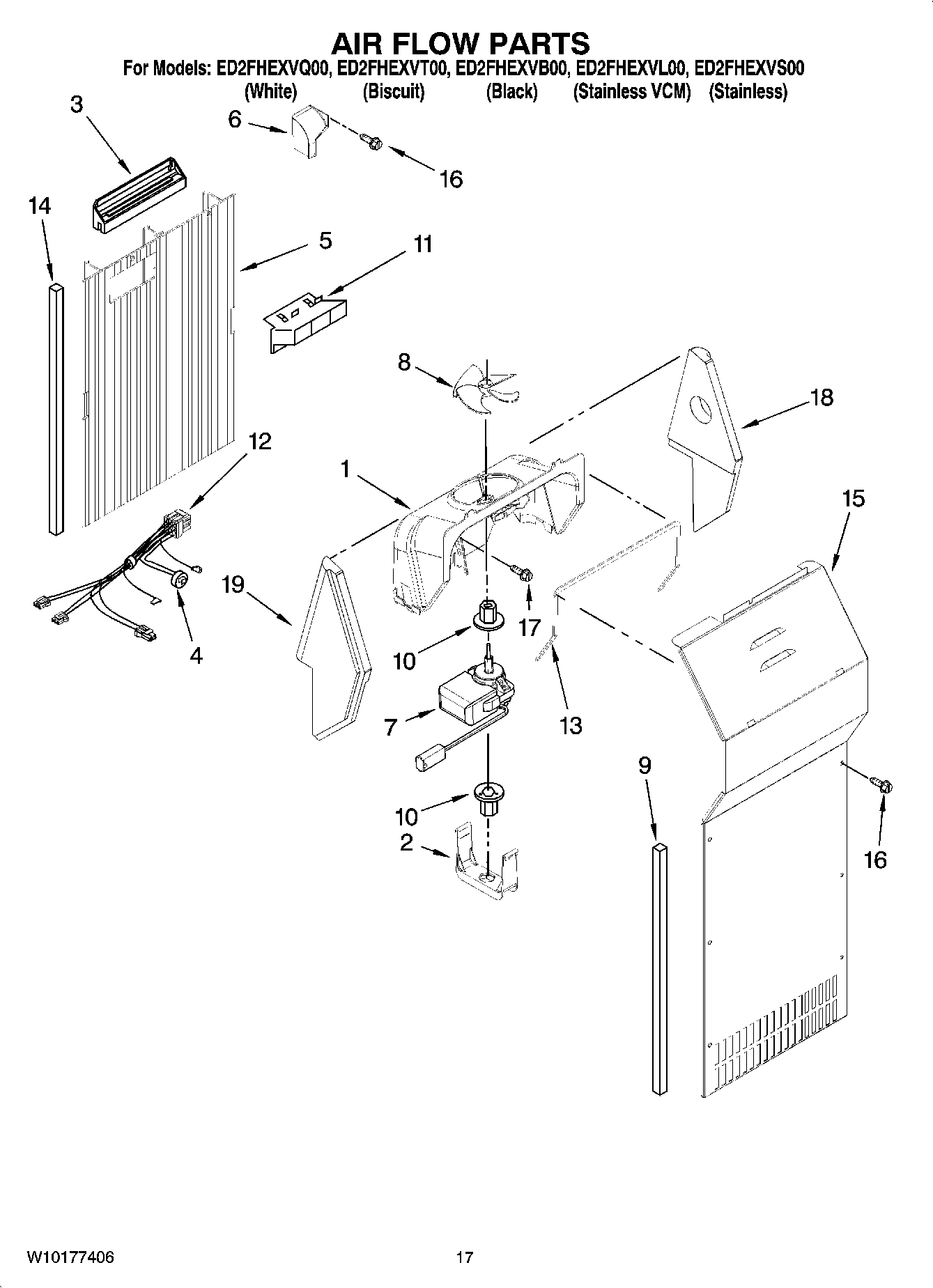

ED2FHEXVL00 10 – AIR FLOW PARTS

ED2FHEXVL00 10 – AIR FLOW PARTS

Written by

in

ED2FHEXVL00 10 – AIR FLOW PARTS

Products

PositionProduct
1W11254898 Whirlpool Refrigerator Scroll Fan
2WP2155590 Whirlpool Refrigerator Retainer
3Diffuser, Air Duct
4WPW10225581 Whirlpool Refrigerator Defrost Thermostat
54388357 Whirlpool Refrigerator Evaporator Cover
6Air Scoop
7MOTOR-EVAP
8WP2169142 Whirlpool Fan Blade
9WP2304241 Whirlpool Refrigerator Gasket
10WP2176759 Whirlpool Refrigerator Grommet
112182146 Whirlpool Refrigerator Duct
122310237 Whirlpool Refrigerator Wire Harness
13WP2155789 Whirlpool Refrigerator Gasket
144388500 Whirlpool Refrigerator Gasket
164389654 Whirlpool Screw
17WP489478 Whirlpool Refrigerator Screw
184388358 Whirlpool Refrigerator Support Bracket
