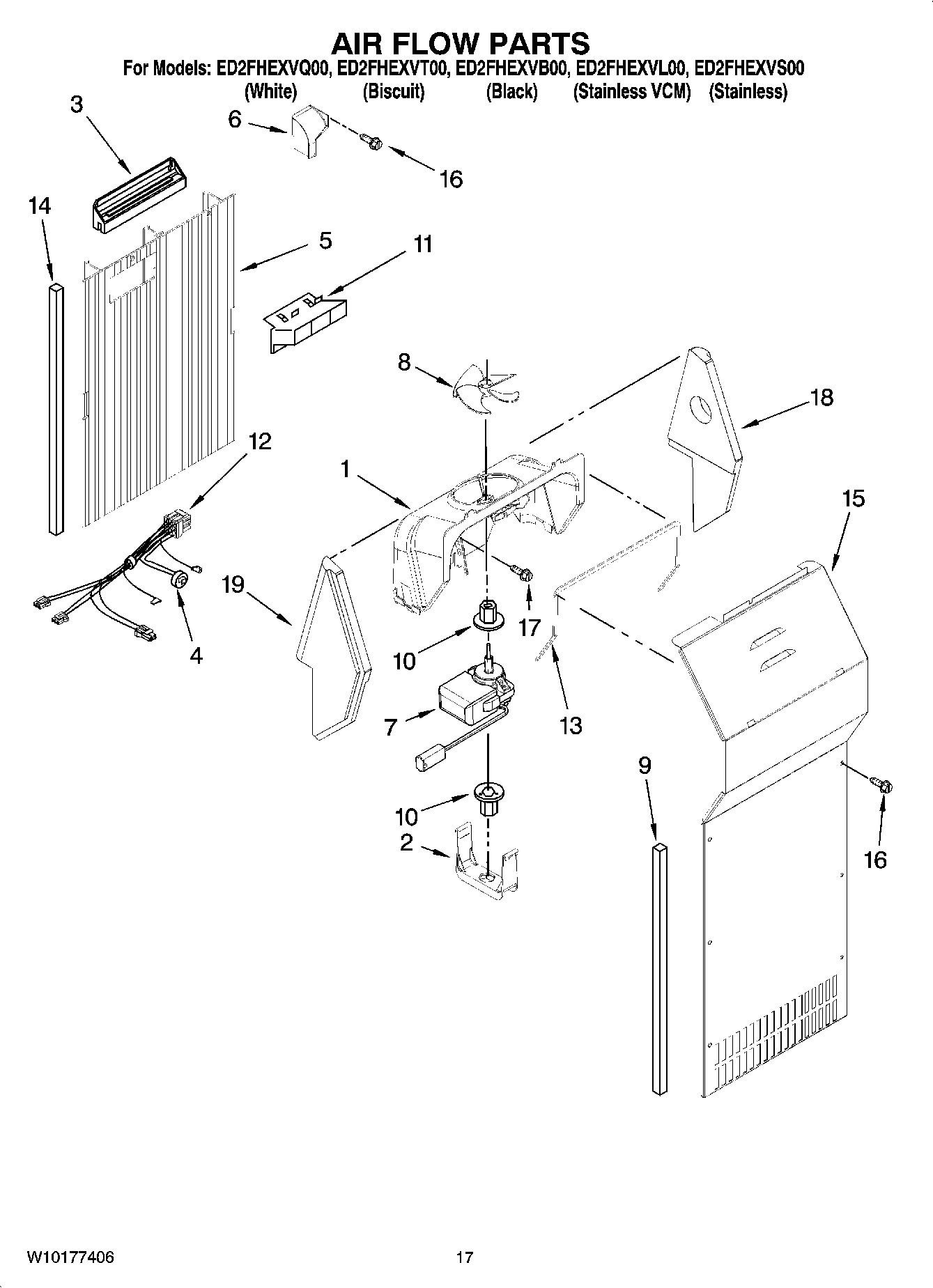

ED2FHEXVQ00 10 – AIR FLOW PARTS

Products

Position	Product
1	W11254898 Whirlpool Refrigerator Scroll Fan
2	WP2155590 Whirlpool Refrigerator Retainer
3	Diffuser, Air Duct
4	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
5	4388357 Whirlpool Refrigerator Evaporator Cover
6	Air Scoop
7	MOTOR-EVAP
8	WP2169142 Whirlpool Fan Blade
9	WP2304241 Whirlpool Refrigerator Gasket
10	WP2176759 Whirlpool Refrigerator Grommet
11	2182146 Whirlpool Refrigerator Duct
12	2310237 Whirlpool Refrigerator Wire Harness
13	WP2155789 Whirlpool Refrigerator Gasket
14	4388500 Whirlpool Refrigerator Gasket
16	4389654 Whirlpool Screw
17	WP489478 Whirlpool Refrigerator Screw
18	4388358 Whirlpool Refrigerator Support Bracket
